Conductix-Wampfler India Pvt.Ltd. Chakan, Pune, Maharashtra

For light energy supply systems with 1 to 3 cables. For applications which do not allow the installation of C-rails. Suitable for indoor and outdoor use. Trolley design: Flat cable trolleys with one or two rollers with a support diameter of 50 and 80 mm [1.97" and 3.15"]. Round cable trolleys with one or two rollers with hook for cable collars or ball joint for cable clips. Ideal control unit trolley. Load capacity: up to 20 kg [44 lb] per trolley Max system length: 100 m [330 ft] Track Configuration: Straight

Conductix-Wampfler jib booms for mounting on an existing facility wall or structural pillar. Flexible usage options include light compressed air or electric tools, welding curtains, etc. either for self-equipping or incl. energy supply system. Applications: Any location where a work area needs to be supplied with energy and tools. Standard for hall usage. Options for mounting the jib booms on existing components Welding surfaces (for jib booms without a wall console) made up of welding plates and an axle support with screws Welding profiles (for jib booms without a wall console) made from a U profile with a welding surface, two consoles, and an axle support with screws. Clamping unit for mounting on support structures (steel or concrete) [only jib booms with a wall console may be used with this type of fixing]

Tool transporters are complete pre-assembled units that allow the use of multiple different tools, among other things. They can also be fitted with tool holders, perforated sheets, storage tubs for keeping small parts in storage containers, etc.. The load-bearing element is a ground cart / trolley. Vertical, collapsible aluminum tubes enable the transporter’s height to be adjusted. The standard equipment includes a rubber profile along the edges of the steel storage tub for collision protection. Based on customer needs, the standard transporter can be fitted with additional components such as perforated plates, a tool holder, etc.

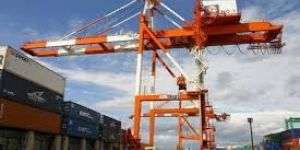

Design and size of this crane type has change dramatically since the introduction of shipping containers 1954. To service ships of 14.000 TEU and more the STS cranes had to become of enormous size and at the same time highly efficient and reliable. In the past STS cranes had to service only a few ships per week where today fully specialized and highly automated facilities

Energy supply systems on square rail (diamond track) are predominately used on circular and curved tracks or in very dusty environments (e.g. in silo works). These systems guarantee a perfect function even on variable levels. Our square rails are galvanized or made of stainless steel (only program 0270). Special versions are available for explosion-proof areas. Suitable for indoor and outdoor use. Trolley design: Flat cable trolleys with support diameters of 50 to 400 mm [1.97" to 15.75"]. Round cable trolleys with u-bolt or ball joint for cable clips. Special designs for special applications. Load capacity: up to 36 kg [79.37 lb] Max. system length: 200 m [650 ft] Track Configuration: Straight, circular and curved tracks.

Conductix-Wampfler spring hose reels are used for the automatic reeling of hoses for the transfer of fluidic and aerially elements to various types of moving equipment. These include movable production equipment, mobile cranes, irrigation or cleaning systems. These machines are mainly track-based and operate in a straight line either horizontally or vertically. Single channel/multi channel swivel can be used for air, water and hydraulic oil transmission. The maximum pressure for swivels is 300bar. According to the customer needs there are also customized solutions available, e.g. double hose reels for hydraulic luffing jibs.

Conductix-Wampfler spring cable reels are used for the automatic reeling of cables on various types of moving equipment. These include hoisting and other material handling devices; e.g. portal cranes, grabs, magnets, lift and working platforms, machinery, mobile cranes, transfer cars or cleaning systems. These machines are mainly track-based and operate in a straight line either horizontally or vertically. For the use on spring driven cable reels Conductix-Wampfler offers a comprehensive range of special reeling cables to transfer low voltage electric power and control signals to the moving machinery.

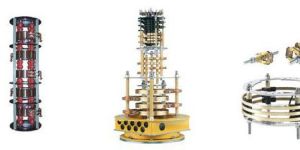

Conductix-Wampfler industrial slip rings provide the solution to transmit electric power and electrical signals from stationary to rotating units in all types of machines like revolving cranes, rotating purifiers in sewage or water treatment facilities, carrousels, manipulators, wrapping machines, radar and antenna dishes, theatre stages, wind turbines as well as in cable reels. Our fully developed and versatile standard program facilitates to assemble slip ring assemblies with any number of poles. Current ratings up to 1200 A and voltages up to 24 kV are possible. The range in size for the slip ring assemblies starts with 30 mm up to 360 mm diameter and lined up to 100-poles.

Conductix-Wampfler industrial slip rings provide the solution to transmit electric power and electrical signals from stationary to rotating units in all types of machines like revolving cranes, rotating purifiers in sewage or water treatment facilities, carrousels, manipulators, wrapping machines, radar and antenna dishes, theatre stages, wind turbines as well as in cable reels. Our fully developed and versatile standard program facilitates to assemble slip ring assemblies with any number of poles. Current ratings up to 1200 A and voltages up to 24 kV are possible. The range in size for the slip ring assemblies starts with 30 mm up to 360 mm diameter and lined up to 100-poles.

The following vibrations are insulated respectively dampened: Mechanical vibrations caused by components of the system (e.g. electro motor) and abrupt impacts Impact sound (sound waves, which impact system components Typical Applications: Machine frame in conveyor technique Frame with drive and control units in general engineering Conveyor systems Machine tools Constructions and quality characteristics:The vulcanization guarantees the highest cohesiveness between rubber and steel.   Rubber to metal rails - metal parts primed, vulcanized to one or two sides Rubber to metal elements - metal parts yellow aodized, vulcanized to one or two sides

Natural caoutchouc rubbers are characterised by their very high elasticity and tensile strength. Other qualities are their notch impact resistance and good abrasive resistance. Among all Elastomers these have the highest mechanical and dynamic load capacities. Natural caoutchouc is not resistant to electrolytic liquids, aliphatic, aromatic and chlorinated hydrocarbons. Oil and natural gas are the basic materials for synthetic caoutchouc. For many years this has been a substitute material for natural caoutchouc, but today this synthetic caoutchouc is used increasingly as first choice for many applications. Today there are a wide range of synthetic caoutchoucs, whose properties allow a variety of applications thereby, establishing the use of rubber technology within modern methods. Moreover, rubber is not merely a chemical substance, but a compound of many different materials. The varied mechanical and anti-corrosive properties can only be achieved by a recipe of several hundred substances. Caoutchouc as a macromolecular material provides the elastic components of the rubber. The mechanical properties, such as breaking elongation, resilience elasticity, strength and continuous breaking strength are dependent on it. The addition of chemicals and other additives and the subsequent vulcanization process make the material useful. The multitude of additive combinations as well as the many physical forms means that for most problems there is a solution.

Natural caoutchouc rubbers are characterised by their very high elasticity and tensile strength. Other qualities are their notch impact resistance and good abrasive resistance. Among all Elastomers these have the highest mechanical and dynamic load capacities. Natural caoutchouc is not resistant to electrolytic liquids, aliphatic, aromatic and chlorinated hydrocarbons. Oil and natural gas are the basic materials for synthetic caoutchouc. For many years this has been a substitute material for natural caoutchouc, but today this synthetic caoutchouc is used increasingly as first choice for many applications. Today there are a wide range of synthetic caoutchoucs, whose properties allow a variety of applications thereby, establishing the use of rubber technology within modern methods.

RTG cranes are operated by onboard drivers. The main function is to load containers from trucks or terminal tractors to the container block and vice versa. Typically RTG’s span 5-8 containers in width and 3-5 in height. Standard RTG cranes are equipped with diesel engines to provide power for travel and lifting. Energy and data transmission to the RTG trolley is provided by festoon systems or energy guiding chains.

Conductix-Wampfler retractors are designed in such a way that retraction force increases smoothly as the cable is extended. As a result, the attached tool is returned to its starting position by the retractor after use, leaving the workbench free for other tools or equipment. An assurance of precision work is provided by the progressive increase in spring force.

Conductix-Wampfler industrial slip rings provide the solution to transmit electric power and electrical signals from stationary to rotating units in all types of machines like revolving cranes, rotating purifiers in sewage or water treatment facilities, carrousels, manipulators, wrapping machines, radar and antenna dishes, theatre stages, wind turbines as well as in cable reels.Our fully developed and versatile standard program facilitates to assemble slip ring assemblies with any number of poles. Current ratings up to 1200 A and voltages up to 24 kV are possible. The range in size for the slip ring assemblies starts with 30 mm up to 360 mm diameter and lined up to 100-poles.

High dynamic Electrified Monorail System in production and single component warehouse..Electrification of Electrified Monorail System.Modification of the EMS doors conveyor due to layout change at the assembly process.

Conductix-Wampfler festoon-systems carry flat and round cables for the transfer of electrical energy and data. Hoses are also carried for the directing of fluids, air or gases. Conductix-Wampfler festoon systems are employed worldwide in steel mills, ports, zinc coating shops and compost preparation facilities, to name a few applications.System Configuration:Perfected technology and standardization in modular design ensure an above-average operational life of the systems, even in the roughest of environments.The Conductix-Wampfler product range covers cost-efficient cable trolleys made of plastic for the most basic applications all the way up to motorized cable trolleys with frequency converter control and patented drive concept for heavy dynamic loads.

  Conductix-Wampfler hose reels can be fitted with hoses for compressed air, water, gas, oxygen, hydraulics, petroleum, oil or grease and are used over a wide range of sites, especially where pneumatic tools are moved, or hoses are pulled out and stored. Our extensive range of hose reels offers a solution for almost every application and improves productivity and safety on the job keeping moving hoses away from the shop floor.

For light energy supply systems with 1 to 3 cables. For applications which do not allow the installation of C-rails. Suitable for indoor and outdoor use.Flat cable trolleys with one or two rollers with a support diameter of 50 and 80 mm [1.97" and 3.15"]. Round cable trolleys with one or two rollers with hook for cable collars or ball joint for cable clips. Ideal control unit trolley.

festoon-systems carry flat and round cables for the transfer of electrical energy and data. Hoses are also carried for the directing of fluids, air or gases. Conductix-Wampfler festoon systems are employed worldwide in steel mills, ports, zinc coating shops and compost preparation facilities, to name a few applications.

For light energy supply systems with 1 to 3 cables. For applications which do not allow the installation of C-rails. Suitable for indoor and outdoor use.Flat cable trolleys with one or two rollers with a support diameter of 50 and 80 mm [1.97" and 3.15"]. Round cable trolleys with one or two rollers with hook for cable collars or ball joint for cable clips. Ideal control unit trolley.

Capacity : up to 20 kg

Equipment carriers are complete pre-assembled units that allow the use of multiple different tools. They are comprised of a ground cart / trolley and additional components based on actual usage requirements. Equipment carriers are available in different lengths and can be fitted with outlets, service units, spring tensioners, etc. based on customer needs. Compressed air or electric tools can be suspended and positioned on spring tensioners or balancers for quick access. Equipment carriers may only be used along a straight line and cannot be used in curves

Conductix-Wampfler device bridges can be used to provide optimum coverage for large work areas. Various models are available in different sizes based on customer specifications. The energy supply is available with electric supply only, compressed air only or a combination of the two. The simple handling of the system is another benefit. Energy supply options for the equipment carrier Compressed air Electric Compressed air and electric Energy supply options for the tool transporter Compressed air Electric Compressed air and electric Energy supply options for turntables Compressed air Electric Compressed air and electric .

Energy guiding chains make it possible to move the interface for access to energy and digital data at high speeds. In addition to horizontal travel, vertical and circular configurations are also possible. The basic chain design makes it possible to configure a mobile system with the optimum length. We offer: Plastic mono-link chains. Low-noise design for especially quiet operation and minimal vibration. Special plastic materials available for low or high temperatures or for use in explosion-protected areas. Duo-link chains with aluminum frame stays for optimum design as a function of customer-specific requirements. Especially high torsional rigidity. Also available with sliders to permit maximum travel speed. Energy Guiding Chains of galvanized or stainless steel for operation in harsh industrial environments. Suitable for applications that call for long travel distances without support. Self-supporting guides permit especially long travel distances with no difficulty.
