Cup Locks Dealers in Pune

Cup lock unique node point connection makes the fastest, safest, and most versatile scaffolding ever designed.Cup lock verticals are manufactured from (YST 240Grade) steel tubes which allow up to 57kn load/leg. the connection point is set at 500/1000mm. the captive mobile cups are made out of malleable cast – iron to ensure rough site handling and welded bottom cups are pressed from high quality steel . loose spigots are used to provide trouble free & stronger connection between verticals All ledgers /horizontals have forge blade ends to fit in the cup of the verticals. STANDERED SIZES FOR VERTICALS(STANDEREDS) AND LOAD TABLE Sr.No Sizes Cups @500c/c 1 3000MM 2 2500MM 3 2000MM 4 1500MM 5 1000MM 6 500MM                 ANDERED SIZES FOR HORIZANTALS (LEDGERS) AND LOAD TABLE Sr.No Sizes Cups @500c/c 1 2500MM 2 2000MM 3 1800MM 4 1500MM 5 1200MM 6 1000MM 7 900MM   Salient Features: Greater flexibility of use.Cup joint gives rigid connection between vertical & horizontal member.Faster erection allows 4 horizontals to be fixed or realized in a single operation Only hammer is required to tighten the top cupAccessories Adjustable Jack suitable for providing an adjustment from 45MM to 500MM length at the top & base

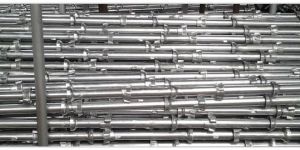

We make sure to offer a wide range of supreme quality Cuplock Verticals/Standards to the customers. These principal load bearing members have seats top and bottom cups. Bottom cups are welded at 500/1000 mm distance position. Besides, top cups can be moved and retained by a fix stop. Verticals are made of 40NB medium/heavy class pipes and drilled to fix spigot joints. Owing to the expertise of our team of experienced professionals, we are able to introduce an exclusive range of Cuplock Vertical. The offered cuplock is manufactured in accordance with industry norms and quality parameters. In the offered cuplock, the heavy cast iron or stainless steel alloy used has been approved and certified. In addition, this cuplock can be built and developed according to the specification provided by the clients. Furthermore, our professionals opt for strict quality inspection made on the cuplock to ensure high performance. .

• Features: Free from defects ,Low maintenance ,Accurate dimensions
• Material: Mild Steel
• Usage/Application: Construction
• Pipe Thickness: 3mm
• Surface Type: Hot Dipped Galvanized

cup lock, Scaffolding Tubes, Pressed Double Coupler, Pressed Swivel Coupler

Cuplock
