Cutter Expert.Co.Ltd Chakan, Pune, Maharashtra

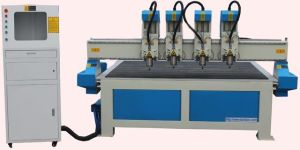

We are offering cnc router center. Parameters: main configuration : control system: syntech control system driver motor : servo motor support rail : reducer inverter : 11kw spindle motor : 9 kw air cooling tool magazine : 10 tool table : vaccume pump dust removal equipent : complete working area : 1300*2500*200mm, 1500*3000*200mm working voltage : 380v feeding speed : 300000mmmin spindle speed : 6000-18000rpm engraving instruction : hpgl, g, eng code features: 1.welded structure by thick profiled steel, stabilized under high temperature, ensures minimum distortio, excellent rigidityand powerful srength. 2. The machine is mainly assemble with precsion parts and components, coupled with the japanese large torgue servo motor, ensures the machine run stable with low noise, fast speed, and high positioning accuracy. 3. Imported aircooling atc spindle, high precision, long service life and stable, stable and reliable in processing for long tie. Application of automatic tool changer, makes the tool changing rapid and accurate. The special tool sensor enables the machine compensate the tolerance of the tool length accuraately. 4. The vaccume table adopts double cavity type adsorption. The use of high strength bakelite board milled in one time ensures high adsorption power. 5. Imported control system, seperated keyboard operation, color lcd screen, more powerful. 6. Strong dust collection system keeps the machine away from dust blowing when working. 7. Auto lubrication system, one touch can finish th eperiodic maintenance application: applicable to the production of cabinate doors, solid wood doors, computer desk, furniture and so on, can be used for engraving, cutting and 3d relief carving of mass mdf in large areas.

Brand Name : Cutter Expert JY-1325/1530

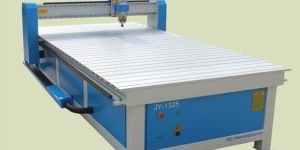

We offer steel structure wood working cnc router jy1325. Paraeters: machine model : steel structure wood working cnc router jy1325 machine type : wood working cnc router working area : 1300mm×2500mm×200mm 1500*3000*2002000*3000*200mm screen precision : 0.0109mm spindle power : 3kw max. Moving speed : 10000mmmin features: 1.welded structure by thick profilrf steel, ensures minimum distortion, excellent rigidity and powerful strength. 2. Y axis with double motor frivers ensures stable and smooth movement. 3.high precision rack gear transmission ensures fast speed and high accuracy. 4. Adopted spare parts of high quality to slow the fault rate. 5.equiped with powerful spindle otor to make sure a powerful cutting and steady movement. 6. Electrical protection device provided, the machine can save the original cutting or engraving work after outage. 7. Vacuume adsorption device is optional. applications: this machine is widely used in advertising signs cutting and engraving, arcylic cutting, door and furniture making industry, solid wood doors engraving, cabinet door engraving, panel-tyoe furniture’s assistance processing. It is also used in wooden craft processing: clock, furniture table, sports goods.

Brand Name : Cutter Expert JY-1325

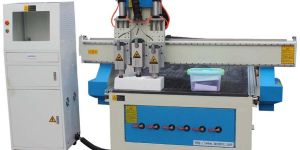

We offer pneumatic three head cnc router. Parmeters: working area : 1300*2500*200mm, 1500*3000*200mm screen precision : 0.0109mm spindle power : 4.5kw*3 working voltage : ac 380v 50 hz max. Travelling speed : 800mmmin spindle speed : 6000-18000rpm feed rate : 200mm tool diameter : ɸ3.175, ɸ 6, ɸ 12 working dictate : hpgl, g code, eng features: pneumatic multi-head mainly used for tool changer during the processing. In the processing time sometime need two or three different tool carving pattern effect, in order to shorten the tool change tie, use pneumatic multi-head is very reasonable process documents for tool change. 1.integrally cast lathe bed under vibration aging tratment, ensures minimum distortion. 2. Double motors and driver of y axis ensures steady movement. 3. High accuracy rack gear transmission ensures fast speed and high accuracy. 4. Optimizeed mechanical and electrical designes with well-selected brands parts miniized breakdown rate. 5. High power spindle, ensures the machine can be greatly cut. 6. Function of continuous working at stop point by power failure. 7. Optional vaccume cleaner. applications: applicable to the production of wood, stereo wave plate processing, cabinet doors, solid wood doors, craft wood doors, paint free doors, folding screen, wood grid , hotel decoration, home decoration, furniture, redwood, european furniture, advertising signs, acrylic cutting and blister molding, wood and alike non- metal material, process window processing, shoe polisher, cabinet and panel, model making, computer desk and panel-type furniture’s assistance processing

Brand Name : Cutter Expert JY-1325/1530

Voltage : AC 380V/ 50 Hz

CNC Machining or Not : Pneumatic Three Head CNC Router

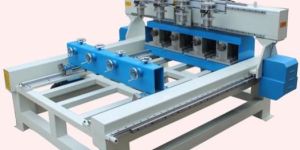

We offer four spindle cnc router. Paraeters: machine model : non-independent four spindle cnc router jy1318 working area : é¸250*1200mm driving system : servo system control system : four axises handle spindle power : 2.2kw working way : high-precision square rach gear working dictate : g code, plt, eng, ug control system : dsp panel nc studio working voltage : ac 220v50hz spindle speed : 3000-24000rpm features: 1.non-independent multi-spindle cnc router is designed for art and craft industry, stair armrest, large-scale seting piece, gurniture legs and roman column. 2. The location of rotator can be adjusted according to the need of working piece. 3. This machine especially is applied to big size or mass production. Because it can work on the sae design with multi-spindle at the same tie, which can gratly improves the working speed and have the work done faster with high accuracy. 4. This machine, which is economical and substantial, can make mass production with high precision and good quality to save your time and cost

Brand Name : Cutter Expert JY-1318

Voltage : AC 220V/50Hz

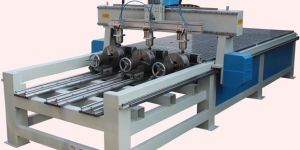

We offer ultifunction cnc router machine. Parameters: machine model : multi-function cnc router jy 1340 machine type : wood working machine for surfae and 3d engraving machine character : non-independent three spindle cnc router working area : 1300mm×4000mm driving system : servo motor spindle power : 1.5kw2.2kw max moving speed : 20000mmmin working dictate : g code, plt, eng, ug control system : dsp panel nc studio working voltage : ac220v50hz (330v) spindle speed : 3000-24000rpm features: 1.multi-spindle and multi-function cnc router is a professional machine for art and crafts, stairs armrest, furniture legs, roman column, flat panel furniture, hollow texture and embossment. 2.this machine especially is applied to big size or mass production. Because it not onlu can work on the same design with multi-spindle at the same time, but also can do surface and 3d engraving on one working stable. 2. This machine can gratly improve working speed and have the work done faster with high accuracy, which is economical and sbstantial, can make mass production with good quality to save your time and cost.

Brand Name : Cutter Expert JY-1340

Voltage : AC220V/50Hz (330V)

We offer laser engraving machine. Parameters: model name : laser engraving and cutting machine (regular)jy1325 working size : 1300*25001500*3000mm laser type : co2 sealed-off glass laser tube laser tube brand : reci laser tube laser power : s2(reci)=(90-100)w supported format : plt,dst,dxf,dwg,al,las support autocad, corel draw & software output directory. Drive : stepper motor wavelength : 10.6 um control system : digital offline control system engraving speed : 0-1200mms cutting speed : 0-600mms minimum letter size : chinese: 1.5mm, english: 1mm machine power : ac 200v110v±10% 50hz60hz reposition accuracy : ≤±0.01mm cooling system : watercooling system environment : temperature: 0-45 ºc humidity 5%-955 features: 1. Adopting imported ball screw and square rails enable high processing accuracy. 2. 3 phase motor ensures high speed cutting and good performance. 3. Smoke pipe moving with beam for better exhausting result. 4. Separate control box-electric part protectio, anti-interference and extended service life. 5. Foot wheels and level base enable the machine flexibility and stability. application: 1.advertising industry: engraving and cuttin on advertising materials such as acylic, double color board and so on. 2.leather and clothing industry: engraving and caarving on lether and fabric. 3.art and craft industry: engraving and cutting on paper, wooden packing box and bamboo craft. Leather shell avory and so on. 4. Model industry: cutting on architechtural model, aviation and navigation model, and wooden toys. 5. Packing industry: engraving and cutting of printing rubber plate, and cutting of sandwich plate and die board cutting. 6. Decorative industry: engraving and cutting on electric products and relevant materials.

Brand Name : Cutter Expert JY-

Application : Advertising industry, Leather and Clothing Indudtry

Cutting Speed : 0-600mm/s

Graphic Format Supported : PLT,DST,DXF,DWG,AL,LAS Support AutoCAD, Corel Draw output directory

Laser Type : CO2 sealed-off Glass Laser Tube

We are offering foam wood mold router parameters: machine model : foamwood mold jycnc router stroke range : x axis 2000mm y axis 400mm z axis 1200mm reposition precision : ±0.025mm structure : heavy duty seamless steel structure x,y,z structure : x,y helical rack and pinion, z tbi 3205 ball screw max idle speed : 30000mmmin spindle rate : xingchen 7.5kw atc spindle spindle speed : 0-12000rpmmin motor type : 1800w three pieces yaskawa servo motor for x,y axis. One piece 1300 w yaskawa servo motor for z axis comand code : g code, hpgl, u00, mmg, plt working voltage : ac 380v 3 phase 50-60hz operating system : syntec control system collect : bt40 diameter of cutter : 3.175- - 32mm guide rail : hiwin 30mm square guide rail product highlight: this machine is used for engraving large non-metallic mold, especially automotive foam old, wooden ship mold, aviation and train wood mold. And wood mold casting, food mold (e.g moon cake mold) and other mold making. features: 1.large scale three dientinal surface modeling. 2.three axes adop taiwan brand linear uide rail with high precision. 3. Z axis adops imported germany or taiwan made ball screw, so high precision and long life time using are assured. 4. X and y axis is transmitted by helical rack and pinion. This makes the machine work faster and has larger cutting force compare with ball screw transmission. 5. Intelligent processing cross border protection, to prevent the mechanical impact due to excessive design documents processing. 6. Syntec control can control the processing speed, idling speed, the cutting speed, greatly improving the quality of processed product and processing efficiency. 7. Heavy hard steel lathe body to keep working stability. 8. High soft and famous brand electric cables with high abrasion, fold, high temperature, acid or alkali resistance.

Country of Origin : India

Type : Foam Molds

Brand Name : : Foam/wood Mold JYCNC Router

We are offering fiber cutting machine. Parameters: model : jy1325jy1530 working area : 1300*25001500*3000mm laser type : standard raycus (optional imported optics fiber laser generator) laser wavelength : 1070 + 10nm laser output power : 300w500w1000w cutting thickness : 0.2-3mm 0.2-4mm 0.2-6mm max cutting speed : 30mmin position accuracy : < +0.04mm minimum line width : >0.12mm cooling system : water cooling driving system : japan yaskawa servomotor and drivers working voltage : ac200v110v+ 10% 50 hz transmission : x axis with imported ball screw, y axis with imported square rail and gears. Features: 1.high – power fiber laser generator. 2.high precision cnc fiber cutting machine rack and pinon, linear rails and cnc transmission system. 3.mainly used for cutting and formatting of carbon steel plate, stainless steel, aluminum and other metal materials. Suitable materials & industrial applications: mainly suitable for cutting carbon steel, silicon steel, stainless steel, aluminum alloy, titanium alloy, galvanized sheet and other sheet metal. It can be applied in variety of industries, such as medical microelectronics, spectacle frame, metro or auto accessories, mechanical parts, arts and craft, hardware, advertising etc.

Brand Name : Jy1325/JY1530

We offer co2 laser engraving cutting machine. Parameter: working size :1300×900 1200×800 1000×600 600×400 laser type :dc glass laser tube(co2) wavelength :10.6 um laser power :40w, 60w, 80w, 100w, 130w, 150w engraving speed :0-1200mms cutting speed :0-600mms reposition accuracy :≤ ± 0.01mm cooling system :water cooling system control system :digital offine control system drive :stepper motor supported format :plt, dst, dxf, dwg, al,las support auto cad and software :coral draw output directory minimum letter :chinese:1.5mm english: 1mm size working voltage :ac 200v 110v ± 10% 50hz60hz machine power :≤1500w working environment :teperature: 0-45 ºc humidity 5%-95% motorized up & down :high precision ball screw transmission, max. Lifting working table 300m features: 1. Practical model for primary customers. 2. User- friendly intrface, easy to master for operation. 3. Parallel light bea design, lessen path deviation, high performance, easy adjustment. 4.alluminum alloy knif stripworking table, ensure high quality cutting. 5.digital offline control system, usb available, rd and lettro alternative. 6. Optional red light positioning system and waater chiller for better work performance. application: 1.suitable for small area craft processing. Engraving various grafics and letters on double color board, wood, bamboo, organic glass, leather etc. 2.sutable for engraving non metal materials, all kind of stamps, like horn, wood, red plastic, acrylic etc. 3. Carve name, model, label, design and date on electronic parts. 4. Cut acrylic and organic glass.

Brand Name : Cutter Expert JY-1390

Application : small area craft processing, Grafics engraving, stamps engraving

Cutting Speed : 0-600mm/s

Graphic Format Supported : PLT,DST,DXF,DWG,AL,LAS Support AutoCAD, Corel Draw output directory

Laser Type : DC glass laser tube(CO2)

We offer cnc wood working machine. Parameters: machine model : four-spindle woodworking machine working area : 1300*2500*180mm 1600*2500*180mm motordrive : stepper motor spindle power : 1.5kw(2.2kw optional) movinng mode : square rail, gear rack moving speed : 12000mmmin working dictate : g codepltengug control system : dsp control system(handle control optional) working voltsge : ac380v(optional 220 v) spindle speed : 24000rpm tool diameter : ɸ3, ɸ4, ɸ6,(ɸ12) applications: 1.it is widly used in relief processing furniture engraving and other woodworking processing 2.multi spindle can work on the same pattern, which greatly improves the processing speed and save the cost. 3.it can work not only on flat surface but also cylider on the same operation flat.

Brand Name : Cutter Expert JY-1625

Voltage : AC 380V (220V optional)

Warranty : 1 Year

We offer cnc router machine. Parmeters: machine model : jy-1325 steel vaccue system cnc router working area(x*y*z) : 1300*2500*1801500*3000*1802000*3000*180mm screen precision : 0.0109mm spindle power : 3.0 kw working voltage : ac 380v50hz moving speed : 20000mmmin spindle speed : 3000-24000rpm feeding high : 200mm tool diameter : ɸ3.175, ɸ4, ɸ6, ɸ12 working dictate : hpgl,g code , eng features: 1.welded structure by thick profile steel, stabilized under high temperature, ensures inimum distortio, excellent rigidity and powerful strength. 2.double motor and driver of y axis ensures steady movement. 3. Rack gear transmission ensures fast speed and high accuracy. 4. Optimie machnical and electrical design with well-selected brand parts minimized breakdown rate. 5. High power spindle, working powerful with low noise, guarantees long time mass processing. 6. Funtion of continuous working at stop point by power failure. 7. Vacuume adsorbtion device is optional. application: 1.efficient manufacturing of wooden products advertising billboard, acrylic cutting, letter mold forming, mass cuttinng. 2.also the machine can engrave iron, brass, aluminum, plastic, and wood boards and the other non-metal materials.

Brand Name : Cutter Expert JY-1325

Voltage : AC 380V

Warranty : 1 Year

We are offering cnc marble engraving machine. Parameters: machine model : cnc marble engraving machine jy9015jy1325jy1825 working area(x*y*z) : 900*1500*3001300*2500*3001800*2500*300mm driving system : stepper motor spindle power :3kw transmission system : high precision rack gears, square guide rail moving speed : 20000mmmin working dictate : hpgl, g code, eng code control system : dsp control system working voltage : 220v 380v spindle speed : 3000-24000rpm screen precision : 0.0109mm applications: it can work on the marble, granite, artificial stone, tombstone, tile, glass, and wood. It can do 2d sculpture, 3d relief, line engraving, cutting with chamfering of edge, drill etc.

Type : JY9015/JY1325/JY1825

We offer cnc laser cutting machines. Parameter: working area : 1300*2500mm 1500*3000mm control system : digital offline control system working environment: temperature: 0-45c, humidity: 5%-95% non condensate drive system : servo motor, high precision ball screw laser power : 150w 260w voltage : ac 220v 5060hz. Cooling system : industrial water cooling accuracy : 0.05mm energy adjustment : 0-100% stepless control, inside software 0-100% adjust co2 sealed laser type laser tube minimum laser size : chinese: 3mm, english: 2mm, 0-600mms cutting speed supported formats : plt, dst, dxf, bmp, al, support auto cad, corel draw output directory features: 1. Square rail and ball screw transmission enable the machine high precision and stable performance. 2. Professional industrial circulation cooling system with automatic alarm system. 3. Optical components adopt imported u.ss 26 mirrors and znse focus lens for high quality cutting effect. 4. Constant optical structure to fix the laser path ensures stable beam transmission. 5. Japanyaskawa and panasonic servo motor alternatives. applications: metal cutting industry: cutting stainless steel, carbon steel, application to sheet metal structure, high and low voltage electrical cabinet making, advertising signs, metal crafts, mechanical parts. Non metal industry: leather processing industry: leather, fabric, carved hollow. Art and craft industry: paper cutting, wood, bamboo products, shell ivory. Advertising industry: acrylic engraving and cutting, cutting and engraving of double-color plate and other advertising material. Packing industry: printed rubber plate engraving and cutting, plywood cutting and laser cutter template cutting. Decoration industry: electrical and electronic industry materials engraving and cutting.

Brand Name : Cutter Expert JY-1325

Voltage : AC 220V 50/60Hz.

Warranty : 1 Year

We are offering advertising plasma cutter. Parameter: model : jy1325jy 1530 working area(x*y) : 1300*2500mm 1500*3000mm working material : iron, steel, aluminum sheets, galvanized sheets, titanium plates plasma power : 60a or 100 a cutting thickness : (60a)0.5-6mm, (100a) 0.5-10mm cutting speed : 0-8000mmmin consuming power : 8.5kw input voltage : 3 phase 380v power frequency : 50hz files transfer : usb interface arc : untouched arc striking features: 1.light beam design, good rigidity, light weight anfd tiny moving inertia. 2.y axis adopt double otor with double drivers. 3.xyz axis equipped with roud rail, moving smoothy of high accuracy. 4.high cutting speed, high accuracy and low cost. 5. Advanced cnc control system, auto arc, arcing success rate over 99%. 6. Support g file of ucancam, artcam, type3 software. Also support dxf files of autocad by transfer software, control system supports u disk file transfer. Application: widly used foe iron, steel, aluminum sheets, galvanized sheet, titanium plates cutting.

Brand Name : Cutter Expert

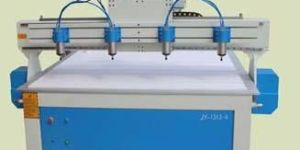

We are offering advertising cnc router. Parameters: machine model : advertising cnc router jy122412181212 jy 6090 working area : 1200*2400*100mm1200*1800*10mm1200*1200*100mm driving system : stepper driver spindle power : 1500w 2200w working way : square side rail screw working speed : max moving speed 600mmmin working dictate : g code, plt, eng, ug control system : dsp control system working voltage : ac 200 v 50 hz spindle speed : 3000-24000rpm tool diameter : ɸ3, ɸ4, ɸ6, (ɸ12) features: 1.integrally cast lathe bed, robust and non distortion. 2. Three axis transmission with imported ball screw ensures the high accuracy and long life. 3. High power spindle, brushless, water cooling, working vigorously with low noise, guarantees long time mass processing. Applications: advertising industry: advertising label and logo, acrylic cutting and blister moldeing, multi ad. Material and decoration products processing . *mold industry: engrave on material like brass, aluminum, and iron to make metal mold. It can engrave on the artificial marble, gravel, plastic board, pvc pipes, wood etc. *other industry: engrave all kinds of image engraving and relief engraving. It is widely used in art and craft industry.

Brand Name : Cutter Expert

Power : 500W/ 2200W

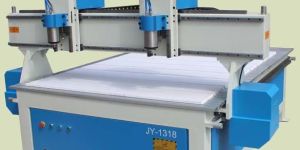

We are offering acrylic letter cutting machine. Parameters: model : jy12121325m working area(x,y,z) : 1200*1200*150mm 1300*2500*200mm xy feeding speed : 30000mmmin z feeding speed : 15000mmmin transmission system : taiwan tbi griding grade ball screw control system : nc studio spindle motor : 5.5 kw water cooling spindle spindle speed : 24000rpm driving system : double layer vacuume absorption system fixing method : double layer vacuume absorption system tool magazine and tool no : circular tool magazine, 8 tool weight : 1750kgs working voltage : 3 phase 380v features: 1.adopts thick steel pipe welded lathe bed, the special heat-treatment ensures minimum distortion, excellent rigidity and vigorous strength. 2. High precision tbi gridding grade ball screw transmission and japan yaskawa servo system ensures high accuracy, fast speed and good stability. 3. 5.5kw water cooling spindle. Korea inported tool shank ensures the spindle performance. 4. Original nc studio control system with hand wheel, convenient for positioning operation. 5. Sprayer lubrication system and automatic lubrication system optional. Applications: mainly used for acrylic mini letter and panel cutting.

Type : CNC machine

Brand Name : JY1212/1325M
