Dial Indicator Stand Dealers in Pune

• Height of Column (mm): 300
• Base Size (mm): 250 L x 45 W

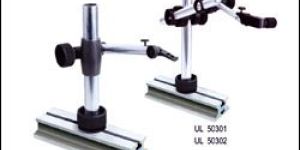

HEAVY DUTY DIAL INDICATOR STAND Column can move to & fro to full base length. Fine adjustment for accurate setting. Both faces of base can be used.

• Extension: 350 mm 350 mm 350 mm
• Extension Arm: 25 mm 25 mm 25 mm
• LENGTH OF BASE: 300 mm 300 mm 300 mm
• WIDTH OF BASE: 100 mm 100 mm 100 mm
• DIAMETER OF COLUMN: 40 mm 40 mm 40 mm
• HEIGHT OF COLUMN: 300 mm 500mm800m

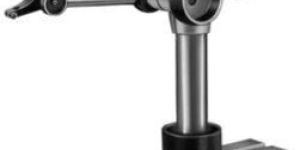

This extra heavy and ruggedly made universal testing stand is used wherever the highest accuracy is required in using a comparator. It can be used in many different ways; on the surface plate in testing parallel surfaces of work pieces on machine tools for setting up pieces to be machined with reference to already existing surfaces or for inspecting mounted pieces for run-out etc. The surfaces of the H-formed base, the column and the extension arm are high precision ground. The column can be moved and clamped in any position of the base with a knurled nut. The extension arm, which can be adjusted in height moved lengthwise and swiveled is sufficiently rigid that vibrates during the measurement even with the fullest extension are at a minimum. The base of the indicator stand is made of steel or cast iron.

• Brand Name: Unity
• Material: Stainless Steel
• Vertical Travel of Holder: 150mm
• Fine Adjustment Range: 2mm
• Minimum Order Quantity: 1 Piece
