Digital Timers Dealers in Bhosari, Pune

We are offering astronomical street light timer. Timeline astro is a astronomical timer. It is an advanced timer. It functions as on & off at dusk & dawn respectively as per gps co-ordinates set in the timer. Either user can set those coordinates or we can supply the timer factory set for your desired gps location. . User can set current date, month & year in dd:mm:yyy format. Also the user can set the current clock time in hh:mm format. In fact, those settings come by default factory settings as per ist (indian standard time). Once those two parameters are set, your timeline astro timer is ready to function.

• Feature: Works on Real-Time-Clock + GPS Coordinates.Manual bypass, Manual offsets in automatically calculated astronomical ON TIME & OFF TIME. Multifunction single key operations.
• Weight: 0.120 kg
• Applications: Parking lots Lights, Street Lights , Corridor Lights , Garage Lights ,Garden Lights, Collages, Housing Complexes .

• Out put: 2 C / O relay contact 5 Amp / 230VAC
• Supply: 230V I 11 OVAC +/- 10%, 50 Hz
• Range: 0-99991 Hr. sec / min

Sensorless Timer with High Low Protection. Prime function is to operate On & Off Electric Lights in common areas AUTOMATICALLY. Depending upon your local Sunrise and Sunset timings variations throughout the year. Astronomical Timer Mode: Keeps track of each day, Sunset and Sunrise time and takes the smart control of light depending upon Sunset and Sunrise times and saves Power. 4 Years battery backup, memory backup against power failures. Timeline Astro is an astronomical timer. It is an advanced timer. It functions as ON & OFF at DUSK & DAWN respectively as per GPS Co-ordinates set in the timer. Either user can set those coordinates or we can supply the Timer factory set for your desired GPS Location. The user can set current date, month & year in DD: MM: YYYY format. Also, the user can set the current clock time in HH: MM format. In fact, those settings come by default factory settings as per IST (Indian Standard Time). Once those two parameters are set, your Timeline Astro Timer is ready to function. Timeline Pro is a Pre-settable Timer. It is an advanced timer. It functions as ON & OFF exactly as per time set/ programmed by the user. User programmed ON-TIME & OFF-TIME would be followed every day irrespective of seasonal transitions resulting in Sunrise – Sunset Timings. The user can set current date, month & year in DD:MM: YYYY format. Also, the user can set the current clock time in HH: MM format. In fact, those settings come by default factory settings as per IST (Indian Standard Time). Once those two parameters are set, your Timeline Pro Timer is ready to function. Note : Seasonal changes in Sunset – Sunrise Timings are not considered by this model. So every transition of season i.e in every 45 days, you will have to update your settings (On-Off Time Settings) depending upon changes in Sunrise – Sunset Timings. Applications: Street Lights, Garden Lights, Basement Lights, Staircase Lights, Parking Lights, Lights in Lobbies & Corridors, Hoarding Lights and so on. Functioning: (Astro) The internal software looks at the current date and GPS Location Programmed and automatically decides applicable ON TIME and OFF TIME of the lights. This way, it takes care of seasonal variations in Dusk – Dawn (Sunset – Sunrise) timings and calculates exact time for Lights ON & Lights OFF. This happens every day in a gradual manner throughout the year. As the earth passes through the same orbit around the Sun, this timer functions exactly the same every year. This way, seasonal variations in Sunrise and Sunset Timings are automatically taken care of. This gives a relief to the user from frequent adjustments of On Time and Off Time when the season changes from Summer to Monsoon, Monsoon to Winter & Winter to Summer. In short, the active slot (On to Off) of this timer operation is “Automatically and Dynamically” decided by internal Software. The user doesn’t have to bother with adjusting the settings after installation. Functioning: ( Pro): The internal software looks at the current date and ON TIME & OFF TIME Programmed by the user, and automatically operates the lights as per timings programmed. This way, this timer allows you the flexibility of choosing your own active slot of the operation. If used for overnight lighting operations, the user will have to set the On-Off timings every 45 days because of changes happening in Sunrise-Sunset Timings as the season advances. Basic Construction (1 Phase Load): It has a compact form factor and excellent build quality. This is a simple wall mountable timer. Its construction can be also modified to suit customer specific requirements like DIN RAIL Mounting and so on. This product can handle load up to 5KW Resistive – Single Phase Load. For higher load, go for Panel Constructed versions. Panel Construction For 3 Phase Load: Timeline Astro also can be supplied in a full panel form that includes contractor & MCBs to suit any KW ratings ranging from 5KW to Hundreds of KW. The panel can be supplied in IP Grade to suit various environmental conditions. Features & Controls: This timer comes with big LCD Display with bright backlight to indicate current date, Current Time, On Time, Off Time, Load On Status etc. Besides this, the Timer has 3 multifunction keys. Bicolor LED shows load status. Red color indicates load is ON. Green color indicates the load is ON. Bypass Mode: Manual Override (Manual Bypass) is available. When the Timer has not yet switched ON, and for some reason, if you wish to switch it ON prematurely, then you can use this “Bypass” Function. Basement Mode: Basements and Staircases are such covered areas which turn dark about 20-30 min before actual Sunset/ Dusk time. Similarly, those areas lighten up about 20-30 min later than actual Sunrise/ Dawn time. So if you wish to fix this problem, then select this “Basement Mode” and forget such problems forever. Night Out Mode (Blackout duration at night): In Night Out Mode, it is possible to set the blackout window for the only duration from ON time to OFFtime. This way for the pre-set duration of the night, the user can turn off the load. This mode is available in ‘Astro Mode’ only. To switch OFF the load at night select the OFF time i.e. HH: MM To switch ON the load again before sunrise select the ON time i.e. HH: MM For selected OFF time to ON time, the load will be OFF. High Voltage Sustainability (Optional): This product can sustain High Line Voltage up to 440V AC. By accident, it single phase supply turns to 440V A.C, this product can sustain it. User Programmable High Voltage Cutout (Optional): In case of the sudden high voltage appearing across the line where this timer is connected, there is an optional feature of High Voltage Trip/ Cutout. The Trip Level is User Programmable in steps of 5V from 265V to 310V. There is no option available to set the Trip Level above 310V as no electrical lamp will sustain line voltage higher than 310V. Date & Time Adjustments: User can adjust Date & Time with an ease. On Time & Off Time Adjustments: This is deliberately not available to the user. The internal software dynamically and automatically does this job for the user. This leaves user free of hassles to form adjusting Lights ON and Lights Off Timings every 45 days as the season advances. Availability & Warranty: The product can be sourced directly from us by contacting us on business@thuse.net. This product comes with the one-year standard warranty against any manufacturing defect. This is a Carry-in-Warranty. Features Make the lights turn ON & OFF daily as per ON-OFF timings preset. Need to change the settings every time when there is the change in Sunrise-Sunset timings due to change of seasons. Presettable timer for On-Off control User-friendly & intuitive user interface design Bypass mode available for manual On-Off control Bi-colour panel LED to indicate lead On or Of Saves power by punctually maintaining On-Off timings of the load Applications: Street Lights ON-OFF Hoarding Lights ON-OFF Staircase/parking Lights ON-OFF Water Pump/sprinkler ON-OFF Lights on construction site ON-OFF Domestic storage water Heater ON-OFF Washing machine delayed start-up to avoid clothes dampening for long duration Any electrical load rated within load specification Specifications: Input voltage range: 130V to 350V A.C, 50/60 Hz Bright backlit LCD display to show status Separate setting for ON & OFF Power failure memory backup User-friendly operations Designed & Mfd. In India to suit Indian power conditions Passes stringent voltage fluctuation tests as per IEC Standards Dimensions (mm) : 73 (H) x 118(w) x 63 (D) Corridors, parking lots, staircase, street lights

lighting automation system, SIGNAL TRANSDUCERS, SWITCHED MODE POWER

Compact 17.5 mm Wide Multi Function: (8 or 18) Non Signal & Signal based functions Multi-Voltage: 24 - 240 VAC/DC Wide Timing Range: 0.1s to 999 Hr 3 Digit LCD for Preset time and Run time Option to select Up/Down counting Tamper proof with key lock feature

With us, one can stay assured for safe deliveries as we make use of premium material for packaging the lot. Also, we make sure that the material is sourced from the trusted places only. Owing to our sound quality system, we are capable of carrying out strict quality analysis of the product basket.   Key features : Protection against Phase Missing & Phase Reversal within 2 sec Multiple Time Zones Advanced Software based Digital Timer with missed time (due to blackout) operation e.g. if the ON TIME is 06:00 hrs and OFF TIME is 09:00 hrs and suppose there is no power in between 06:00 hrs and 08:00 hrs, the pump will remain on for the missing time i.e. pump will be on from 08:00 hrs to 11:00 hrs. Field configuration of times zones through soft touch key pads with Password protection. Battery based Real Time Clock as against capacitor based for nonstop operation for 2 years Phase Sequence and Phase Missing display on LCD Under voltage and over voltage protection Under current and over current protection Bright LED indicators 16 x2 Character LCD with bright LED backlight 10 A Relay with 1 NO Bypass Facility Wide Voltage Operation 190V AC to 270V AC, 50Hz Low Power Consumption Designed with Surface Mounted Technology for high reliability Reduced cost and commissioning time with protection, monitoring and control in a single device   Specifications On and Off according to time Field configuration of times zones through soft touch key pads with Passwor protection. Battery based Real Time Clock as against capacitor based for nonstop operation for 2 Years. Multiple time zone for on and off the load. Bright backlit LCD for display the time and date and configuration settings. Bright LED indicators 10 a Relay with 1 NO Low Power Consumption Input voltage range : 130V to 270V A.C, 50/60 Hz Designed with Surface Mounted Technology for high reliability Wall Mounted Casting Metal sheet Cabinet User friendly operations Designed & Mfd. In India to suit Indian power conditions   Applications : Street Light, Garden Lights, Basement Lights, Staircase Lights, Parking Lights, Lights in Lobbies & Corridors, Hoarding Lights, any electrical load, On-Off, Pump On & Off, School bell, Submersible Pumps On-Off.

• Display Type: Digital
• Feature: Multifunction
• Phase: Single Phase
• Automatic Grade: Automatic
• Country of Origin: Made in India
• Brand: Multispan
• Mounting Type: Panel Mounted
• Display Digit: 3 Digit
• Timing Capacity: Multirange

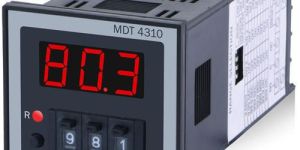

• Model: MDT-4310N
• Model Name/Number: MDT-4310N
• Memory Retention: Yes
• Warranty: 1 Year
• Accuracy: High
• Voltage: 230 VAC
• Operating Voltage: Normal
• Design: Friendly
