Drain Valves Dealers in Pune

we are instrumental in supplying top grade drain solenoid valve to the clients. Imported from one of the best manufacturers across the world, these drain solenoid valves bear the brand name of “tork”. Available in diverse specifications, our drain solenoid valves are 2/2 way normally closed direct operated and pilot operated solenoid valves that comes with a timer. applications air waterhot and oily air specifications size : 1/8" 1" bsp ( on request ntp)pressure : 0 bar 0,5 bar 16 bartube and internal part : stainless steelbody : brass ms58seal : viton temperature : -10oc 80ocposition : normally closedcoil voltage : 220v, 110, 24v 12v ac, 24v, 12v dcprotection class : ip65 and ex proof models with t-z 720.

• Automatic Grade: Auto
• Valve Size: 1/2 Inches
• Pressure: Medium, High
• Resistivity: Rust Resistant
• Max. Pressure: 16 Bar
• Temperature Resistance: 85°C
• Durability: Long Life
• Surface Finishing: Polished
• Drain Time: 0.5 to 15 SEC

• Brand Name: Drytech
• Cycle Time: 10 to 90 Minutes ( Adjustable)
• Drain Time: 1 to 10 Secs ( Factory set 5 Secs )
• Working Pressure: Max 12 Kg. / cm2g
• Working Temp: 70 Deg 'C' max.
• Elect. Supply: 230 V-1ph - 50 Hz
• Housing: Weather Proof / Shock Proof (Powed Coated)
• Overall: Length-100 X Height - 65 X Width - 112 Dimensions ( In mm).
• Timer Display: Digital. Length-100 X Height - 65 X Width - 112

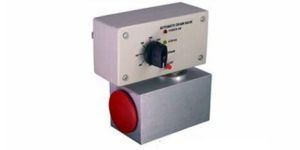

Manufacturer & Exporter of Electronic Auto Drain Valves(EADV), Electronic/Mechanical Electronic Drain, Compressed Air Heat Exchanger/After Coolers, Compressed Air Filters compressed air dryers-Dessiccant/Refrigerated type. Pressure Vessel/Air Receiver, Dealing in Screw/Reciprocating/Oil free compressors.The entrainment of condensate along with air flow in compressed air system to end use applications are extremely harmful, if system not drained regularly. The ideal solution for regular effective draining oil & moisture form compressed Air System is Drytech Electronic Auto Drain Valve. ( E A D V ).Salient Features Easy replacement of timer card only and not full assembly. Longest drain time frequencies for saving compressed air energy. Individual application capacities like receivers, filters and separators etc. Longer service life by way of having supplied with inlet 'Y' type strainers. LocationAir receiver, After Cooler, Moisture separator, Filters, Dryers & Drop Legs etc.Advantages Prevents moistures / oil carry over to pneumatic equipments. Discharges Condensate with high velocity without clogging. Lesser maintenance cost of pneumatically operated equipments Increased operation efficiency of pneumatically operated equipments.

• Material: Brass
• Country of Origin: Made in India
• Pressure: High Pressure
• Corrosion Resistance: Yes
• Head Type: Threaded
• Type: Spring Loaded, Rubber Seal
• Brand: Nitin Enterprises
• Magnet: Magnetic can be supplied
• Valve Size: M18, M22, 1/2"BSP
• Size: M10 - M30 , 1/2" - 1" NPTF
• Usage/Application: Industrial
• Washer: Dowty Washer
• Max Size: 50 mm
• Diameter: 27 Hex to 36 Hex

• Pressure: Medium
• Media: Air
• Material: Mild Steel
• Brand Name: Premier equipment
• Feature: High quality, Durable
• Input Voltage (volt): 24 V

We provide our clients with a gamut of auto drain valves like automatic drain valves, electronic drain valves, air drain valves, etc., that are highly useful in purifying air. Applicable in various industries, these auto drain valves can be custom-made in specifications as desired by our clients.

• Packaging Type: Box
• Valve Size: 15 MM
• Media: Air
• Brand Name: Saad
• Usage/Application: Moisture from compressed air
• Temperature Resistance: 85 Degree

We, ARS Engineering Private Limited, introduce ourselves as an engineering Company providing compressed air solutions to our valued customers for more than 1.5 decades, by offering pre and after sales services and energy conservation audits. With extensive efforts by our Research team, recently, we came up with an IMPORT SUBSTITUTE Innovative and energy saving Product viz. ARS-Z series Electronic level sensed Condensate Drains which has got following salient features: Made In India Rapid pay- back period. Effective condensate drain Long Life Compact in design, Robust aluminum body. LCD display showing drain counts, an unique feature first in its class against others having only LED Indications. Now-a-days, everybody is cost conscious and uses quality product. By using ARS-Z series condensate drains, both the purposes are served by saving cost of compressed air. Our products have an edge over the competition and hence we are receiving overwhelming response in Indian market and also overseas customers in Middle East and Canada. WHY CONDENSATE DRAINS ARE NEEDED All atmospheric air contains some water vapor, which will begin to condense into liquid water in the compressed air or gas system when the air or gas cools past the saturation point, i.e., the point where it can hold no more water vapor Condensate drains are possibly the least glamorous and most ignored component of a compressed air system but nevertheless, a most important part. Contaminants can enter a system at the compressor intake or be introduced into the airstream by the system itself Lubricant, metal particles, rust, and pipe scale are all separated and filtered out, but it’s the drains that have to operate properly for the filters and separators to be successful in completing their task.

NO AIR LOSS FLOAT TYPE AUTO DRAIN The SFD320 is an automatic mechanical float type drain made of cast Aluminum body • That contains a stainless steel float ball • It discharges only the condensate automatically (not the compressed air). • It is also equipped with a manual drain valve for manual operation. • The drain is provided with a standard ½” BSP connection. DRAINS SANPAR TIMER DRAIN Sanpar make Timer Drain consists of a strainer with a solenoid valve. The drain valve opens based on the timings set in the drain. Also the time interval between the successive openings of the valve can be set. The drain has a standard ½” BSP connections.

Aarush Fire Systems Pvt. Ltd is one of top class standard range Drain Valve manufacturers in Pune leading markets. This Valve is made from International standard quality materials and tested by our highly qualified engineers.

• Voltage: 220 V
• Frequency: 50/60 Hz
• Country of Origin: Made in India
• Voltage: 220V
• Automatic Grade: Automatic
• Brand: Air Care
• Max Working Temperature: 1800 Degree Celsius
• Pressure: 70 kg/cm2 (maximum)

Our Automatic Drain Valves are designed to remove Condensate from Compressed Air Systems. Typical installations are on Compressors (after coolers), Dryers, Receivers (Air Tanks), Driplegs and other Compressed Air System Components. Programmable Motorised Drain Valve, Model TEC-44 The TEC-44 is designed to remove high viscosity effluents / condensate at pressures upto 40Bar .The Microprocessor Controlled Motorised Ball Valve is powered by a powerful motor and an efficient gear train, and features a 10 channel programmable cycle with LCD, valve open indicator, test button, anti block system and a battery backup to protect against power failure. The TEC-44 can be programmable to open between 3 sec to almost 15 minutes and the cycle can be adjusted between 4 min and 24 hours, allowing unbelievable flexibility of operation and the 12 mm orifice, can handle huge Condensate discharge in a controlled manner. Auto Drain Valve TEC-11 : FOR COMPRESSED AIR FILTERS designed to drain condensate from all compressed air FILTERS regardless of filter capacity. The in-line design allows for fast efficient installation. The TEC-11 can be matched to any model / brand or type of filter. Auto Drain Valve JORC : EZ-1 ECONOMY DRAIN The EZ-1 is produced with a 1/4� valve connection and in 230 VAC or 115 VAC versions. The limited variations have allowed for massive production batches and subsequently a reduction in cost. The reliability factors have remained in place such as Viton seals, large orifice etc. Auto Drain Valve JORC : COMBO The COMBO is an all-in-one timer drain with an integrated ball valve and strainer The unit offers true bme savings during installation procedures. The valve is protected due to the integrated ball valve and strainer The unit can be shut off from the compressed air system enabling easy and safe maintenance work to be carried out. Auto Drain Valve JORC : OPTIMUM (High Pressure upto 400 Bar) : The Optimum has a wide range of veriations and options such as valve connection sizes in both BSP or NPT and pressure/voltage options. The �new futuristic look� allows the OPTIMUM to make its mark well into the new millennium. The OPTIMUM replaces the very familier TEC-22 range. More options are in NICHE products. Auto Drain Valve JORC : SMART GUARD Pro : Zero air loss drain Valve: The SMART GUARD Pro drain system uses state-of �the art software in combination with a special transducer interface to measure the presence of condensate, volumetrically, 50 times per second. There is no loss of compressed air; Continuous monitoring insures fast, effective discharge of condensate up to 1000 liters condensate per hour. There are no Sensors to foul up and the unit functions equally well with clear water or heavily emulsified and dirty condensate. The SMART GUARD Pro operates in a pressure range from zero to 16 bar and the large condensate removal capacity makes it suitable for all applications, regardless of size. An alarm feature is incorporated as standard. Auto Drain Valve JORC : NUFORS :The Nufors removes condensate from compressed air systems. The operation is automatic and there is no unnecessary compressed air lost during the condensate discharge cycle. The NUFORS uses pneumatic forces to operate the valve assembly and is ideally suited in applications where power is not available, too expensive or not reliable. The large orifice, combined with the large discharge capacity make this drain suitable for all compressor capacities.

• Material: Stainless Steel
• Valve Size: Operating Range 4 to 16 Bar
• Model Name/Number: Drain Valve 5370.3 , 5370.4
• Size: G 1/4 - Female Thread
• Brand: EWO
• Usage/Application: Industrial
• Pressure: Medium Pressure
• Features: Low maintenance, Long service life, Easy thumb pushing action.

• Media: Air, Water
• Material: Stainless Steel, Aluminium, Brass/Bronze
• Condition: New
• Drain Time: 1 to 10 Secs ( Factory set 5 Secs )
• Pressure: Max 16 kg/ cm2
• Model: Regular
• Automation Grade: Automatic
• Cycle time: 10 to 90 minutes (adjustable)
• Working temperature: 70 degree celsius (max)
• Electric supply: 230 V Single Phase 50 Hz
• Overall dimensions (in mm): (Length) 100 X (Height) 65 X (Width) 112 mm
• Timer Display: Digital

we are offering Zero Loss Drain Valves. Compressed air condenses moisture in dryers, after-coolers and air receivers. This condensate needs to be removed frequently. In ordinary drains, there is always a loss of compressed air most of the condensate drains have a 4mm orifice. This 4mm orifice bleeds about 34 cfm, which is the equivalent of 6.5kw of power. Works on principle of zero air loss and do not bleed expensive compressed air and saves energy.

• Working Pressure: Max 12 Kg. / cm2g
• Cycle time: 10 to 90 Minutes ( Adjustable)
• Drain time: 1 to 10 Secs ( Factory set 5 Secs )
• Working temp: 70 Deg 'C' max.

INTRODUCTION : The entrainment of condensate along with air flow in compressed air system to end use applications are extremely harmful, if system not drained regularly. The ideal solution for regular effective draining oil & moisture form compressed Air System is Drytech Electronic Auto Drain Valve. ( E A D V ). ADDITIONAL FEATURES : • Easy replacement of timer card only and not full assembly.• Longest drain time frequencies for saving compressed air energy.• Individual application capacities like receivers, filters and separators etc.• Longer service life by way of having supplied with inlet 'Y' type strainers. LOCATION : Air receiver, After Cooler, Moisture separator, Filters, Dryers & Drop Legs etc. ADVANTAGES : • Prevents moistures / oil carry over to pneumatic equipments.• Discharges Condensate with high velocity without clogging.• Lesser maintenance cost of pneumatically operated equipments• Increased operation efficiency of pneumatically operated equipments. TECHNICAL SPECIFICATIONS : • Cycle time : 10 to 90 Minutes ( Adjustable).• Drain time : 1 to 10 Secs ( Factory set 5 Secs ).• Working Pressure : Max 12 Kg. / cm2g.• Working temp : 70 Deg 'C' max.• Elect. Supply : 230 V-1ph - 50 Hz.• Housing : Weather Proof / Shock Proof (Powed Coated)• Overall : Length-100 X Height - 65 X Width - 112 Dimensions ( In mm).• Timer Display - Digital. Length-100 X Height - 65 X Width - 112

The DTV-R valve can be used in applications where a discharge flow to a drain or sewer must be tempered with cold water to reduce temperature. In some areas, plumbing codes dictate a maximum allowable sewer discharge temperature. The DTV-R provides a convenient, economical, and easy to use method of tempering hot effluent flows. Since the DTV-R is open only when the effluent exceeds the specified setpoint temperature, it also conserves water by automatically turning off cold water when not needed.   Design Features * Boiler blowdown drain lines* Condensate return headers* Heat Exchanger backup cooling* Dehumidifier* Any excessively hot effluent flow to sewer/drain* Condensate discharge from steam traps directly to sewer

• Brand Name: ARS Engineering Pvt Ltd
• Material: Aluminium
• Power: 24 V DC
• Pressure: 10 Bar
• Media: Compressed Air
• Port Size: 1/2
• Temperature Of Media: 60 Deg C
• Place of Origin: Pune , India

Zero Air loss condensate Drain Valves for compressed air Features - Level sensor Display Minimum order qty 1

Zero Air Loss Electronic Auto Drain Valve, Kirloskar Electric Screw Compressor
