Ecoair Cooling Systems Private Limited Hinjewadi, Pune, Maharashtra

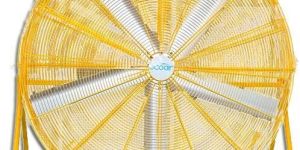

YU- GO fan is floor mounted vertical fan with an 8-ft diameter. The energy-efficient direct-drive motor offers variable adjustments to fan speed through an intuitive speed control dial. Its construction is very compact & durable which gives ideal air movement solution in any environment. Features : Specially designed for installation on floor Sturdy body with wheels for portability Distributes air in a large area horizontally low Noise User Sectors : Industrial Floors, Events, Open area Air Flow from the fan creates "wind Chill Effect" giving improce comfort cooling Easier to more

Power : 0.75 KW /3 & 1 Phase

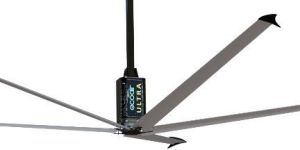

Features : Single fan replaces multiple wall mounted fan Distributes air up to 28,000 sq.ft., corner to corner, outstanding Coverage without draft consuming only 1.5KW power Running Costs reduction of upto 80% and payback in 6 months. Variable speed controller to set and control airow. reverse operation options. Flexibility on shop oor for line layout and movement. Advantages : Patented Design using CFD Analysis for enhanced Performance & Durability. Ultra has inbuilt 9 Deg Dihedral Angle of the Blades which has a wider throw of air and ensures 50 percent higher coverage area than normal HVLS Fans Primary Safety. Heavy Duty Support Structure, Chassis, Impeller, High Strength Fasteners with Lock Nuts and Thread Lock, Blade Material 6061 T6 Secondary Safety : Embeded Wire Rope for Blades, Support Structure, Motor Chassis, Gearbox Shaft & Hub. Motors for the extremely High Energy Efciency and future Ready Ecoair - Mobile Based App to remotely Control Multiple Fans in Single Location Forged & CNC Machined Impeller Arms & Hub Fully Floating Axial Bearing in Hub to ensure no Radial, Bending or Axial Load on Gear Motor Shaft Extremely Long Life of Gear Box Bearings & Gears.

Country of Origin : India

Type : Ultra

Certification : CE Certified

Color : Grey

Voltage : 220V

Frequency : 50Hz

Phase : Single Phase

Features : High performance fan for indoor & outdoor applications such as lawns, Restaurant etc. Single fan replaces multiple wall mounted fan Distributes air up to 28,000 sq.ft., corner to corner, outstanding Coverage without draft consuming only 1.5KW power. Variable speed controller to set and control airow. reverse operation options. Advantages : Safety Extremely High Level of Primary Safety for all components.40 mm shaft Dia. / M14 Bolts for Structure & Chassis / Nylock Nuts and Loctite for all fasteners / Steel EN 10025 – 90 for Structure & Chassis / GI Wire Ropes with additional PVC Coating/ etc Secondary Anti – Fall Safety Systems provided for all Major Components Structure – Secondary Wire rope to lock to building Structure Blades – Embedded Wire Ropes in Blade Hub inhub assembly for anti-fall. etc Performance Aerofoil Blade Design with Blade Angle of 27 deg. for optimum Air Flow Rate & Thrust. Tapered Fan Blades for Uniform Air Distribution. High Efciency German Motor & Gear Box for Low Costs. Durability & Reliability High Grade 6061 T6 Aluminum Alloy Used for Aerofoil Blades Motor & Gearbox with Synthetic Oil & VFD from Danfoss High Grade Steel upto 12mm thick with Hot Dip Galvanizing for best anti corrosion protection. GI Coated Wire Ropes with PVC Coating.

Country of Origin : India

Type : Pole Mounted

Certification : CE Certified

Color : Grey

Voltage : 220V

Frequency : 50Hz

Phase : Single Phase

Features of the outer rotor fan is pressure increases quickly, which mainly depends on the width of the impeller, air performance and proper ow. The air ow is accorded with the same pressure, ow rate under the condition of constant ow with the impellwer width increase linear change. ls usually equipped with a rotating chamber made of galvanized aluminum, or plastic. Features : Electrophoresis punch forming casing with stable structure. High-air-ow, high pressure, low noise, low vibration Impeller with dynamic balance. High efficient direct driven external rotor motor is able to work under high temperature. Compact structure. Lower noise when working under high pressure

Country of Origin : India

Type : Heav Duty

Certification : ISI Certified

Application : Industrial

Color : Black

Voltage : 220V

Warranty : 1 Year

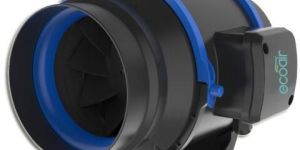

Mixed Flow Duct Ventilator has the advantages of low noise, large air flow and high static pressure. This design is suitable for most of the ventilation situations and can be used instead of axial fan or centrifugal fan. Moreover, the motor and impeller are located at the center of the structure which means you can easily install, remove or maintain them without adjusting the Ducting even in sealed space.Features : High strength PP plastic, light weight and durable. Double insulation. Mixed-ow impeller design, high pressure and large air ow, high efficient, low noise Special snap joints design, easy installation, perfect seal conditions, easy maintenance. Can be wisely used in ventilating meeting room, office, public space, hotel and residence.

Country of Origin : India

Type : Mixed Flow

Material : HDPE, Metal

Shape : Rectangular, Square

Certification : ISI Certified

Application : Ventilation Use

Surface Finishing : Polished

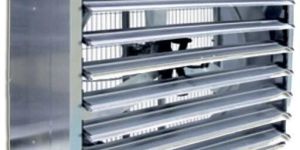

Industrial Exhaust fan With louvers designed to prevent duct ingress when fan is switched off. Direct drive fan without belt gives maintenance free operation and long life. These exhaust fans are having large air flow, low noise and are energy saving, small capacity motor running at low RPM & large air displacement. Features : Direct Drive Fan without Belt for maintenance free operation Double Ball bearing and copper winding Aluminium Die Cast Impeller Aluminium blades and strong G.I. Body Gravitational Louvers Large Air Flow, Low Noise & Energy Saving. User Sectors : Ventilation and Air changes Heat Extraction Best Suited as its wall mounted. Ventilate non flammable, low corrosive gases. Ideal replacement for roof ventilators.

Usage/Application : Industrial

Color : Grey

Material : Metal & Plastic

Voltage : 220 V

Warranty : 1 Year

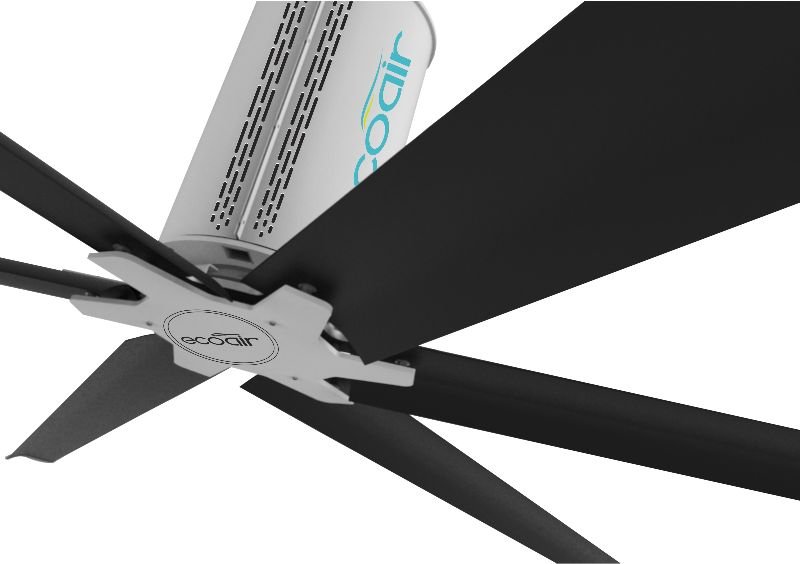

HVLS Fan can drive a large amount of air in very large space and circulate air across an area up to 20 meters from the fans center in all directions (over 1600 sq. meters for a 7.3-meter fan ). Air from above in pushed down to the floor below in a cone shape and then moves in a horizontal stream.Features: Distributes air up to 16,000 sq. ft, corner to corner Running Costs reduction of up to 80% and payback in 6 months Variable speed controller to set and control airflow, Reverse operation option Earn LEED credits for sustainable design

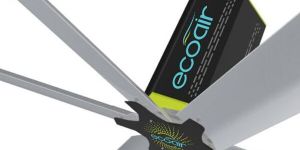

HVLS fans are High performance industrial fans which replaces multiple wall mounted fans. HVLS Fan reduces running cost upto 80% compared to other fans & payback in 6 months. HVLS Fan distributes air up to 15000 sqft corner to corner. Its coverage is without draft consuming only 1.5KW power. Features : Nord Motor and Gear Box Danfoss VFD Extruded Aluminium Blades ( 6061 T6 ) Large Area Coverage Chassis and Supporting Structure – High Tensile strength Sound Level : Below BLDC 45 DB, HVLS Geared 60 to 65 Reversible operation possible User Sectors : Industries Railway Stations Commercial complexes Temples/Church/Mosques Large areas Auditoriums

Voltage : 750-1500 V

Frequency : 50/60 Hz

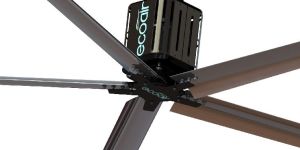

Features : PMSM- (Permanent Magnet Synchronous Motor), Brushless Motor with High Torque at Low RPM. Exceptionally Low Maintenance- Service interval>1,00,000 Hours, with 24x7 operation continuously at full speed. One of The Worlds Most Energy Efcient Motors- 30% Lower Power Consumption, compared to normal HVLS Fans. Extremely Low Sound - No Gearbox, Direct drive less than 45 db @ 1mtr High Pole Motor-66 poles & 6 pole winding specially designed for HVLS fan application 5 Blade 6061T6 Aluminum Alloy blade - High Strength & Durability Primary and Secondary Safety features for Anti Fall Protection for all components of the Fan. 0% Derating of the fan performance over the life of the fan. User Sectors : 24x7 Operation & Low Sound Applications. Airports, Railway Stations, Bus Stands, etc Auditorium, Cinema Halls, Theaters, etc Air Conditioned Building to Lower A/c Running cost. Warehouses, Shop Floors, Factories. Malls, Shopping Centers, Departmental Stores. Temples, Mosques, Churches, Prayer Halls.

Country of Origin : India

Type : Gearless

Certification : CE Certified

Color : Grey

Voltage : 220V

Frequency : 50Hz

Phase : Single Phase

Evaporative Air Cooler provides fresh, filtered, Cool & oxygen rich air with comfort cooling upto 20 degrees with high airflow. This cooler is environment friendly & gives energy saving upto 80%. Features : Low Capex Energy Saving upto 80% Environment friendly Modular design and construction for long life Protection from Over Load, Single Phasing, Voltage Fluctuation UV protected Poly Propylene body. High Quality Munters Celdeck Pads User Sectors : Industries Offices/Canteen etc Commercial Establishments Schools/Colleges etc Auditoriums/Cinema Halls Restaurants

Country of Origin : India

Type : Evaporative

Material : Metal, Plastic

Certification : CE Certified

Application : Industrial

Color : Grey

Voltage : 220V

Ecoair is the largest manufacturer of the Duct type Ventilation Fan in India. Ecoair provide Ceiling Exhaust Fan having quiet operation but covers long ventilation distance.

Color : Grey

Warranty : 1 Year

Blade Type : Metal

Voltage : 220 V

Country of Origin : India

An air purifier or air cleaner is a device which removes from the air in a room. It also remove harmful airborne particles like dust, pollen and bacteria. The air purifier then circulate the purified air back into the room. This process repeats itself several times an hour, keeping your environment healthy. Being at Office and relaxing is perhaps one of our greatest hobbies. We can wind down from the day and enjoy the amenities of being in our safe place. But one of the most vital luxuries many times goes overlooked - air quality. We rely on air for survival and breathe nearly 35 pounds of air each day! The quality of air in your Office is important, and purchasing an air purifier can help to improve your breathing. This can lead to a number of rewards such as increased energy, better blood circulation, and a strengthened immune system. Many times we overlook factors that can contribute to poor air quality.

Country of Origin : India

Type : Automatic

Certification : CE Certified

Color : Grey

Voltage : 220V

Power : 1-3kw

Power Source : Electric

Warranty : 1 Year

Air Circulators are specially designed for installation in false ceilings and can be fixed into a standard 2’ x 2’ ceiling grid & extremely easy to install. Revolving louvers distributes air in a large area. It reduces air conditioning load as the air flow from the fan creates “Wind Chill Effects” giving improved comfort cooling. Features : Special design to fit in false ceiling Fixable into 2 X 2 ceiling grid Revolving louvers with 3 speed Very low noise and power consumpon Double bearing with copper winding Proper circulation of air in low height areas Matching with the interior Easy and quick Installation Low maintenance User Sectors : Aircondioning rooms where hot pocket problem exists. Reducon in Air Condioning load Low ceiling height areas Equal Distribuon of air. LED opon available Airport/Hotels recepon areas Restaurants to reduce Aircondioning load.

Country of Origin : India

Type : Advance

Certification : CE Certified

Application : Air Cooling

Color : Grey, White

Voltage : 220 V

Body Material : Metal, Plastic

Warranty : 1 Year
