Electromechanical Relays Dealers in Pune

• Packaging Type: Carton Box
• Overall Weight: 300gm
• Usage: Factories
• Specialities: High Performance
• Brand Name: LEONE
• Color: Black
• Voltage: 12VDC
• Condition: New
• Phase: Single Phase
• Mounting Type: PCB Mount
• Color: BLACK
• Usage: PCB
• Product: LATCHING RELAYS

Operating Modes: The operating mode can be selected using TEST or NORMAL Mode front panel Switch:  NORMAL Mode: > In this mode the AVR is operational. If PT input voltage is less than PT set point voltage minus hysteresis, then HIGH LED glow & there is a pulse of LOWER RELAY as per user setting pulse time & delay between two pulses & it clears if PT input voltage is greater than or equal to PT set point > If PT input voltage is greater than PT set point voltage plus hysteresis, then LOW LED glow & there is a pulse of RAISE RELAY as per user setting pulse time & delay between two pulses, & it clears if PT input voltage is less than or equal to PT set point . > If PT input voltage is less than UV set point then UV relay on & UV LED glow & it clears if PT input voltage is greater than or equal to UV set point plus hysteresis.  TEST Mode: > In TEST mode there is one potentiometer at front side of unit, it is independent of PT supply. As per Potentiometer value voltage , Test Low & Test High LED glows as per PT voltage set point.. Settings: > To enter settings mode press set key and then press increment key for enter the correct password. > The password value can be set by using INC or DEC key & then press ENT key. > Press set key to move to next parameter. To edit parameter press increment/decrement keys > To save and exit SET mode press ENT key. > If no key is pressed then controller automatically goes to initial Display normal mode.> The factory set password is 11.

• Country of Origin: India
• Voltage: 220V
• Number of Poles: 2 Pole
• Frequency: 50 Hz
• Brand Name: Treffer
• Usage/Application: Industrial / Thyristor/Static
• Current: 100 Amp
• Current (Amp): 5
• Rating: 4/6/12

We support credit cards, purchase cards, PIN-less debit cards, bank account transfers for your utmost convenience. We have database that is maintained by the financial experts; they make sure that the transactions are made keeping all the details of the clients confidential. Stay rest assured for the products that we offer as they will remain damage free. For this, we make use of only premium packaging material for the packing Key features: Protection against Phase Missing & Phase Reversal within 2 sec Multiple Time Zones Advanced Software based Digital Timer with missed time (due to blackout) operation e.g. if the ON TIME is 06:00 hrs and OFF TIME is 09:00 hrs and suppose there is no power in between 06:00 hrs and 08:00 hrs, the pump will remain on for the missing time i.e. pump will be on from 08:00 hrs to 11:00 hrs. Field configuration of times zones through soft touch key pads with Password protection. Battery based Real Time Clock as against capacitor based for nonstop operation for 2 years Phase Sequence and Phase Missing display on LCD

• Application: Voltage And Phase Sequence Monitoring & Controlling. Under Voltage & Over Voltage Detection.
• Finishing: Polished
• Current Type: AC
• Brand Name: SALZER
• Material: Plastic
• Color: Grey
• Condition: New
• Power Consumption: 2W-5W
• Shape: Square
• Application: Mines, Factories, Power Plants, Shopping Malls
• Voltage: 220V
• Mounting Type: Din Rail Mounting
• Certification: CE Certified
• Size (Inches): 60 X 70mm
• Packaging Type: Carton Box
• Country of Origin: India
• Phase: Single Phase
• Warranty: 1 Year
• IP Rating: IP50-70
• Corrosion Resistance: Yes
• Rust Resistance: Yes

• Finishing: Polished
• Current Type: DC
• Shape: Rectangular
• Power Consumption: 2W-5W
• Voltage: 220V
• Packaging Type: Carton Box

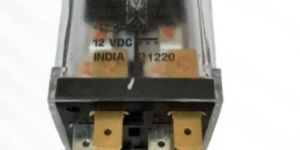

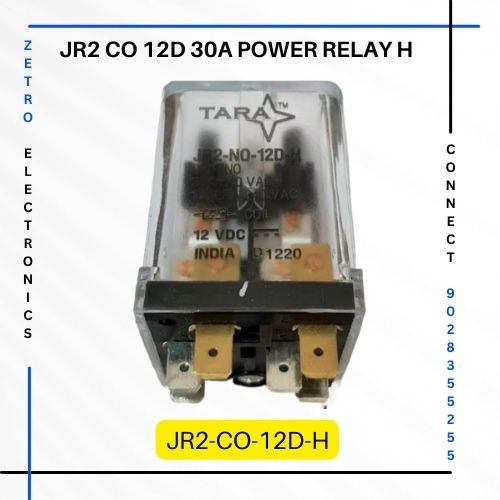

power relays : jr2 co 12v 30a power relays power relays : jr2 co 12v 30a power relays seriesjr2 contact configuration2 form a, 2 form b, 2form c current rating (no/nc)30a/30a at 240v ac electrical life*50,000 ops coil voltagesvarious dc and ac voltages dielectric (kv ac) between contacts1.5 between coil and contacts2 typical applicationselcb, phase changer, genset changeover, welding machines, stabilizers, contactor replacement, inverters, automation ,pump controllers    , domestic appliances etc. special features l high temperature withstanding non plastic base l rugged design l fully insulated mounting l complete isolation between poles versionsdust protected termination6.3mm qc terminals solder mounting stylepanel / chassis vertical / horizontal size (lxbxh) mm60.3 x 38.2 x 43.2 weight (approx. ) gms120

• Current: 5 ampere
• Voltage: 415V AC
• Frequency: 50 Hz
• Country of Origin: Made in India
• Brand Name: Softhard

Features: • DIN rail mountable • LED indication for relay status • External power supplySignal supply selectable by jumper. • Input voltage can be ACDC of up to 2000V Applications: *Voltage safety monitoring *Overvoltage monitoring *Configuring speed dependent relay by connecting analogue tachogenerator output to the module *Safety voltage monitor in Solar panel

• Number of Poles: 2 Pole

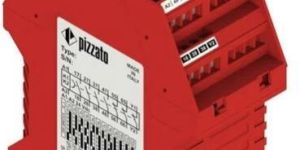

• Brand Name: Pizzato
• Voltage: 440 V
• Phase: Three Phase
• Rated Current: 40 A
• Model Name/Number: CS AT-02V120
• Operating Frequency: 50 Hz
• Power Source: Eelctric

• Frequency: 200Hz
• Diameter: 38 mm
• Weight: 12 Kg
• Centrifugal Force: 1500 n
• Intensity: 8A
• Length: 369 mm

• Number of Poles: 4 Pole
• Voltage: 230VAC
• Brand: Relpol
• Type: Industrial Relay
• Model Name/Number: R4N-2014-23-5230-WTL
• Usage/Application: Industrial Relay
• Operating Temperature: -40...+85 Deg CL
• Coil Voltage: 24V
• Current: 7Amp

• Insulation Resistance: 100 M Omega
• Dielectric Strength(Betweem Coil & Contacts): 1500VAC
• Electrical Life: 1 * 10 to Power 5
• Mechanical life: 1 * 10 to Power 6
• Operating Temperature: -25 Degree C
• Terminal Type: PCB
• Weight: 28gm Approximately
• Contact Form/Resistance: 1C / 100 M Omega Max. @ 1A/ 6VDC
• Contact Material: Ag Alloy
• Contact Capacity: 40A @ 250VAC / 40A @ 28VDC
• Coil Volatge(DC): 12
• Coil Power Consumption: 0.9W
• Dielectric Strength(Betweem Open Contacts): 1200VAC

The first protective relays were electromagnetic devices, relying on coils operating on moving parts to provide detection of abnormal operating conditions such as over-current, over-voltage, reverse power flow, over- and under- frequency. Microprocessor-based digital protection relays now emulate the original devices, as well as providing types of protection and supervision impractical with electromechanical relays. In many cases a single microprocessor relay provides functions that would take two or more electromechanical devices. By combining several functions in one case, numerical relays also save capital cost and maintenance cost over electromechanical relays. However, due to their very long life span, tens of thousands of these "silent sentinels" are still protecting transmission lines and electrical apparatus all over the world. An important transmission line or generator unit will have cubicles dedicated to protection, with many individual electromechanical devices, or one or two microprocessor relays.

• Applications: *Voltage safety monitoring,*Overvoltage monitoring etc.,

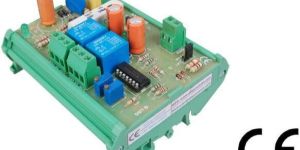

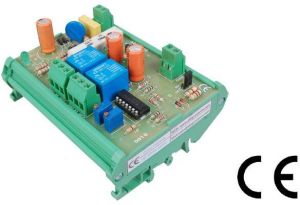

Voltage Sensing Relay two stage: Using this module AC or DC voltage levels can be sensed. The input voltage can be up to 2000V.If external voltage has sourcing capacity of 75 mA then the module uses the power from external sensing signal. In case the input supply has sourcing limitations then external 24VDC supply is required. There are two relays and sensing voltage of each relay can be set saperately by a preset. User can use two potential free contacts of two relays for their application. Features: â€Â¢ DIN rail mountable â€Â¢ LED indication for relay status â€Â¢ External power supplySignal supply selectable by jumper. â€Â¢ Input voltage can be ACDC of up to 2000V

• Weight: 180 gms.
• Dimensions: 76 x 30.5 x 117.5mm

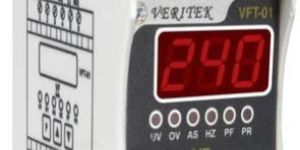

Over voltage relay Single Phase Under & Over voltage, Auto Reset, Adjustable under over voltage settings, 2 CO output relay

This unit is designed to sense the open circuit and over current drawing of the solenoid during its Energization time (typically within 20mSec. to 200mSec.) and to give latchable relay output when input solenoid current exceeds the set value.

VOLTAGE MONITORING SERIES SM 175   Compact 17.5 mm wide Protects against Phase Loss, Phase Reversal & Phase Asymmetry Multi-voltage from 3 x 208 to 3 x 480 V Selectable Under voltage / Over voltage / Asymmetry levels Selectable Under Voltage / Over Voltage & Asymmetry LED indication for all faults & for change in settings during run time for better security Adjustable time delay 1 C/O configuration

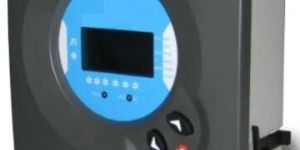

APFC relay high performance and low maintenance, these APFC panels offered by us are highly demanded in the market. These offered APFC Panels can be customized in accordance with the requirements and demands provided by the customers.

Negative Sequence Voltage Operated Single Phasing Preventor.  Suitable for any H.P. Motor. Fixed Trip setting at (+ / -) 40V. Unbalance in R.Y.B. Phases. Auto Reset. Protection against single phasing, reverse phasing, unbalance voltage. L.E.D. Indication is healthy On. Models Available in ABS (Plastic) EnclosuresType -1) PX 999 2)PX 503 3) S.P.P.3 4) PX 503 Models Available in Sheet Metal Powder Coated boxesType- POWERTEK SUPER

  HYBRID POWER RELAYS - RHP       20 A in a case only 17.5 mm wide Service life > 5 million operations at full load Silent operation Function contactor - impulse relay - day/night contactor Clips onto a 35 mm DIN rail UL/@UL (listed) approval pending NF-USE label pending "CE" / Low Voltage Directive conformity   Operating principles   Contactor The contactor output is closed when the control voltage is present at the control input terminals.The contactor output is open when there is no voltage at the control input terminalsThe LED is lit when the output is active

  • Durability.     • Direct control by integrated Circuit.     • Load current up to 125 A.     • Load voltage up to 330/480 VAC.     • Isolation voltage 2500 VAC. (4000V Optional).     • Optimum Strength.     • Zero voltage Turn-on, Zero Current Turn-off.     • Fast switching response.     • Chassis mounting.     • Normal Open type.     • LED Indicator Showing Relay ON status.     • Reliable.     • Weight-Approx 100 g.

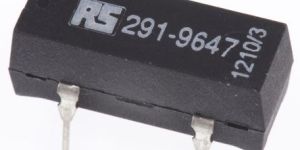

5kV Isolation Low Contact Resistance High Power Switching PCB Mount Flying Lead HV connection

• Voltage: 14VAC,DC12V
• Type: Voltage Relays
• Model Name/Number: KT-683
• Current: 40 A
• Usage/Application: multi
• Temperature Range: -40 to 85 Degree C

• Material: MS
• Features: Specifying fixed stages, No voltage trip(Under voltage Monitoring), Zero current trip, Automatic setting of switching time delay.
• Type: EMR1100S / RM9606 / RM2106 / RM 2112 / PQC
• Patented Control Characteristics: No overcompensation during low load

• Voltage: 440 V
• Phase: 1/3
• Number of Poles: 2 Pole, 3 Pole, 4 Pole, 5 Pole
• Brand Name: AB Power
• Features: Perfect strength, Highly reliable, Longer service life .
• Surface Treatment: Color Coated

• Voltage: 220V
• Number of Poles: 3 Pole, 4 Pole, 5 Pole, 2 Pole
• Brand: Softhard Automation
• Type: High Voltage Relay
• Application: Electrical Automation
• Contact Form: DPDT, SPDT
• Coil Type: Latching, Non Latching

The PFR-X power factor controller calculates the active and reactive power in the mains from the measured current and voltage.The intelligent control algorithm optimizes the switching sequences and guarantees for short regulation times with minimum number of switchings.At the same time, switching operations are equally shared among the available capacitor branches where possible.The integrated connection control immediately detects in which phase voltage and current are measured, and adapts the entire system automatically.The very low current threshold of 10mA allow for very reliable and exact PF control.1A as well as 5A current transform can be used without additional manual adjustments.The power supply cover a voltage range of 90....550V.
