Electronic Circuit Boards Dealers in Pune

• Country of Origin: India
• Type: Reflow Oven
• Application: Soldering PCB
• Color: Grey
• Condition: New
• Automatic Grade: Semi Automatic
• Driven Type: Electric
• Warranty: 1year

• 5 heating zones.• manual hood opening with jack arrangement.• max temperature of 300˚c, lead free compatible.• mesh (or) chain (or) chain above mesh conveyer options.• 10 independent pid controlled heating zones (5 top & 5 bottom).• heating length - 1550 mm.• max pcb width - 300 mm.• touch screen operation.• 3 channel profiler option.• manual width adjustment.

VSET-AV-01 LED TV Trainer has been designed with a view to provide theoretical and practical knowledge of a general High Definition TV and Gain the Knowledge about all parts like IC, speaker, PCB Board etc. It Provide a way to fully analyze LED TV.   Scope of Learning:-   Unit Objective Preventive maintenance of a LED Understanding control panel settings. Hardware Monitoring Study of power supply pin-outs Study and analyze analog signal on speakers Study and analyze signals on keypad interface Study and analyze AV signal with faults Study and analyze VGA signals with faults Study and analyze IR remote signals with faults Study and analyze LVDs signals with faults Study and analyze main board of LED TV Trainer

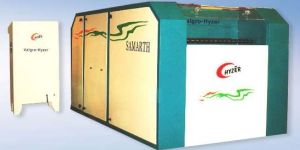

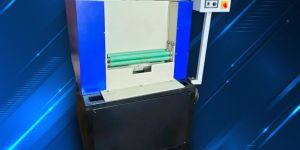

      A side view of the machine with brushing arrangement clearly visible. The dust collection is effective & behind the brush mechanism with blower fan on top. Salient Features: No pollution & hence operator friendly Productivity automatically enhanced. Scrap generation collected in tray. Environment protected. Filter media automatically pulsed periodically by use of timers. Equipment is lightweight & hence easily portable Utility Requirements: Brushing motor needs 0.5 H.P. Power Blower motor needs 1.5 H.P. Power Compressed air required at 4 Kg./cm2 for periodic pulsing of filters. Control Panel: Wall mountable design. Operation on wall mounted panel restricted to blower motor start & stop only. Brush motor operation on the grinder for easy start & stop function. Panel input connection is simple with only one three phase incoming supply. Output connection from panel to be given to blower motor & brushing grinder motor & solenoid coil of pulsing valve.     FAQ's       1. How important is lug brushing? Is it really necessary? Lung brushing is important and hence necessary prior to group welding in the assembly department since removal of oxide from the lugs exposes the metal surface thereby ensuring a proper welding and bonding of the plates to the busbar. 2. In what way is lug brushing on machine butter compared to filing the plates? Manual filing of plates can result in uneven lug thickness causing lead runs during grouping. Such lead runs if undetected can be the reason for cell shorts and battery failure. Thus it is a quality related issue. Moreover filing of plates manually is laborious, time consuming and hence not economically viable. Further – in addition to productivity the rate of production with manual filing is low and hence unviable considering the competitive nature of today’s business environment. Lastly and not the least – manual filing is polluting whereas the lug brushing machine having the integrated dust collector ensures that the lead dust is collected in a tray resulting in substantial savings for today’s battery manufacturers clean setup. 3. Can the machine be used for industrial plates lug brushing? The machine can be used for positive & negative plates of standard size as well as narrow size automotive plates in addition to using these for all industrial plates. 4. How frequently does the filter media need cleaning? Cleaning of the filter media is done periodically with the help of compressed air. It is for this purpose thatcompressed air forms part of this machine’s utility requirement. A timer in the control panel ensures cleaningof the filter at regular intervals of one minute.

Application Relay Interface Module 2 changeover DC used to interface 24DC digital outputs to contactorssolenoid valvesindications etc. Load and PLC ops are galvanically isolated COMPONENT SPECIFICATIONS Relay: 24VDC coil,1 changeover Omron Relay socket: 1 changeover PCB soldering type Terminals: Screw type suitable for 2.5 sq. mm wires Profile and end plates: Phoenix make TECHNICAL SPECIFICATIONS Input data: Operating voltage: 24 VDC +- 10% Input current: Max 20mA@24 VDCAC Protection across relay coil: Free wheeling diode Indication: 3mm LED No of relays: 2 or 4 or 8 Terminals: Screw type suitable for 2.5 sq. mm wires Conductor size: 025-2.5 sq. mm Insulation stripping length: 7 mm Output Data: Contact type: DPDT (2 changeover contacts NO-Pole-NC) Max. current: 5Amps@250 VAC or 30 VDC Output wiring: Potential free Terminals: Double decker Screw type suitable for 2.5 sq. mm wires Conductor size: 025-2.5 sq. mm Insulation stripping length: 7 mm Module dimensions (HXLXD): 125x36x70 (2 Relay board) 125x70x70 (4 Relay board) 125x130x70 (8 Relay board)

• Type: Reflow Oven
• Certification: CE Certified
• Application: Drying Process, SMT REFLOW PROCESS
• Weight: 300-400kg
• Color: Light White
• Voltage: 440V, 3 PHASE
• Condition: New
• Automatic Grade: AUTOMATIC
• Power: 14KW PEAK
• Driven Type: Electric
• Warranty: 1year
• Country of Origin: India
• WITH ISO CONTROLLER: RUGGED CONSTRUCTION

• Brand Name: Tara relays

HP91 CO 12V 40A PCB Relays Square TypeHP91 CO 24V 40A PCB Relays Square TYPEHP91 NO 12V 40A PCB Relays Square TYPEHP91 NO 24V 40A PCB Relays Square TYPE SERIES HP90 CONTACT CONFIGURATION 1 FORM A, 1 FORM B, 1FORM C CURRENT RATING (NO/NC) 40A/30A AT 240V AC ELECTRICAL LIFE* 50,000 OPS COIL VOLTAGES VARIOUS DC VOLTAGES DIELECTRIC (KV AC) BETWEEN CONTACTS 1.5 BETWEEN COIL AND CONTACTS 2.5 / 4 TYPICAL APPLICATIONS UPS, STABILIZERS, AUTOMATION, ACCL, AIR CONDITIONERS, HVAC, PUMP CONTROLLERS, DOMESTIC APPLIANCES ETC. SPECIAL FEATURES INTERNATIONAL STANDARD FOOTPRINT 4 KV DIELECTRIC VERSION AVAILABLE VERSIONS UNENCLOSED DUST PROTECTED FLUX PROOF WASH TIGHT TERMINATION PCB MOUNTING STYLE PCB SIZE (LXBXH) MM 32.2x27.2x20.1 WEIGHT (APPROX. ) gms 25

• Material: Plastic
• Packaging Type: Box
• Shape: Hexagonal
• Brand Name: RMW
• PCB Thickness: 1.7 mm
• Usage/Application: Used In PCB

• Driven Type: Electric
• Color: Blue
• Condition: New
• Automatic Grade: Semi Automatic
• Power: 1-3kw
• Certification: ISO 9001:2008
• Voltage: 220V
• Type: Pcb Machine
• Weight: 100-200kg
• Warranty: 1year
• After-Sales Service Provided: Yes
• Board Thickness: 3.5mm
• Country of Origin: India
• Min. Line Width: 350mm

We provide our customers with the best in class PCB Assembly. Being the leader in the manufacture and supply of PCB assembly & parts, our PCB Assemblies have been successfully being used in products like Play Stations, Flashers, Controllers, Medical Equipment, Home Appliances, DC Motors and Electronic Modules. For the last 7 years we have stood for excellence in quality product manufacture and have gained trust of our customers through the years. We provide prototype PCB Assemblies of 24V and 12V of 10A and 5A variant in both the category.   Features : We have our SMT set-up we also provide you SMT Production Facility Auto Pick & Place Machine(JUKI-JX100) Assembly or Wave soldering Assembly. Auto Pick & Place Machine Assembly or SMD LED PCB Assembly & Through-Hole PCB soldering are our expertise to provide you a quality service. we are assembling BGA/QFN/QFP IC and O4O2 pick. chips also. And Also provide proto types PCB Assembly
