• Flow range(Min-Max): 3.0 - 24000 LPH
• Operating Pressure: 10 kg / cm2 Max
• Operating Temperature (Celsius): 150
• Output (mA): 4 - 20
• Size: DN 06 / 15 / 20 / 25 / 40 / 50 / 80
• Accuracy (+/-): 0.5% of reading
• Repeatability (+/-): 0.1% of reading
• Filter Mesh Size: 150 micron SS Mesh Reusable Type

• Std. Polvoro fittina:: 6.9 bar (100 psi) @ 100°C
• Dot. 316 SS fittina:: 13.8 bar (200 psi) @ 120°C
• Sanitarv Connection:: 6.9 bar (100 Psi) @ 120°C
• Cable Lenath:: 3 meter (std.)
• Sensor weicht:: 600 gm (anorox.)

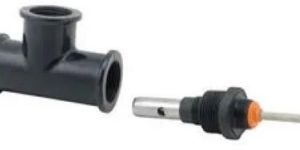

VATS Conductivity/Resistivity sensors are designed to provide versatile installation and accurate sensing across a very broad dynamic range. Coupled with VATS meters a range with ±2% of reading accuracy is achieved without the need for troublesome sensor platinization. Standard wiring allows connection without costly "patch cords."Features:• Flow-through design eliminate bubble entrapment or sediment build-up • Controlled surface finish ensures accuracy and repeatability • Removable sensor fitting design • Built-in strain relief • Proper electrode clearance reduces possible 01 resin or particle entrapment, critical with 0.01 cell designs • In-line or submersible mounting • PTFE insulatorApplications• Pure Water Treatment* Reverse Osmosis * De-ionization * Distillation• Boiler Condensate• Semiconductor Water Production• Rinse water monitoring and control• Chemical Concentrations• Cleaner and Degreaser Concentrations• TDS• Salinity• USP Purified Water and WFI Water Production

We are offering kwh meter. Saisha electricals offers solutions in energy audit, monitoring and automation. We deal with high end industrial meters and power analyzers. We also offer ac drives and complete automation solutions with plc's, process instrumentation and scada systems to suit the application. We have been appointed as an authorized distributor of m.b.control and systems pvt ltd, a system integrator for “satec”, israel make multifunction meters, power analyzers, and ems systems.

• Application: Industrial
• Brand Name: Microverse
• Available models: Wired and wireless

• Range: : 10 to 200 g or 50 to 500 g – any value can be set on instrument / PC
• Indicating Accuracy: : ± 0.2% of fsd for weight , ± 0.1 s for time
• Resolution: : 0.1 g for weight , 0.1 s for time
• Setting of Time/Weight: : Special function keys on the keypad
• Disply(for Weight/time): : LED
• Time base: : Crystal Oscillator
• Alarms: : For high and low fuel levels with trip at high level.
• PC interfacing: : Thru’ RS 485 (for actual weight consumed & fuel consumption time)

The Gravimetric Fuel Consumption Time/Weight Indicator essentially comprises a unit which senses weight of fuel being consumed by the engine under test and an indicator-cum-controller to set either quantity of fuel in grams or time in seconds to display time required to consume set quantity of fuel or display quantity of fuel consumed in the set time. The indicator comprises a keypad to set weight or time and LED display for the indication of fuel weight, fuel consumption time and fuel flow. The electronic circuit in the indicator ensures that the level of fuel in the glass container is maintained within the minimum and maximum level (internally set).

• Ambient Temperature: 0 ° C + 60 " C
• Switching Unit: Micro controller Based.
• Mains Voltage: 65-265 V AC, 50HZ/18-36 V DC
• Power consumption: 2.5 VA
• Safety operation: Field selected switch over for minimum or maximum (FSL/FSH) switching points.
• Switch status display: LED L1 to L4 for four points of level Alarm and L5 for power ON/ timer.
• Features: No moving part, free from maintenance.

• Application: Industrial
• Brand Name: Microverse
• Available models: Wired and wireless

• Color: White

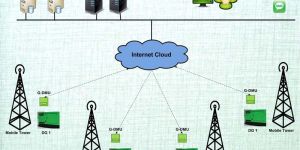

Gems energy monitoring system provide real time live energy monitoring of renewable energy sources which can monitor 247 live energy information from various renewable energy production source like wind , solar , sea tide.gems gives you a simple, detailed and cost effective real time monitoring solution for your renewable energy production. It�s easy to access live information 247 visualize, measure, analyze energy performance data, compare energy output to expected return and control system if required via our remote web-portal. There is no need to install any specialist software � only you need is a web browser get access to your assets and site data through our gems panel in real-time anywhere and anytime.

• Accuracy: + -2 percent
• Features: LCD to show some logging information easily,Download collected data through PC s USB
• Model Name/Number: DL 162
• Type Of Data Logger: Wireless Data Logger
• Usage/Application: Industrial
• Interface: DIGITAL
• RH: SELECTABLE
• Measuring Cycle: 1 sec to 24 hours
• Measurements Range: 0 to 100 percent

• Display Type: Digital
• Type: Portable
• Application: Industrial
• Indicator: Temperature Indicator
• Durability: Long Life
• Surface Finishing: Polished

Easy to operate ultrasonic wall thickness gauge • Suitable for various materials such as steel, stainless steel, aluminium, glass, polystyrene, polyethylene • Memory of 4000 readings with location number, with data output to pc or printer • Average calculation of max 9 readings • Limits setting Low-High; indication direct on display • Standard 5.0MHz transducer included, optional transducers 7.5MHz, 2.0MHz, 5.0MHz high temperature • Sound velocity range 1000 up to 9999ms • Clear 4-Digit LCD display with settings • Display resolution selectable at 0.1mm - 0.01mm -0.01 - 0.001 inches • Fast calibration on integrated standard block of 4.00mm (5920ms steel) • Backlight display for dark environment

• Material: Mild Steel
• Electronics Enclosure: Yes
• Frequency: 50Hz
• Voltage: 230V AC
• Flow Range: 0.25-1.2 m3/h
• Output: 4-20mA

• Model Name/Number: GLOSS METER
• Usage/Application: Industrial
• Brand: 3NH
• Weight: 350 g
• Battery Capacity: 3200mAh Li-ion Battery, >10000 times (within 8 hours)
• Measuring Geometry: 20 D : 0

Our firm is instrumental in manufacturing and supplying the best range of Data Loggers. Only quality tested raw material & modern technology used while manufacturing the entire range of products. The offered range of products is highly appreciated all over the country for their salient features. With our quality range, we are capable to maintain a strong foothold in the market. Features: Reliability Durability Perfect finish

Magnetic Flow Meter To have complete control of the utilities in the plant, it is very important to measure & monitor their consumptions. Steam being the one of the costly utilities in the process plant a proper measuring system must be in place. Unless & until we monitor, we cannot optimize its usage. We offer Vortex type flow meters for the steam measurement, Electromagnetic flow meters for the flow measurement of water, milk etc. Electro-Magnetic Flow Meter A magnetic flow meter (Mag flow meter) is a volumetric flow meter which does not have any moving parts and is ideal for wastewater applications or any liquid which is conductive or water based. Magnetic flow meters will generally not work with hydrocarbons, distilled water and many non-aqueous solutions. Magnetic flow meters are also ideal for applications where low pressure drop and low maintenance are required. Principle of Operation The operation of a magnetic flow meter or Mag meter is based upon Faraday's Law, which states that the voltage induced across any conductor as it moves at right angles through a magnetic field is proportional to the velocity of that conductor.   Benefits Electromagnetic Flow Measuring devices offer you cost-effective flow measurement with a high degree of accuracy for a wide range of process conditions. The uniform Proline transmitter concept comprises:   High degree of reliability and measuring stability Uniform operating concept The tried-and-tested Mag sensors offer:   No pressure loss Not sensitive to vibrations Simple installation and commissioning

• Application Media: Gas
• Brand Name: DIG
• Color: Black
• Display: Digital
• Ambient Temp.: -5 to +50 degree C

• Features: Wireless, Optimum yield, Efficient, Durable, Resilient, Affordable rate.

12 V DIGITAL BATTERY TESTER FUNCTIONS Battery test Starting system test Recharging system test: TETECHNICAL FEATURES Power supply: 12 V Width: 120 mm Height:215mm Depth: 2B mm Weight: 350g 10005 USB/RS232 ADAPTOR It allows the connection of diagnostic units equipped by or serial port only to PC exclusively provided with USB port. KIT BLUETOOTH Blue-In 10001/96 Kit Bluetooth 9600 baud rate Blue-In. 1 0001/192 Kit Bluetooth 19200 baud rate TECHNICAL FEATURES:- Mains Voltage: + 5 Vdc Power Consumption: 70 mA Max distance in open space: 100 m Baud rate: 9600,N,B.1 or 19200,N.B.1 Dimensions: 5B x33 x 16 mm 10001/96 connectable to items: B020, 9010. 700NET, B040. B050,B060, B070,B071,9011 10001/192 connectable to items: 5BOO, 5B20, 5B21 For a correct working also the dongle for the PC Blue-Out mod. 10000 is available. KIT BLUETOOTH FOR PC 10000 is equipped with:- USB keys, CD with the software necessary for the operation, . Detailed instructions for a correct installation Operating system: Windows 9B II edition or following . Max distance in open space: 100 m.

FEATURES MAG3110 3-axis magnetometer UEXT connector Cable Size: 29 x 18 mm (1.1 x 0.7")

We are engaged in manufacturing and supplying wide range of digital multimeter that are manufactured from quality-tested components.Features• 3 ½ , 4 ½ Digit Display with Averaging and TRMS Measurement• Min, Max, Data and Range Hold with Relative Measurement Facility• AC/DC Voltage & Current, Resistance, Frequency, Capacitance, Diode & Continuity• Auto Ranging & Auto Power off

• Features: Offset/gain controls,Self contained globally compatible power supply,Integral summing amplifier for thickness output
• Power Supply: 85-265 V AC
• Accuracy: 0.02% FSR RMS
• Interface: 2.0 USB

• Features: High efficiency , Maintenance free , Simple usage, Rugged structure ,Longer working life , Competitive rates.

• Application: Industrial
• Weight: 0.4 Kg
• Country of Origin: Made in India
• Brand Name: LPI
• Features: Long operational life, Impeccable performance , High functionality , Sturdiness
• Model Name/Number: LSR 1
• Ip Rating: IP 67
• Usage/Application: Industrial
• Display: Digital
• Dimension: 80x82x65 mm
• Current: 1500 A
• Operating Temperature: 15 Degree Celsius

• Driven Type: Electric
• Type: Switchgear
• Model Number: UST-2000
• Brand Name: Crest Test Systems Pvt.Ltd.
•  :
• Display: Touch Screen LCD
• Command Duration: 1-999 ms
• Minimum Order Quantity: 1 Unit

Static contact resistance measurements are essential to check the health and functionality of the main contacts of the circuit breaker. If the contacts are not in a good condition there can be arcing and single phasing. Due to oxide depositions and absorption of moisture, the contact resistance often increases. This leads to I2R losses in the contacts due to hot-spotting when the circuit breaker is closed. MVT Contact Resistance Meter uses Kelvin’s 4-wire method to accurately measure the static resistance of the circuit breaker main contacts. It has a built-in continuous DC source of up to 200A and performs resistance measurements in the micro-ohm range by measuring the millivolt drop in the contacts. MVT is compact and portable, which allows it to be taken on-site for field testing requirements. It is suitable for measuring the contact resistances of vacuum circuit breakers, high voltage circuit breakers, extra high voltage circuit breakers, isolatorsdisconnectors, bus bars, and many other components used in power transmission and distribution.
