Electronic Tool Dealers in Pune

TOTAL DIAGNOSIS FOR ALL ELECTRONIC SYSTEMS TECHNICAL FEATURES: Power supply: 8-45 Volt (through diagnosis socket or external power supply] Display: Touch-screen system: 320 x 240 pixel back-lighted LCD graphic Serial port: 1 standard RS232 (for PC, 24 columns serial printer or modem connection] Program memory: internal FLASH up- datable through serial port Protection key: Software enabled by smartcard Interface protocols: Keyword 2000, IS09141-2 SAE J 1 850 41.6 Kbps PWM (Ford] SAE J1850 10.4 Kbps VPW (GM, Chrysler) CAN BUS and others Manufacturers specific protocols. Stored errors cancellation Service lights zero-setting ECU coding Reset of self-adjusting parameters Diesel pump advance Driver's seat Central lock-up Parking aid Dash board Navigator Power steering Radio control Sound system Fuel level Luminous beam USB/RS232 Adapter 10005 Thermic printer 5810 Ecu Socket browser (Cd-Rom] 5606 USB/LPT Kit Bluetooth 10001/192 FUNCTIONS:- Automatic ECU selection Basic level diagnosis: errors, parameters, settings, actuators, etc. Diagnosis: EOBD, OBDII, CAN BUS Petrol and diesel engines electronics ABS Airbag NC Gearbox Suspensions Drive control Four driving wheels Body Computer Parking aid Electric sliding roof Steering wheels electronics Heating ON / OFF Clutch Tyres pressure control Electronic commutation board Right/left light modulation Immobilizer

• Weight: 1 kg approx. [tool only, without accessories)
• Condition: Good

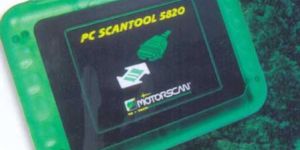

• Product Name: Diagnostic Electronic System
• Dimensions: 240mm x 190mm x 50mm
• Brand Name: N. P. Electronics
• Place Of Origin: Pune,Maharasthra

We are offering total diagnosis electronic technical features dimensions: 240mm x 190mm x 50mm weight: 1 kg approx. [tool only, without accessories) power supply: 8+45 volt cc typically 12 volt from diagnostics socket or vehicle battery with supplier power consumption: 3w@12v working temperature: 10-40 °c serial: rs232 - for host connection and sw update interface protocols: iso 14230-4 [keyword 200m is09141-2 is011519-4 [sae 51850 41.6 kbps pwm) [sae 51 850 1 0.4 kbps vpw) is015765-4 [can bus) safety key: hw with protected smartcard: option to use like pre-paid card for upgrades; possibility to enable the remote control multibrand diagnostics: thanks to the multibrand cables supplied with the tool it is possible to carry out the diagnosis of all car brands. accessories switching power supply 15vdc-1 a with net cord serial cable for sw updating and for the connection to the pc "obo cable I fiat cable I opel cable I psa cable renault vag cable I ford cable I bmw cable I rover cable universal cable I mercedes cable psa2 cable cod. cd including all motorscan user's manuals in pdf format ecu socket browser 5606usb anti-shock case functions and adjustments refer to the functions adjustments of totaldiag 5800 pag 6. optional accessories usbrs232 adapter 10005 I kit bluetooth 10001192
