Electronics Systems & Devices Hadapsar, Pune, Maharashtra

Real Time Data Logging has never been so easy and straight-forward. With ESD's USB Pen Drive based Data Logging unit, just plug in the Pen Drive and leave the rest to the unit.

Compensating cable Different conductors sizes, individual and overall insulation like PVC, Teflon, Fibreglass, Asbestos are available with and without metal braiding. Aluminium Flange Pipe holding hole – 6,8,10,12,19 mm Male – Female Connectors 12 , 34 and 1″ BSP, NPT Male Female in SS

Material : SS. 304,316,310 & Inconel 600

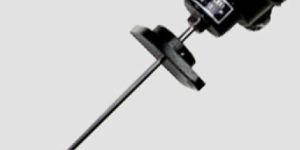

ESD offers wide range of thermocouples to suit various applications,& temperatures in different shapes, sizes & construction. Thermocouple is a temperature sensor which converts thermal energy into mV proportional to the difference between the two junction. These junctions are a pair of dissimilar alloys which operates on the principle of 'Seebeck Effect'.

Type : Fe-Co / Cr-Al / Pt-Pt 13% Rh / Pt-Pt 10% Rh

ESD’s 901 temperature indicators series is used to monitor temperature or any process value from long distance. They are characterised by supersize display. User can select display size as per viewing distance. * Min, Max Indicators are suited for meterology applications. * Peak hold model is suited for foundry applications.

Model Number : ESD 901A, Sleek 901B, Sleek 901C, Sleek 901D, Sleek 901E

Power Supply : 230 V AC, +/- 10 % , 50 Hz with Earth

ESD's signal isolators are suitable for connecting field signal from sensors to PLC's with isolated ground loop. These isolators prevent noise and RFI EMI interference being transmitted to the instruments.

ESD’s microcontroller based Sleek 100 is a handheld type portable temperature indicator. It is used for momentory measurement of field temperature. Input signal linearisation results in higher accuracy over the entire range for the most non-linear sensors.

Size : 100 x 65 x 25

ESD’s 310 is a portable battery operated calibrator suitable for calibrating field instruments. This can feed as well as measure mV, mA and resistance inputs. These calibrators are characterised by highly stable and precise output.

These panels are interface type panels useful for connectivity between field contacts and drivers. Control of the PLC can either be local or remote through the computer.

ESD offers Platinum resistance bulbs (Pt 100) in simplex & duplex types having variety of shapes, sizes & construction to meet every application. Pt 100 is Resistance Temperature Detector (RTD) with positive temperature coefficient which changes its resistance proportional to the temperature as per the chart given below. These are most stable, accurate and linear temperature sensors.

Type : Platinum Resistance Bulb

ESD offers Multi Spot Temperature Sensors (MSTS) for sensing temperature at different levels in bulk liquid storage tanks. No. of elements and length of the sensors is designed to suit the tank size. Each element gives independant resistance output proportional to temp. as per DIN 43760. These are also available with water bottom sensors which are used to measure the water levels in storage tanks.

ESD's 90 manual temperature scanner series is for accurate & fast measurement. It accepts input from 2,6 or 12 temperature sensors and connects one at a time with Gold plated selector switch for indication. This is used for economical measurement of multi location temperatures.

Model Number : ESD 9020 / ESD 9043 / ESD 9066

ESD's make 90 series temperature indicator is suitable for continuous measurement of 2 or 4 channels at a time in a single unit.

ESD’s Temperature Sensor range includes standard, flameproof as well as mineral insulated type Platinum Resistance Bulbs and Thermocouples along with bar-stock and fabricated Thermowells.These Sensors and Thermowells are available in various shapes, sizes and sheath material for different applications.

These panels are useful to monitor and control process parameters like temperature, pressure, flow etc. Input signal from the sensors is connected to the panels through isolation or compensating cables.The output from the panel is connected to the final control element for controlling the process value. Various interlocks and safety audio visual alarms are provided through Alarm Annunciators or PLC's. Total process simulation can be shown on

ESD’s Temperature Sensor range includes standard, flameproof as well as mineral insulated type Platinum Resistance Bulbs and Thermocouples along with bar-stock and fabricated Thermowells.These Sensors and Thermowells are available in various shapes, sizes and sheath material for different applications.

ESD's make 90Exp series is suitable for temperature measurement in the hazardous environment. The enclosure is certified by CMRI, Dhanbad.

The ESD 90F series Digital temperature indicators are designed for fast and accurate temperature measurement. The instrument is designed using highly reliable electronic components. The process temperature is displayed directly in digits, which gives better resolution compared to analog indicator. The ESD 90F series accepts all types of Thermocouples, Pt – 100, 0 – 20 mA as well as 4 – 20 mA as input .

Model Number : ESD 90F

Ambient Temperature : 0 to 55 deg. C

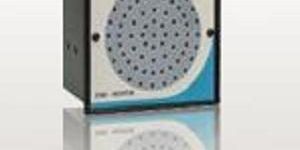

ESD's Industrial Hooters are for giving a audio alarm signal when fault occurs. These can be connected to the output of alarm annunciator, controllers or to limit switches. These Hooters are known for continuous duty cycle. Different models like Power Hooters and Audio Visual hooters are available as per application.

In continuation to the development to its Datalogger series, ESD has introduced the Printer based datalogging product with a robust and built-in printer, making datalogging easy.

Real Time Data Logging products from ESD are know for its reliability. Ever since it was first introduced in the market in 1996, there has been many enhancements carried on it. The PC end software has recently undergone a major revamp. Now get data output in Excel, PDF, Graphs exported to images. All this with compact design, excellent user-friendly software and robust programming makes ESD Data Loggers best in the class product.

ESD’s Temperature Sensor range includes standard, flameproof as well as mineral insulated type Platinum Resistance Bulbs and Thermocouples along with bar-stock and fabricated Thermowells.These Sensors and Thermowells are available in various shapes, sizes and sheath material for different applications.

ESD’s Temperature Sensor range includes standard, flameproof as well as mineral insulated type Platinum Resistance Bulbs and Thermocouples along with bar-stock and fabricated Thermowells.These Sensors and Thermowells are available in various shapes, sizes and sheath material for different applications.

ESD’s Industrial Hooters are for giving a audio alarm signal when fault occurs. These can be connected to the output of alarm annunciator, controllers or to limit switches. These Hooters are known for continuous duty cycle. Different models like Power Hooters and Audio Visual hooters are available as per application.

ESD’s microcontroller based Alert series mimic type wall mounting Alarm Annunciators are used to give signals for audio visual indications of the fault condition. These Annunciators can be connected to potential free field contacts or signals from PLC’s. User can connect super bright RED LED’s which are mounted on the Mimic. These annunciators along with the mimics helps in visualising the online plant status.
