Emitting Electrode Dealers in Pune

• Efficiency: 99%
• Volume Range: 1000 – 10,00,000 m3/hr
• Temperature Range: 45-1200 Deg Celcius
• Outlet Emission: 10mg/Nm3 to 15 mg/Nm3
• MOC: M.S/S.S

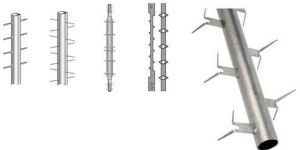

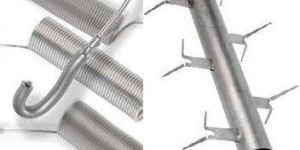

Tips of nails never get coated as they are away from the Pipe. Free to expand as well as vibrate at one end. Increasing rapping efficiency. Design can be accommodated in any framemake. The sharp nails possess higher corona generating ability as compared to any other emitting electrode geometry. The desired corona level can be achieved by welding desired amount of nails on the pipe. The desired corona field can be produced by welding nails of desired lengths. The desired field strength can be achieved by welding the nails at a par-ticular angle Corona generates at lower voltage which increases the level of useful power being fed to the ESP.

The ionisation process is governed by corona generation in an esp. The specially designed pipe & spike emitting electrodes can generate desired amount of corona for a particular application. The nails welded to the pipe provide sharp points for higher corona emission. The number of nails per meter of electrode decides the corona density. With our experience in various applications we can engineer correct characteristics of corona densities. The corona density requirement changes from first to last field and a suited design for individual filed is engineered. A continuous fabrication line produces high quality electrodes as per the desired user specifications.
