Encoder Accessories Dealers in Pune

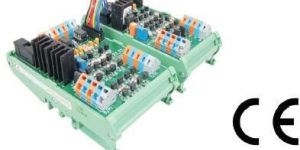

Encoder Splitter Multiple Outputs

Get Price Quote

Feature Input signals 3-10 or 10-30VDC 10 Encoder output sets from single encoder input Sink Source Push pull Open collector (Transistor) outputs. Supply voltage 24-30 VDC@1Amp· Output pulse voltage 51024 VDC as per customerâ��s requirement. Each output can drive150mA load.  Din rail mountable

Encoder Splitter Multiple Outputs

Get Price Quote

• Input signal voltage: :3 VDC-30VDC, available is 2 varients 3-10VDC/10-30VDC
• Max. input current: 5 mA
• Max. output voltage: 30 VDC
• Max. load per output point: 150 mA

Encoder Splitter 1000KHz Multiple Outputs Multi output Encoder splitter:-This product is in modular form and has master card and slave card.Maximum four cards can be cascaded on single master card.Master Encoder splitter receives four signals from increamental encoder or simulated encoder output from servo drive and converts these signals in to two sets of encoder signals viz +A,-A,+B and -B.The output signals are optically isolated from the input signals. Slave Encoder card receives four encoder signals from master encoder card and gives two sets of of encoder signals viz +A,-A,+B and -B. Feature Input signals 3-10 or 10-30VDC 10 Encoder output sets from single encoder input Sink Source Push pull Open collector (Transistor) outputs. Supply voltage 24-30 VDC@1AmpÃ�· Output pulse voltage 51024 VDC as per customer�s requirement. Each output can drive150mA load.  Din rail mountable
