ESP Insulators Dealers in Pune

• Material: Porcelain and ceramic
• Length: 15-20cm
• Thickness: 10-20 mm
• Surface Treatment: Coated

these ESP Insulators is for providing mechanical support as well as electrically isolating discharge electrodes from collecting curtains as well as grounded ESP casing because of their high voltage.The insulators are strictly in conformation with international quality norms and standards.

• Application: High-voltage
• Color: Available in Many Colors
• Tensile Strength: 125-150Mpa
• Feature: Easy To Install, Water Proof
• Warranty: 5years
• Temperature: Medium Temperature, High Temperature
• Surface Treatment: Color Plated

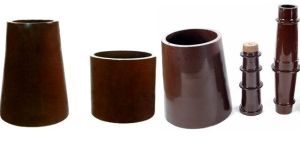

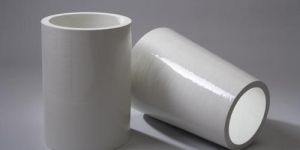

Insulators physically support and electrically isolate the high-voltage system from ground. These are available in 2 types of material of construction A. Porcelain B. High Alumina (83 to 85% alumina)   The Porcelain (brown colour) Insulators are suitable for applications such as Cement Mill or Coal Mill ESPs where the operation and occasional surge temperatures do not cross 230 to 250 Deg. C. The High Alumina (white colour) Insulators can withstand temperatures upto 400 Deg. C and is a technically recommended product for Boiler (coal or oil fired applications), Clinker Cooler and Kiln ESP applications.
