Flanged Ball Valve Dealers in Pune

We are offering high performance flange ball valves. product feature extra high cycle life provided by spherical segment stem self-adjusting stem seal automatically adjusts seal to compensate for were temperature, and pressure fluctuations. Blow-out proof stem body construction in investment cast anit-static device three-piece swing out design for in-line maintenance iso 5211 mounting dimension for easy automation double body seal feature to suitable for high pressure. Air cushioned handle sleeve for confortable manual operation.

Design Standard: IS 9890-1981?Pressure Testing: BS 6755 Part I/API 598/IS 6157-1981Flange Dimensions: ANSI B 16.5Face to Face: ANSI B 16.10./IS 9884-1981 Available in CS Body Model: Carbon Steel Flanged Ball Valve(FB)(Three Piece Design) Part Number: 1312 to 1315 Specifications DetailsNo.,Name of the OR component,Quantity,Material of OR construction1,Body,1,Carbon Steel2,Flanged End,2,Carbon Steel3,Ball,1,AISI 304 / CF84,Body Gasket,2,P.T.F.E5,Seat,2,P.T.F.E6,Body Stud,4/6,Carbon Steel7,Body Nut,8/12,Carbon Steel8,Stem,1,AISI 3049,Stem Seat,1,P.T.F.E10,Lever Stop Plate,1,Carbon Steel11,Gland Nut,1,Carbon Steel12,Gland Packing,1,P.T.F.E13,Stop Pin,1,Carbon Steel14,Lever,1,Carbon Steel15,Lever Nut,1,Carbon Steel16,Sleeve,1,P.V.C17,Gland,1,Carbon Steel DetailsSizes,Sizes,A,B,CØ,D,E,F,GØ1,25,127,11.5,25.4,63,82,150,1081½,40,165,14.5,37.5,74,93,175,1272,50,178,15,50,88,110,225,152.43,80,203,19,75.4,109,132,325,190.54,100,229,24,99.5,141,162,400,229 Pressure TableClass,Test,Medium,Min OR (PSI),Min OR (BAR)150,Shell,Hydrostatic,440,31,Seat,Hydrostatic,300,21,Shell,Air,85,6

Design Standard : IS 9890 - 1981Testing Standard : IS 6157 - 1981

• Brand Name: GEMINI VALVES

We are the renowned Manufacturer and Supplier of Flanged End Class 150 Ball Valve, based in India. Our range of Flanged End Class 150 Ball Valve is appreciated by our clients nationwide for its fine quality. The Flanged End Class 150 Ball Valve can be availed from us at reasonable prices. Attributes Durable Easy to install Anti-static device Blow-out proof stem Split body design facilitates inspection and repair Specifications Extra high cycle life provided by spherical segment stem Investment cast body construction ISO 5211 mounting dimension for easy automation Fire safe in compliance with API 607 Triple stem sealing above 2" size Air cushioned handle sleeve for comfortable manual operation

• Brand Name: UNIQUE
• BLACK: ANY COLOR

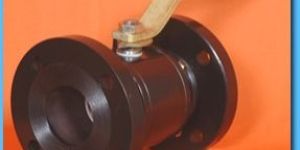

Our organization is counted among the most distinguished manufacturers and suppliers of finest quality 3 piece design ball valve. These products are manufactured using high grade raw material that is sourced from the registered vendors of the market. Our range is available with a heavy directional lever handle with a great compact design. The floating ball in the valve helps in easy movement of ball with minimum torque. Moreover the blow out proof stem design ensures maximum safety during high pressure. Three piece design facilitates easy maintenance of ball valve without disturbing the existing pipe line. Apart from this, we offer these to the clients at market leading prices. Ball valves are available in screwed / socket weld & flange ends.

Carbon Steel Three Piece Design Flanged Ball Valve, Lpg Cylinder Valves
