Flap Valves Dealers in Pune

We are leading Supplier & Manufacturer for the Industrial Flap Valves which also includes Flip Valves since 2010 We are Offering Flap Valves, Bolt cover,structure of flip-chip balance able pressure and light on/off operation.An oil grove is set between valve body and seal surface,which may infuse the seal grease to increase the seal capability.

Double Cone Flap valves are used for controlled feeding as well as achieving air lock sealing. These valves consist of two independent Cone Flap valves mounted one upon other with their opening and closing alternated and synchronized to ensure that only one valve opens at a time. DEMECH manufacture these valves to suit the opening sizes and required through-put rate. The through-put of these valves depend on the holding volume of the upper valve chamber and the rate of operations.

• Type: Double Flap Valve
• Material: Carbon Steeel, Metal, Stainless Steel
• Length: 100-200cm, 200-400cm, 1000
• Application: Industrial Use
• Color: Black, Blue
• Feature: Durable, Easy Maintenance., Rust Resistant And Unmatched Quality
• Pattern: Plain
• Condition: New
• Structure: Vertical
• Warranty: 1yr
• Automation Grade: Automatic, Manual
• Country of Origin: India

Whizz Engineering Services Pvt. Ltd. is one of the leading manufacturer and supplier of highly double flap valve in Pune. Double flap valves are a type of airlock valve commonly used in industrial applications as a component in bulk material handling applications. Double flap valves are primarily used to discharge chunky or fibrous, bulk materials from hoppers, bins, and cyclones operating under positive or negative pressure. Clients can avail this double flap valve at very reasonable rates.

Double Cone Flap valves are used for controlled feeding as well as achieving air lock sealing. These valves consist of two independent Cone Flap valves mounted one upon other with their opening and closing alternated and synchronized to ensure that only one valve opens at a time. DEMECH manufacture these valves to suit the opening sizes and required through-put rate. The through-put of these valves depend on the holding volume of the upper valve chamber and the rate of operations. These are very slow operating valves as the operation cycle rate does not usually exceed beyond 6 cycles per minutes. Thus these valves have a batch feeding pattern rather than continuous feeding. Selection of Cone or Flap depends on the characteristics of material to be handled and system requirement like pressure sealing. Cone valve has a better sealing than the Flap valve. However, in smaller size valves the Cone can act as an obstruction in the flow resulting in clogging of the small opening. The Cone valves usually have round opening whereas the Flap valves can have square.

• Material: MS
• Brand Name: Rico
• Size: DN140
• Flange Standard Conformity: ANSI Flanges
• Valve Type: Isolation
• Surface Finish: Powder Coated
• Valve Size: 3.5 inch

The Flap Type Gravity Diverter comprises of flap enclosed in body which is key component in supporting diversion of product. This arrangement is used when product coming from top of diverter is to be diverted in vertical direction and angle between diversions of valve is up to 30˚ and 60˚. In above case, only one diversion is in operation and other is closed. In other words, the material can be conveyed from inlet to straight position or inlet to diverted position of diverter at a time. The basic design is for diversion of product coming down due to gravity.

Indpro Diverter Flap Valves are manufactured using CNC laser cut portion. The flap is either activated by a manual lever, a pneumatic or an electric actuator.   FEATURES Indpro Diverter Flap Valves have one inlet and two outlets for the diversion of the flow of powdery or granular materials. Materials used enable quick cleaning and maintenance. Rubber type seal ensure minimum leakage & minimum residue

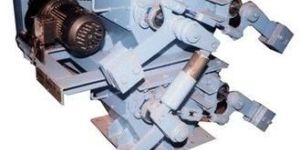

Double flap valve is continuous material discharge equipment. Double Flap Valve has a two door flap plate which open and close alternatively.

• Material: Stainless Steel
• Brand Name: iDivert - Indpro Engineering Systems
• Color: Blue
• Country of Origin: Made in India
• Size: 50 NB to 200 NB

Double flap valve is continuous material discharge equipment. Double Flap Valve has a two door flap plate which open and close alternatively. As the material falls on the top plate, during continuous operation the plate opens and discharges the material on the bottom plate. After discharging the material the top plate closes. This ensures that the DFV is sealed to prevent air leakage. The bottom plate then opens after the top plate is closed and allows material to fall onto onward collecting equipment. The cycle time is precisely adjusted such that after the bottom plate closes the top plate opens. Thus ensuring continuous air sealing across the DFV. The time for which both flap are in closed condition, is known as dwell time.

We are offering double flap valves.

Flap Valve, Double Flap Valves, flap diverter valve, slide gate valve

double flap valve, slide gate valve, Butterfly Dampers, poppet damper

Double Flap Valves, FRP Scrubber, Gas Scrubber, Wood Dust Collector

double flap valve, Cast Basalt Pipe, Enmasse Conveyor

Gravity Operated Double Dump Flap Valves, Bag Filter Fans
