Flow Systems Kondhwa, Pune, Maharashtra

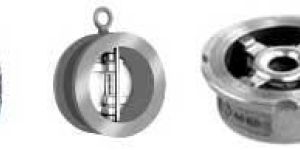

We bring forth the Wafer Check Valves of premium quality that are automatically operated. These Wafer Check Valves have two openings in the body. One opening is used for fluid to enter and the other is used for fluid to flow out. Wafer Check Valves allows the fluid to flow in one desired direction. Thus, Wafer Check Valves are designed for a specific cracking pressure. Variety : Wafer type check valveNon slam check valveDual plate check valve Technical Specifications : Sizes :1” to 24” ( 15mm to 600 mm) Material Used :Carbon SteelStainless Steel Alloy SteelRating (Class) :PN 10 & 16End Connections :Wafer Type Suitable to mount between Class-150, 300, Bs 10 T-D, E, F

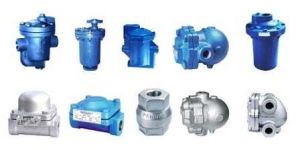

We offer high grade Steam Traps that are available in various sizes. The different size availability is suitable to be used in different temperature conditions and pressures. These Steam Traps of our company can be availed in the ball float type at highly affordable prices. Approved By : EILUHDETOYOLURGIOEMS viz THERMAXKruppEnd Users viz. IOCL, HPCL, BPCLTrunkey Contractors viz. L & T Technical Specifications : Pressure : From 21 kg/cm2 to 150 kg/cm2Sizes : From 1/2” to 1” ( 15 mm to 25 mm) Material used : Carbon Steel , Stainless Steel, Cast Iron, Alloy SteelTemperature : Up to 537 deg. centEnd Connection : Screwed Ends, Flanged Ends and Socket Weld Ends

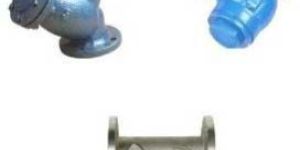

The Industrial Strainers available with our company are widely used in course filtration. These Industrial Strainers can also be used with fine mesh as they possess large filtration area. The Industrial Strainers that we manufacture and export are highly appreciated by the customers across the country. Variety : Cast Iron StrainersCarbon Steel Y Type StrainersPot Strainers Technical Specifications : Material used :Cast IronBrassCarbon steelStainless SteelRating (Class) :PN 1.0,1.6Sizes :From 1” to 24” ( 25 mm to 600 mm) End Connection :Screwed and Flanged EndsDrilling :As per BS 10 T-D, E, F and as per customer specification

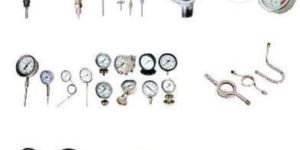

We provide Industrial Gauges of varied sizes keeping in focus the demands of all the clients. As an OEM supplier, we cater to the needs of THERMAX, Sugar Industries, GAIL, Boiler Manufacturers and others. Our Industrial Gauges are widely demanded amidst the clients. Availability : Pressure GaugesTemperature Gauges Stainless steel castingsDial size of 63 mm to 250 mm Technical Specifications : Internals :Stainless steel, BrassPressure Range :Up to 600 Kg/cm2Connection Type :Bottom ConnectionBack ConnectionPanel Mounting

We supply Forged Steel Gate Valves with IBR as well as Non IBR certification. The Forged Steel Valves we offer are available with Satellite Wedge/Disc, Seat Ring & Back Seat. Extended bonnet, Locking Arrangement, etc. are also made available on special request from the client’s side. Features : High quality forging usedPrecision machined forgingsHigh performanceControlled clearance between stem, gland and bonnet bushingLeakage proof Body-Bonnet Joint With Spiral Wound GasketLow emissionsSuitable for higher temperatureMaximum long packing lifeEasy access to the stuffing box Components : Body-Bonnet Joint Spiral Wound GasketDie molded Graphite (Grafoil) Packing RingsSwinging Eye Boltscontrolled clearance between stem, gland and bonnet bushingDeep stuffing box Technical Specifications : Sizes :From ½” to 2” ( 15mm to 50 mm) Bore type :Reduced boreFull BoreMaterial Used :Carbon SteelStainless SteelAlloy SteelRating (Class ) :150300600800 15002500End Connections :Screwed EndsSocket Weld EndsWeld-On-FlangeButt Weld EndsOperations :Hand wheelElectric Actuator

We provide Cast Steel Gate Valves with or without IBR certifications. Cast Steel Valves are available in both bolted as well as pressure seal design. Cast Steel Valves are available with extra deep stuffing box that ensures fluid tightness and long packing life. Cast Steel Valves have bonnet joint with Spiral Wound Gasket because of which they are highly demanded by the clients. We also offer Satellite Wedge/Disc, Seat Ring and Back Seat on special request of the customers. Attributes : Precision machined forgingsHigh performanceLeakage proofControlled clearance between stem, gland and bonnet bushingLow emissionsSuitable for higher temperature up to 425oC Variety : Cast Steel GateGlobeNRVIBRNon IBR Technical Specifications : Sizes available :From ½” to 16” ( 15mm to 400 mm) Operations :Hand wheelGear OperatedElectric ActuatorMaterial used :Carbon SteelStainless SteelAlloy SteelRating (Class) :15030060015002500End Connections :Flanged EndsButt Weld Ends

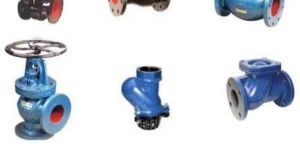

We are offering cast iron valves. Available with us a wide range of ISI marked Cast Iron Valves that is widely demanded amidst the customers. Our range of Cast Iron Valves is perfect to be used in varied applications like those of water, sewage and neutral liquid, etc. Variety : Cast iron sluice valveGlobe valveNon return valveBall type nrvFoot valvesKnife edge gate valve Technical Specifications : Sizes available :From 1” to 24” ( 25 mm to 600 mm) Material used :Cast IronRating (Class ) :PN 1.0,1.6End Connections :Flanged endsDrilling :As per BS 10 T-D, E, F As per customer specificationOperations :Hand wheel OperatedGear OperatedElectric Actuator

We are offering Butterfly Valves that are perfect to be used in varied applications like those of petrochemical industries, oil industries, chemical services, etc. Our Butterfly Valves can be availed with small dimensions and are perfect to be used in areas of limited space. Butterfly Valves of our company consist of a metal circular disc along with pivot axes at right angles to the direction of flow. Butterfly Valves offered by us are used as throttling valves in order to control flow. Variety : Double Eccentric Disc Butterfly ValveTriple Eccentric Butterfly Valve Attributes : Compact and light-weightGives reliable positive isolation Moderate flow control capabilityFire safetySuitable for actuationAllow a high coefficient of flowDo not have any pockets Technical Specifications : Material Used :Cast ironCarbon steelStainless steelAlloy steelEnd connections :Double FlangWafer typeSuitable to mount between class-150, 300, bs 10 t-d, e, f etc. Sizes :From 11/2” to 24” ( 40 mm to 600 mm) Seating :Metal to metalElastomer NitrileEpdmHypalonsiliconVitonRating (class) :PN 6,10 & 16Operations :Lever operatedPneumatic actuatorElectric actuator

We provide Brass Valves that are used in petrochemical industries, oil industries as well as in chemical services. These Brass Valves have small dimensions so as to fit in the limited space. The Gunmetal Brass Valves consists of a metal circular disc and pivot axes at right angles to the direction of flow. Attributes : Compact and light-weightGives reliable positive isolation Moderate flow control capabilityDo not have any pockets to trap fluidFire safetyAllow a high coefficient of flow Technical Specifications : Operations :Manual OperatedRating (Class) :PN 10, 20 & 40Size :From 1/4” to 6” (6mm to 150mm)Material used :BrassGun MetalSeating :Metal to MetalPTFE Soft seatEnd Connections :Screwed EndsFlanged Ends

Avail from us high quality Ball Valves that are highly acclaimed for their antistatic designing, easy cleaning, appropriate adjustments, smooth operation as well as less wear. Other unbeatable features that make our Ball Valves demanding are positive shut off, no lubrication, quick inaction, visual indication, low pressure drop and corrosion resistant. Availability : 2 way3 way‘L’ Port‘T’ PortIBRNon IBR2 & 3 pc designIn floating ballTrunion mounted ball design Technical Specifications : Sizes :From ½” to 16” (15 mm to 400 mm)Material used :Carbon SteelStainless SteelAlloy SteelEnd Connections :Screwed EndsSocket Weld EndsFlanged EndsButt Weld EndsNipple Extension EndsOperations :Lever Operated Pneumatic Actuation Electric Actuation
