Forbes Marshall Pvt LTD Kasarwadi, pune, Maharashtra

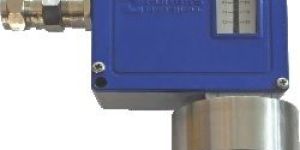

WD Series weather proof differential pressure switches have been essentially designed to control the differential pressure drop in safe area applications. The compact design helps in easy commissioning andinstallation. The specially designed aluminum die cast enclosure is IP67 approved. It is designed to sustain mechanical vibration and shocks. They can be used across filters, compressor lines etc.

The FM TOC 101 is a single stream analyser which is fully automated and it has many unique features making this instrument exceptionally versatile but amazingly is still very competitively priced. As standard it has automated zero, calibration, sample and wash sequences which enable the system to run on the dirtiest of samples.

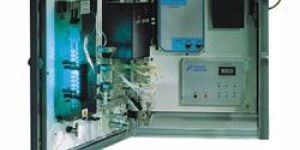

Multi-parameter system to meet the regulations for Drinking water, Sewage and Industrial waste water.Based on UV Vis Absorption Spectroscopy (Double beam with entire spectrum scanning).Programmable automatic cleaning facility.Programmable measuring cycle, In accordance with DIN38404-C3 AFNOR XPT90-210 standard and TUV compliant.

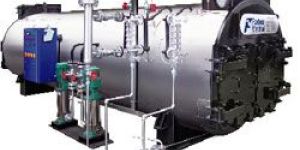

Forbes Marshall Exhaust Gas Waste Heat Recovery Boilers (WHRB) are fully packaged smoke tube industrial boilers equipped with advanced instrumentation to deliver maximum possible heat recovery. These boilers are ideal to recover heat from gen sets, incinerators, blast furnace exhausts etc. They enhance the system efficiency and help save fuel and money.

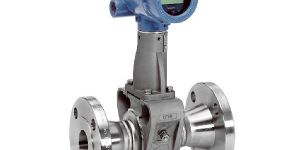

Vortex Flow Meter for saturated steam applications. With the optional pressure sensor the flowmeter has an integrated density compensation available, which even allows an exact measurement of gases and superheated steam with varying process conditions. The additional integrated gross and net heat measurement makes this flowmeter to be a reliable partner for advanced energy management systems.

Vibration monitoring is essential to keeping rotating equipment running smoothly for years. Shinkawa Vibration Monitors are an indispensable complement to equipment like pumps, motors, fans, compressors, and turbine supervisory systems. Monitors are available in single channel, four channel or multichannel versions.

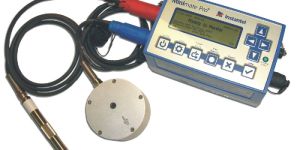

The VIB-M is a battery powered portable instrument designed to operate with a constant current type accelerometer to make vibration measurements simple and convinient, Pk, RMS and p-pk are the various parameters that can be measured for acceleration, velocity and displacement. A switched low pass filter for the reduction of wide band noise is provided for Vib-M. Theere are two versions available: VIB-M and VIB-M-1.

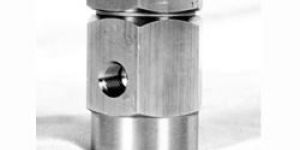

In the course of operation or when the system is being shut, pressure might go below the atmospheric pressure creating a vacuum inside the system or the process equipment. Vacuum formation can damage equipment or the system and hence vacuum breakers should be installed. Vacuum breakers remain in closed position during the normal operation. When the vacuum forms, the external (atmospheric) pressure displaces the closing element such that the air from outside can flow inside and prevent the vacuum formation.

Every process needs to be optimized for energy efficiency. The process of generating energy is no exception. Efficiency of energy generation is a key factor in the overall profitability of any process plant. Forbes Marshall has a range of unique products, systems and software to help you keep track of exactly how much energy you consume and where it goes.

Boiler burners are the central element of effective combustion system design which includes fuel preparation, air fuel distribution, furnace design and combustion control. A burner is a mechanical device that supplies required amount of fuel and air and creates a condition of rapid mixing and produce flame. The mixing rate of air and fuel directly affects the flame stability, shape and emission.

The latest microcomputer technology and the proven processing software select the level echo from among any number of false echoes and calculate the exact distance to the product surface. An integrated temperature sensor detects the temperature in the vessel and compensates the infuence of temperature on the signal running time.By simply entering the vessel dimensions, a level-proportional signal is generated from the distance. It is not necessary to all the vessel for adjustment.

Various considerations apply to the design of RTD assemblies. The element should be protected from shock and vibration, yet free of expansion stresses that may, shift the reading. The element assembly needs to be isolated without obstructing heat flow. The outer sheath has to withstand pressure, erosion and vibration, yet it should be small enough for easy installation and rapid response to temperature changes.

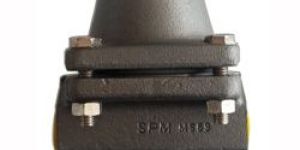

Forbes Marshall moisture separators effectively remove the moisture from steam ensuring the highest dryness fraction at the outlet. These moisture separators are available with IBR test certifications if required. Forbes Marshall offers a wide range of moisture separators in different materials and a large variety of sizes. Thorough engineering and precise manufacturing ensure complete removal of entrained moisture particles. Moisture separators can be cast or fabricated as required.

Steam flow meter for saturated steam applications. With the optional pressure sensor the flowmeter has an integrated density compensation available, which even allows an exact measurement of gases and superheated steam with varying process conditions. The additional integrated gross and net heat measurement makes this flowmeter to be a reliable partner for advanced energy management systems.

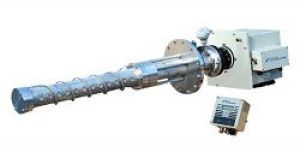

The GCEM 40xx series Insitu gas analyser is manufactured by Forbes Marshall Pvt. Ltd. in technical collaboration with Ms Codel International Ltd. UK, A Forbes Marshall group company, who are specialized in the design and manufacture of High Technology Instrumentation for Combustion Processes and Atmospheric Pollution Emissions.

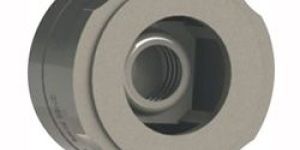

Disc Check Valves from Forbes Marshall are spring loaded, non-return valves which allow flow only in one direction. When fitted at the outlet of traps discharging into closed systems, they prevent the back-flow of discharged condensate into the system. Forbes Marshall spring loaded disc check valves offer a tight shutoff and are available in a large range of sizes. These valves are compact in design as compared to the conventional swing and lift type of disc check valves. They can be easily mounted in between flanges in any direction. These valves are compatible with both PN and ANSI flanges.

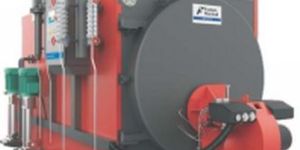

The Intell series of boilers is a truly packaged and compact range, available in capacities of 0.6 TPH to 4.5 TPH. The necessary automation for fuel feeding, air to fuel ratio, cut off cut in of boilers are inherent in design along with safety features.

This burner has a rotary cup and a fan. The cup and the fan are rotated by an electric motor with a shaft. Oil is feed to the oil distributer to throw at the inner surface of the cup. The cup rotates at the speed of about 3600 rpm. Then oil flows in a swirling motion and is thrown as fine droplets at the other end. Fan or blower supplies primary air in whirling motion opposite to oil motion. This helps to further disintegrate the oil particles and reach combustion chamber.

Steam boilers are usually designed to work at high pressures. Working them at lower pressures can result in carry over of water.Steam at high pressure has a lower specific volume which means that a greater weight can be carried by a pipe of a given size. We recommend distribution of steam at high pressure and reduction at the point of usage. This reduces capital loss for piping and insulation and also reduces distribution losses.Steam pressure may be reduced to save energy. Steam at lower pressures has higher latent heat. Reduced pressure of steam also leads to reduced heat loss and lower flash steam formation from open vents etc.

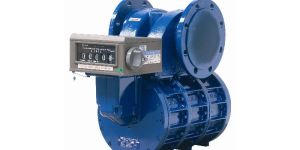

Positive displacement type flow meters divide the fluid in measured portions and then pump it. The flow can be calculated by multiplying the number of strokes with volume of fluid pumped in each stroke. These flow meters are accurate and deliver precise quantities of fluid.

Positive displacement type flow meters divide the fluid in measured portions and then pump it. The flow can be calculated by multiplying the number of strokes with volume of fluid pumped in each stroke. These flow meters are accurate and deliver precise quantities of fluid. There are different types of flow meter which work on this principle of operation like oval gears, mutating disc, reciprocating pistons etc.

Forbes Marshall Air Vent is a balanced pressure - thermostatic type of steam trap which is ideal for air venting applications. Presence of air in the steam system leads to many problems like prolonged start-up, corrosion, improper heating etc. Forbes Marshall Air removes the air from the system and ensures quick start-up and maintains batch times.

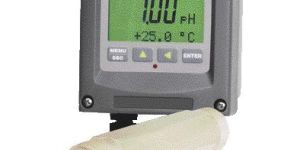

This transmitter is capable of measuring pH, mV and temperature. Thus pH sensor in combination with temperature sensor or REDOX sensor can be used as process sensors. The measurement results are displayed on LCD display.The output of this transmitter is fully scalable over the total range of sensor. During fault conditions the output can be programmed for 3.55mA or 22mA as per need.

Suitable for process temperatures up to 80°C and samples with just 2 uScm conductivity.A proprietary electrolyte provides more consistent readings in low ionic content samples than conventional sensors.3 ceramic diaphragms for flow independent signals.
