Forged Steel Valves Dealers in Pune

• Material: Stainless Steel, Forged Steel
• Application: Gas Fitting, Oil Fitting, Water Fitting
• Color: IPL Std
• Pressure: High Pressure, Low Pressure, Medium Pressure
• Structure: STD
• Feature: Durable
• End Connection: Flanged
• Valve Size: 1/2inch, 1inch, 2inch, 15mm to 50mm
• Brand Name: IPC

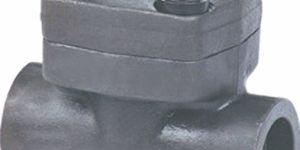

• Type: Forged Steel Lift Check Valve
• Condition: New
• Power: Air, Manual
• Port Size: reduced/full
• Temperature Of Media: Normal Temperature
• Media: Gases/Liquid
• Pressure Rating: ASME #150 to #2500
• Sizes: 15 mm to 50mm
• MFG Standards: API 602, BS 5352 (BSEN ISO 15761), BS 1873
• Standard Connections: Threaded Socket weld
• Surface Finishing: Polished

• Body / Bonnet: ASTM A 182 Gr F 11
• Trims: 13 Cr TO AISI 410
• Mfg Std: API 602 / BS 5352
• Insp & Test Std: API 598 / BS 6755
• Ends: SCREWED TO BSP / BSPT / NPT , SOCKETWELD TO ANSI B 16.11
• Hyd-test Pressure: BODY : 3000 Psig (211 Kg/Cm2 ) , SEAT : 2000 Psig (140 Kg/Cm2 )
• Size Range: 15 MM TO 50 MM

• Socket Weld Ends: ASME B16.11
• Screwed Ends: BSPT (F), NPT (F)
• Butt Weld Ends: ASME B16.25
• Sizes Available: 15 NB, 20 NB, 25 NB, 40 NB, 50 NB
• Class: # 800
• Hydro. Test Shell (Body) Kg/Cm2 (PSIG): 210 (2986) 15 Sec.
• Hydro. Seat/Back Seat Kg/Cm2 (PSIG): 153 (2176) 15 Sec.
• Seat Air Kg/Cm2 (PSIG): 7 (100) 15 Sec.

Design Standard : API 602, BS EN ISO:15761(BS5352) Testing Standard : API 598, BS EN 12266.1:2012(BS 6755) Options : IBR /Non-IBR Max. Working Pr. : 139 Kg/Cm2 Max. Working Temp. : 427°C MOC : ASTM A105

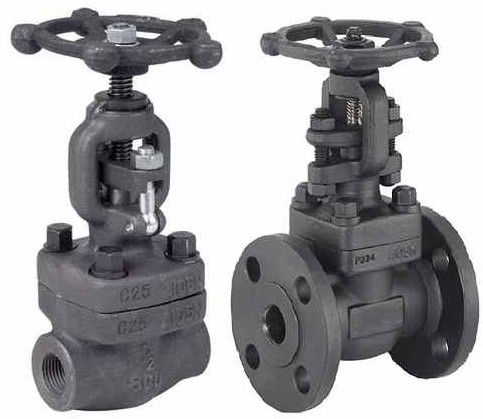

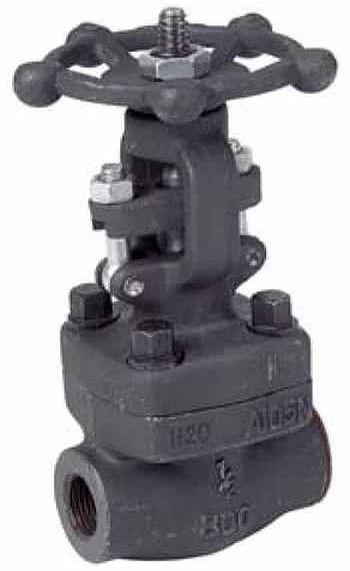

We supply Forged Steel Gate Valves with IBR as well as Non IBR certification. The Forged Steel Valves we offer are available with Satellite Wedge/Disc, Seat Ring & Back Seat. Extended bonnet, Locking Arrangement, etc. are also made available on special request from the client’s side. Features : High quality forging usedPrecision machined forgingsHigh performanceControlled clearance between stem, gland and bonnet bushingLeakage proof Body-Bonnet Joint With Spiral Wound GasketLow emissionsSuitable for higher temperatureMaximum long packing lifeEasy access to the stuffing box Components : Body-Bonnet Joint Spiral Wound GasketDie molded Graphite (Grafoil) Packing RingsSwinging Eye Boltscontrolled clearance between stem, gland and bonnet bushingDeep stuffing box Technical Specifications : Sizes :From ½” to 2” ( 15mm to 50 mm) Bore type :Reduced boreFull BoreMaterial Used :Carbon SteelStainless SteelAlloy SteelRating (Class ) :150300600800 15002500End Connections :Screwed EndsSocket Weld EndsWeld-On-FlangeButt Weld EndsOperations :Hand wheelElectric Actuator

Design Standard : IS 9890-1981Pressure Testing : BS 6755 Part I/API 598/IS 6157-1981Screwed Dimensions : ANSI B 1.20.1/IS554/BSEN10226-1Socket Weld Dimensions : ANSI B 16.25/IS4712/BSENISO17292Butt Weld Dimensions : ANSI B 16.25/IS11790/BSENISO17292
