Gantry Cranes Dealers in Bhosari, Pune

• Item Code: LG-02
• Features: Simple installation,User-friendliness ,SafetyHigh tensile strength
• Load: 50-200T
• Lifting Speed: 0-1m/min
• Power Supply: 380v 3p or customized

• Wheels Material: PVC
• No of Wheels: 4 Wheels
• Application: Industry
• Brand Name: Malgudi
• Material: Mild Steel
• Capacity: 20-25 ton
• Travel Speed: 5-10 m/min
• Frequency: 50 Hz
• Power Source: Electric

Our range of products include Jib Gantry Crane and Jib Crane.

• Safe Working Load (SWL): 1 ton to 100 tons
• Operation :: Indoor / Outdoor
• Height of Lift:: 2 m to as per customer requirements.
• Class of Duty :: M5-M7-M8, AS PER IS 807/3177

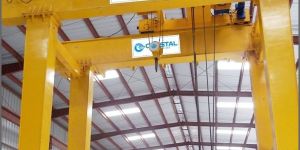

Gantry Cranes / Semi Gantry Cranes These types of cranes are installed in the Areas where entire shed structure cannot be built or installed or areas where shed structure is not required. These cranes run on the rails installed on grounds. These cranes also comes with Live Axle Execution Type Wheel Assembly which eliminates the external coupling between gearbox, Motor & Brake which eventually reduces the chances of maintenance & preventive maintenance frequency These cranes are used in Steel Yard, Stock yards, Constructions & Infrastructure sites, Marble Industries, Shed which are not made with considering the load conditions, Irregular shaped shed where length or width vary & is not suitable for SG EOT & DG EOT Cranes. TECHNICAL SPECIFICATIONS : Safe Working Load (SWL) : 1 ton to 100 tons • Operation : Indoor / OutdoorHeight of Lift: 2 m to as per customer requirements.Class of Duty : M5-M7-M8, AS PER IS 807/3177Wire Rope Construction/ No. FALLS: Con 6X36 IWRC (Steel Core) , 2-16 FALLSMain Hoisting Speed (General) : 4 m/min Micro With VFD / Customized as requiredCross Travel Speed (General): 15 m/min (Micro with VFD / Customized as required

In workshops where part utilization of shop bay is required (as in a tool room attached to a press shop), a Semi-Goliath/Gantry Crane is used. In such a configuration, one end-carriage of the crane will travel on the regular gantry rail while the opposite end-carriage will travel on a rail mounted typically on the ground or at a lower elevation. These Cranes have legs of unequal length to operate on rails at different elevations.All these cranes are available in Single Girder, Double Girder design and they may be a custom made to suit customer’s specific requirement.

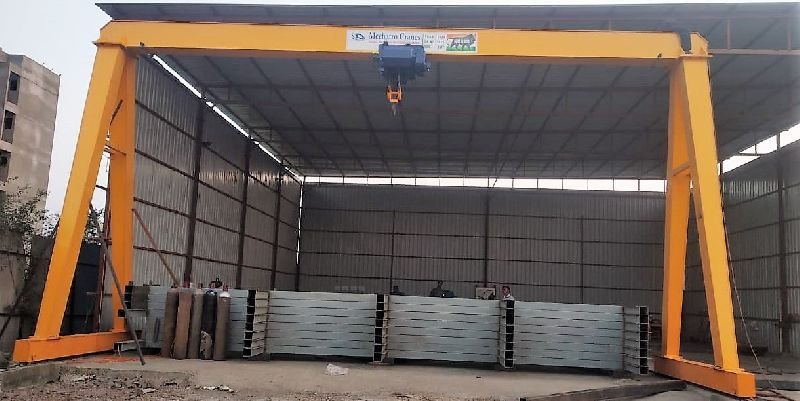

Gantry cranes are same as the regular overhead cranes except that the bridge for carrying the trolley is rigidly supported on two or more legs running on fixed rails or other runway.   These “legs” eliminate supporting runway and columns and connect end trucks which run on a rail, either embedded in or laid on top of the floor.
