Gas Fired Boiler Dealers in Pune

We offer Gas Fired Boiler. With our experience of 17 years, we have an expertise in the domain of gas / oil fired boiler manufacturing which ensures premium quality gas / oil fired boiler. Advantage : automatic feeding

Package type boilers are internal furnace type with three pass, fully wet back & smoke tube type design. Fuel is fired inside the furnace with the help of the burner. Package type oil/gas fired boiler is designed to provide economical solution for heating with minimum operational complexity. Product Range : Capacity  - 500 kg/hr to 20,000 kg/hr Pressure  - 10.54 kg/cm² to 21 kg/cm²(g) Fuels  - LDO, HSD, FO, LSHS, Natural gas, LPG, Biogas Efficiency - 88 % plus on NCV basis Salient  Features : Compact and efficient design 3-pass fully wet back design for highest efficiency. Special type steam separator provided for Best quality steam. Easy for installation. Accessories like Air pre heater, economiser or water pre heater, Dust collector can be provided.

• Type: Steam Boiler
• Condition: New
• Driven Type: Electric
• Material: Metal
• Certification: IBR
• Color: Blue
• Power: 2 To 50 Kw
• Gauge Thickness: 6 To 25 Mm
• Output: 0.1 To 10 TPH
• Country of Origin: India

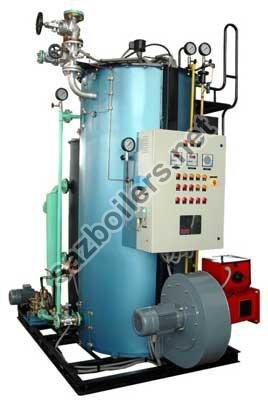

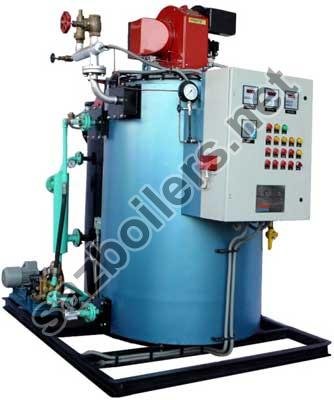

we manufacture wide range of oil and gas fired steam boilers. The oil and gas fired steam boilers manufactured by us are developed using the latest technology. These steam boilers have the smoke tube type, three pass designs making them efficient and free from any hazard.   product range capacity smoke type - 100 kg/hr to 5,000 kg/hr. pressure – 5 kg/cm² to 22 kg/cm²(g)fuels - ldo, hsd, fo, lshs, natural gas, lpg, biogas, biodiesel.efficiency - overall efficiency of 74 % (±2%) on ncv   special features 1. Easy for installation& commissioning.2. Accessories like economisers can be provided to increase efficiency.3. Three-pass smoke tube with fully wet back boiler.4. Multi-fuel option - light oils/heavy oils/gases.5. High efficiency6. Burners are modulating type, pressure jet, and    rotary cup type.7. Fully automatic operation.8. Efficient burner.9. Larger heating surface area.10. Hazard free.11. Compact & easy to operate.12. Instant steam within 4 minutes from cold start.

• Capacity: 1 to 220 TPH
• Pressure: Up to 140 kg/cm2(g)
• Application: Power & Process
• Superheated Temperature: Up to 540°C

Our oil and gas fired boilers are Package/water tube boiler with single-drum/ bi-drum configurations. They cater to process and power applications with fuels like biogas, natural gas, blast furnace gas, coke oven gas, hydrogen gas, furnace oil, low sulphur heavy stack oil (LSHS), naphtha, light diesel oil (LDO) and high speed diesel (HSD). Uttamenergy is a Licensee of ERK Eckrohrkessel GmbH and uses its designs for oil and gas fired boilers. For More Information, Merit More than 3900 references through ERK Eckrohrkessel Corner tube system with self-supporting frame. Quick Start up time. Faster response to Load variations. High steam purity is achieved. Compact design to fit space requirements. Modular construction makes simple erection with few site welds

VOLFRAM offers 3 pass wet back truly packaged high efficient Furnace oil or Gas fired steam boilers. The 3 pass wet back design with mono block burner assembly ensures complete combustion & maximum thermal efficiency resulting into high Steam to Fuel ratio. Each boiler is designed to ensure ease of operation & maintenance. VOLFRAM boilers are truly packaged which reduces the site work & project completion time, saves money & ensures highest quality of each component of the boiler. Features of Packaged Oil/Gas Fired Boiler: Truly packaged type: The Boiler Comes Pre-wired & pre-insulated from the factory itself reducing the site work & cost of site activities. Saddle Mounted Boiler: The entire unit is saddle mounted, including all accessories - only connections for water, I D fan, chimney, electricity and steam outlet are required to commission the boiler. Compact: The boiler needs less floor space because of the compact design. Boiler Burner: The mono block burner provided on the boiler has higher turn down ratio ensuring higher efficiency at lower running loads on the boiler. Mountings & Accessories: VOLFRAM Boilers are fitted with mounting and accessories of international repute and standards, the feed water pumps are the vertical multistage SS pumps. Centrally Located Furnace: This ensures no tubes in cold zone & enhances effective heat transfer resulting into lower start up time. High Steam Space: The higher steam space inside the boiler results in better response to fluctuating steam loads. TDS based Automatic Boiler Blow down: The boiler is optionally provided with TDS based automatic boiler blow down system which ensures optimum blow down from the boiler & saves fuel Capacity Range: From 500 kg/hr to 10000 kg/hr. Standard Design Pressure: 10.54 kg/cm2 (g), 17.5 kg/cm2 (g) & 21 kg/cm2 (g) VOLFRAM offers complete package for the Boiler House consisting of: Chimney Pollution control equipments Piping (IBR/NIBR) Feed water tank with accessories On site IBR formalities

• Fuel: Oil & Gas Fired
• Material: Stainless Steel
• Capacity: 1 to 10 TPH
• Brand/Make: Ross
• No of passes: 3
• Boiler Type: Shell Boiler

Natural Gas Fired Condensing Boiler, Coal Fired Fully Automatic Non IBR Boiler
