Gathering Machine Dealers in Pune

We are offering metal gathering machine

• Country of Origin: India
• Color: Green
• Driven Type: Electric
• Country of Origin: Made in India
• Power: 150 Kva
• Body Material: Mild Steel
• Finishing Type: Polished
• Usage/Application: Industrial

• Application: Engine Valves , Hand tools, Fasteners, Pushrods, Bolts, timer pins, torsion spring rods, spline shafts etc.
• Type: Horizontal, hydraulically operated.
• Range: 20-500kVA
• Advantage: Saving on material and machining cost.
• Benefit: Saves on multiple upsetting strokes otherwise required.
• Features: Smooth and Precise Hydraulic control.
• Performance: Continuous, scale free upsetting.

• MODEL: Heat Rating of Machine , Bar range optimum from to
• TMG/V-25: 25 , 18
• TMG/H-100: 100 . 20-40

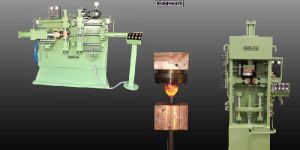

Kejetherm Metal Gathering Machine is fully hydraulically operated with Resistance Heater. Principle of Operation Metal Gathering operation consists of heating the part of the job and pushing the remaining cold material of the job into hot zone till the required metal gathering takes place. Advantages By employing Metal gathering many of the well known technical limitations and disadvantages of mechnical upsetting can be overcomed. Simultaneous heating and forming in one machine. Almost unlimited gather in one operation. The mechanical upsetting limitation of about 3 x dia. no longer applies. The modern engine valve has an upset length of up to 20 x dia. and lengths of upto 40 x dia. are commonly electro-upset. No longitudinal flash is formed such as is unavoidable in a split-die mechanical upsettler. No waste of heating energy or material. Outside of the upset volume can be precisely controlled to allow subsequent, "flashless" forging in closed dies. Always ready for instant use, no warm up period. Energy efficient, about 0.35 - 0.40 kwh kg. Minimal scaling because of simultaneous heating and gathering. Improved die life in subsequent forging operations. No environmental pollution by emission of heat, fume or exhaust gas. Free upsets can be finished forged without re-heating and so save time and energy. Consistant heating temperature through the use of thyristor control. Optimal grainflow and fault free surface. The unheated bar length remains unchanged.

gathering unit function - gathering unit consist of gathering arms, cutter and aspirator. For winders winding 8 threads or 12 threads, instead of providing cutter aspirator per thread, one gathering unit is fitted above the winder. If any of the threads breaks, yarn sensor will a give signal to gathering unit. The arms of gathering unit will collect remaining threads, bring them to center, cutter will cut the same and aspirator will start sucking the cut threads. Similarly when doffing is completed, signal will be given to the gathering unit and above action will repeat. advantages � since one cutter and one aspirator is used instead of 8 or 12, compressed air is saved substantially, reducing operating cost. Threading from aspirator to winder becomes easy and avoid wastage. Thus production losses are reduced substantially. Rntailor made design � we can design gathering unit suitable to your existing yarn path.
