Gel Documentation System
Get Price Quote

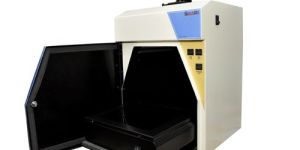

A gel doc, additionally known as gel documentation system, gel inmage device or gel imager, is device extensively utilized in molecular biology laboratories for the imaging and documentation of nucleic acid and protein suspended within polyacrylamide or agarose gels. These gels are commonly stained with ethidium bromide or other flurophores which includes SYBR Green. Generally, a gel doc includes anultraviolet (UV) light transilluminator, a hood or a darkroom to guard external light assets and protect the user from UV publicity, and a CCD camera for photo capturing.
Why We Are Best In Gel Documentation System?
We are providing Gel Documentation System to our clients. It is significantly used in biochemistry and biotechnology departments for research and developments and various packages.
Banking at the skills of our specialists, we are recommended amongst the customers for providing an excellent range of Gel Documentation System. The Gel Documentation System is available in diverse specifications that can be customized as per client’s requirements. Offered products are made through using excellent fabric.
Gel Documentation System Work:
Gel documentation system contains a UV light transilluminator, a hood, and a CCD camera. It's convenient to make use of and function. The hood restricts entry of any source of external light that makes it possible for clear taking pictures of picture with the CCD digicam and making it seen in ultra violet gentle transilluminator.
Technical Specifications
Hood
Hood consist of UV Transilluminator,white light,Epi UV AND Epi fluorescent light
Uv Cut off when door is open
Dark chamber
8W reflectatnt light
Door safety switch
Zoom Lens 8-4mm/f1.0
Etbr filter
Lens dark box
Built in with 5mp Camera
Resolution H:2,592 pixel,V:1,944 pixel
Pixel size:2.2um
Lens mount C/CS INTERFACE(ELECTRICAL)
interface USB 3.0
1D Gel Analysis software
Import common image types up to 48bit,16Bit gREY LKEVELS
Interface to control scanner and cameras
Image pre-processing,rotate,crop,scale,imagre filters
Automatic lane and band detection
Manual lane band detection
Manual correction for lanes and gels
MW Calibration using MW standards,Standards Standards editor
Quantification for bands and lanes
Normalisation using reference bands detailed list 5 analysis values
Reporting,create reports using templates,Export and Print
Data export to MS Excel, open office
Documentation of gels and export Update via Internet or CD
Features
Simple layout for regular and dependable operation
Automatic UV reduce off to ensure safety
Employs very latest camera interface high speed USB or FIREWIRE to enhance system efficiency
Simple sanitization regime to be followed for renovation of UV filters
All the fashions function scientific grade CCD sensor for compliance with low mild imaging requirements
