Glass Insulator Dealers in Pune

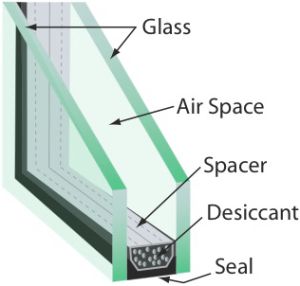

Two or more liters of glass are assembled and separated at a fixed interval using an aluminum spacer filled with a drying agent called desiccants to absorb the moisture within air space. The surrounding edges of the double glazed units are then sealed first by a primary sealant and then by secondary sealant.  Insulated glass increases insulating properties of glass while substantially reducing condensation. This reduces load on air conditioning, reduces cost of HVAC, sound resistant and reduction in the greenhouse gases.   Applications Architectural Façades, WindowsIndustrial Visi Coolers

• Material: Glass
• Brand Name: Dhanlaxmi
• Shape: Rectangular
• Pattern: Plain

• Brand Name: eTherm

We are offering insulated glass units (dgus). Insulated glass units (igu�s) or double glazed units are a significantly more energy efficient glazing system than single glazed windows. It is estimated that up to 30% of heat entering the home and up to 50% of winter heat loss is a result from the use of single glazing. Igu�s consist of two or more panels of glass separated by airspace and aluminium or other type of spacer around the edges, sealed to the perimeter in controlled conditions. The spacer contains a desiccant (drying agent) which eliminates moisture vapour in the cavity. The combination of the two panels of glass and the trapped air is what makes igu�s a superior energy efficient method of glazing. The glazing system must be designed to drain out all water in the rebate and a void must exist under the unit so that moisture is not trapped against the edge of the glass. generally units should be glazed with a minimum 3mm clearance between the glass face to rebate a minimum 3 - 6mm clearance under the unit in the rebate (size of block) and a minimum 12mm cover or bite in the rebate. dry glazing of units is always recommended but if units are to be glazed or bedded into compounds or sealants it is imperative that compatible sealants are used or edge failure may result.

Insulated Glass, Tempered Glass

Insulated Glass, Toughened Glass, Laminated Glass, glazed glass

insulating glass unit, glass designer window, glass sliding window

Insulated Glass Unit, Architectural Coated Glass for Factories

insulated glasses
