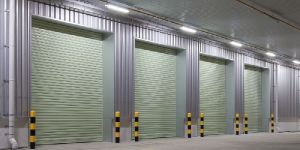

Grill Rolling Shutter Dealers in Pune

Owing to the trustworthy logistics facilities, we are instrumental in offering the bulk requirements of the customers and that too in the set time span. The offered assortment of products is sternly checked, examined by the quality experts to maintain the set industrial standards.

We are counted among the top Manufacturers, Exporters and Suppliers of Grill Type Rolling Shutter from Maharashtra, India. We manufacture Grill Type Rolling Shutter in accordance with the set industry standards. Our Grill Type Rolling Shutter is subjected to stringent tests so as to ensure that only the defect-free range reaches the customers’ end. One can obtain Grill Type Rolling Shutter from us at the best market price.

• Width Min./Max.: 1000/12000mm
• Height Min./Max.: 1000/14000mm Max. Area 120.0 Sqm
• Opening Direction: Vertical
• Opening/Closing Speed: 0.05-0.1mtr /sec
• Wind Resistance Up to: 90Km/Hr * Higher wind pressure on request
• Slat Material: CRC M.S/ G.I Steel Slats available in 0.9 mm, 1.0 mm & 1.2 mm thickness
• Slat Profile: Corrugated Profile (RSC 78, RSC 88, RSC 113) Optional Flat Profile
• Side Guide: Mild Steel/GI Side guides 75 mm, 100 mm, 150 mm & 200 mm wide Box guides with wind hooks for higher wind pressure as optional
• Bottom Profile: Mild Steel/GI Bottom Plate with Angle Stiffener Rubber bottom seal as optional
• Roller Shaft: Heavy duty Mild Steel strong suspension Tubular shaft without springs
• Side Brackets: M.S plate 3 mm to 10 mm,as per the opening dimension
• Hood Cover: Galvanized Steel sheet
• Surface Finish: Primer finish as standard
• Painting (Optional): Enamel/ Powder coating /Duco/ Epoxy/ PU
• Control Type: Casing made of compact impact-resistant material incorporating operating buttons for shutter operation. Specific IP rating provided as per the requirement. Deadman/Pulse Control suggested application wise.
• Drive Type: Imported make Indirect /Direct Connecting Drive selection made depending on the space opening availability, no of operations subjected etc. Drive with integral breaking system with Long life expectancy CE Certified drives complying European standard
• Drive Unit: Electric Motor(Imported Make) Single Phase/Three Phase
• Emergency Operation: Manual operation by Hand chain or hand crank
• Options Available: Perforation In Slat profile Rolling Grill Wicket Door for pedestrian entry Vision windows at human height level
