Ideal Heaters Guruwar Peth, Pune, Maharashtra

Two or more copper sheathed tubular heating elements are use in this heater. High quality resistance wire and top grade mgo powder use in this element with compact filling and swaging assembly. This element brazed to brass flange provided with metal cap for protection of heaters. This heaters available in range of 2 kw to 12 kw with 1½”BSP to 2 ½” flange size. Applications: • Heavy duty hot water bath • Circulating process • Hot water storage tank • Boiling equipment • Pharmaceutical • Nuclear • Air conditioning • Textile Features: • Moisture resistance • Superior performance at element bends • 230V, 230/400V for immersion heaters of 3 kw and over • Easy access to terminal wiring • Compact Design

We offer S.S.304 sheathed tubular heater with and without Finns. High quality heating resistance coil and top grade mgo powder use in this element with compact filling and swaging assembly. This heater can be used in areas where flowing air to be heated directly. Applications: • Powder coating plant• Chemical plant • Corrugating paper industry • Duct heating • Textile machinery Features:• High efficiency and superior performance • Available in S.S. and Inconel • High thermal connectivity • Sealed edges to prevent from moisture

Titanium Heater can be used as an alternative of glass heaters. These are manufactured using titanium which is unbreakable materials. These heaters are widely used for heating sulphuric accord & hydrochloric acid. Applications: • Chemical Industries • Used for most cleaning solutions • Alkaline solutions • Anodizing & plating baths • Nitric & chromic acid solutions • Lead bended heater used in water,oil,food stuff Features: • Outstanding performance • Longer service life • Low electric consumption • Highly corrosion resistance

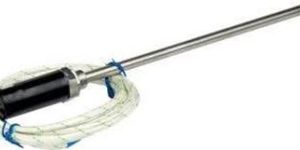

  We offer Thermocouple Probes in standard as well as customized forms as per the specifications of the customers. Our organization ensures that the chosen temperature probes meet the requirements of the process from the probe shaft, line, sensor element to the signal output in order to assure optimum results. It takes a long time to select a temperature probe, which is ideal for an application. Technical Specifications: • Thermocouple Type : J, K (Selected) • Dimensions : 1.5mm, 3.4mm, 4.7mm and as per your requirement • Types of junction : Grounded, Ungrounded (Isolated) • Type of Sheath : SS316, SS310, inconel SS304, 600 etc as per your application. • Shape and Size : As per the requirement or application • Cable : Silicon-Silicon, Tef/Tef, Tef/Tef/SS, Tef/Fg/SS, Fg/Fg/SS as per your requirement. Features: • Multi point Thermocouple • High Accuracy Thermocouple • Available in Washer and Nozzle type

Strip heaters made from mica and ceramic insulators, sheathed in mild and stainless steel providing terminals at one end or both ends. These heaters are most efficient and economical. Applications:• Oven, dies and moulds • Hot plates • Sealing equipments • Food processing • Rubber moulding • Other surface heating Features: • High quality insulation for effective and uniform heat transfer • Maximum 30 watts per square inch • Wire lead or bolt type terminals • Design as per customer requirement

We are manufacturing a wide range of space heaters which are made using stainless steels Catridge Heaters in perforated sheet metal enclosure. This is mainly used as supplemental room heating appliance and to warm a small space. It is usually held in contrast with central heating, which warms many connected spaces at once. Applications: • Panel boards • Electrical & Electronic industries • Other applications for insert warm heating • For remove moisture Features: • Highly durable • Cost effective • Efficient performance • Low maintenance

We are one of the leading manufacturer and supplier of superior quality silica heaters.These heaters are made up of primium quality silica tube and heat resistance cap with connecting cable. These Silica Heaters are good demand in the market due to high quality and durability. Applications: • Hightest Temperature in all acids • Ferric Chloride etching • Anodising • Bright deep baths,except hydrofloric and phosporic • Laboratories & Gold solution Features: • Hightest Temperature in all acids • Ferric Chloride etching • Anodising • Bright deep baths,except hydrofloric and phosporic • Laboratories & Gold solution

We are a manufacturer and suppliers of all type thermocouples & R.T.D-Pt -100 for accurate & Reliable Temperature Measurements in Research & industries Temperature Gauge and temperature controller & P.I.D. Controller etc.These are made with extreme care and at our modern facility, using high grade raw material. Technical Specifications: • Thermocouple Type : RTD (PT-50, PT-100, PT-200, PT-500) • Temperature Range : 50°-400°C • Assembly : Ceramic Insulation • Element : RTD PT 100 Ceramic Bulb & Thin Film bare Elements • Type of Sheath : SS304, SS316 etc as per your application • Shape and Size : As per the requirement or application • Flange : Standard Size • Coating : PTFE coating Features: • Precision engineered. • Available various sizes. • Easily Adjustable • Waterproof • Suitable for fast response applications

Bobbin heaters are made of helically wound of high quality of nickel chrome/ kanthal resistance wire. These coils are inserted in open ceramic insulators with evenly stretched fitting form and centrally supported by S.S.304 rods. For high temperature S.S.316 and S.S.310 rod used for centre support. Applications:• Anodizing and plating bath • Water and oil • Food processor • Heating liquid and gases • Dryers and ovens • Printing and packaging Features:• Nickel chrome / Kanthal resistance wire • High quality ceramic insulators • Dia 28 mm to 48 mm • Length upto 2000 mm

Bobbin heaters are made of helically wound of high quality of nickel chrome kanthal resistance wire. These coils are inserted in open ceramic insulators with evenly stretched fitting form and centrally supported by S.S.304 rods. For high temperature S.S.316 and S.S.310 rod used for centre support.Nickel chrome Kanthal resistance wire, High quality ceramic insulators.

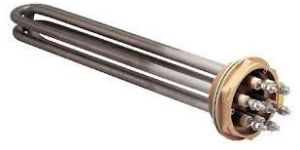

S.S. 304 tubular sheathed elements are use for these heaters. High quality heating resistance coil and top grade mgo powder use in this element with compact filling and swaging assembly. This element brazed to a cast iron flange provided with metal cap for protection of heaters. Applications: • Fuel oil heating • Oil jacketed kettles • Oil circulation Features:• Moisture resistance • Explosion proof • Superior performance at element bends • Easy access to terminal wiring

We are manufacturing and supplying a comprehensive range of Sealed Nozzle Heaters that is widely used for various applications such as heating the nozzle of plastics processing, extrusion machine, rubber vulcanizing machine and injection molding machine. Also, these are used for general heating applications in several other industries. Our range of product is well acknowledged among the clients for its innovative designs, long service life and cost effectiveness. Applications:• Heating the nozzle of injection moulding machine • Plastic processing • Rubber valcanizing machine • Extrusion machine Features: • High efficiency • Minimum maintenance cost • Energy effcient

We offer muffle furnace are manufactured which is made of high grade mild steel and are wounded on a ceramic muffle. They are available with low mass ceramic wool thermal insulation. High quality resistance helically coil wounded evenly on the muffle. This construction results in longer furnace life. Size Rating: 9” X 4” X 4”- 1.6Kw 10” X 5” X 5”- 2Kw 12” X 6” X 6”- 3.5Kw 18” X 9” X 9”- 6Kw Applications: • Pharmaceuticals • Laboratories • Calibrations • R & D • Other applications Features: • Temperature upto 1200°C • Digital display indicator • Also available with PID temperature controller • Work on 220/240 V.50Hz ACv

We offer S.S.304 sheathed tubular heater with and without Finns. High quality heating resistance coil and top grade mgo powder use in this element with compact filling and swaging assembly. This heater can be used in areas where flowing air to be heated directly.

Mica band heaters are efficient and economical solution to the heating requirements in the industries. Top grade nickel crome ribbon and dielectrical mica or micanite sheet used for it which increase the temperature capacity upto 250°C.We maintain holes, side -cuts, dimensions as per customer’s requirement.

mica band heaters are efficient and economical solution to the heating requirements in the industries. Top grade nickel crome ribbon and dielectrical mica or micanite sheet used for it which increase the temperature capacity upto 250°c.we maintain holes, side -cuts, dimensions as per customer’s requirement. application: • plastic industry • injection moulding • dies and moulds • cylinders (barrel) on all types of plastic processing machines features: • maintenance free • top grade nickel crome resistance wire • high efficiency and durability • maximum temperature 250°c • maximum 25 watt per square inch

We offer a wide range of Industrial Manifold Heater the most advanced heating solution for injection manifolds. The advantage of these heaters are that they can be formed by hand and simple tool to allow it to precisely fit into any shape of mould, which results in good thermal exchange and increases the heater life and reduces energy loss. To provide protection from moisture, the connection ends are sealed with sealing components. Features: • Premium quality • Proper watt distribution • Available in Chrome Nickel Steel • Sealed Edges to prevent from Moisture • Swaged for Good Electrical Insulation & Heat Transfer Applications: • Hot Runner Manifolds • Compact Heatingv • Injection Moulds

We are leading manufacturer and supplier of a quality range of K-Type Thermocouples. Manufactured employing latest machines & equipment, our range is a type of sensor that is sued for measuring temperature. The clients can avail K Type Thermocouple that finds several applications at temperatures ranging up to 1260°C. It has greater service life than the J type thermocouple. Technical Specifications: • Thermocouple Type : K-Type • Insulation : High Quality Ceramic Beads(Alumina) • Element Size Base Metal : 1.0,1.2, 1.5, 2.0, 2.5, 3.0mm • Temperature Range :0°-1260°C • Configuration : Simplex, Duplex • Dia Of Sheath : As per your requirment. • Shape and Size : As per the requirement or application • Protection Sheath Base Metal : Seamless SS310, SS316 , Inconel

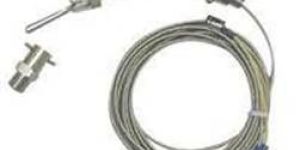

As a leading manufacturer Thermocouple,Our team of dedicated professional offer J Type Thermocouples to the esteemed customers. They are used in various applications & are highly appreciated for their premium quality & long service life. These Type J Thermocouples are easy to use & are precisely manufactured using best quality raw material that is sourced from verified & trusted dealers. These thermocouple are used from 0 to 600°C .These thermocouple are very economical as these are used mostly in plastic industries. Technical Specifications:• Thermocouple Type: J-Type• Insulation: High Quality Ceramic Beads• Element Size Base Metal: 1.2, 1.5, 2.0, 2.5, 3.2mm • Temperature Range: 0°-600°C • Configuration: Simplex, Duplex • Dia Of Sheath: As per your requirment • Shape and Size: As per the requirement or application • Protection Sheat Base Metal: Seamless SS304,SS310, SS316 Features: • Dimensionally accurate • Fine finish • High Quality • Easy to use

Ceramic infra red heaters manufactured from high quality raw materials used for high rates of heat transfer and rapid heat transfer at the speed of light from sources to object. Applications:• Powder coating curing • Paper coating drying • Print, adhesive, paint drying • Rubber, resin, powder curing • Preheating prior to embossing Features:• High degree of efficiency • Available in curved and flat surface • Available curve size: 120 X 60 mm, 245 X 60 mm Flat size: 120 X 120 mm • Long operation life • Also available with K-type thermocouple • Maximum surface temperature 800°C

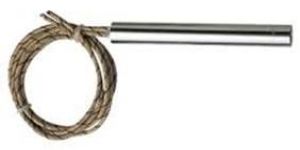

hi density catridge heater made from chrome nickel resistance helically coil which inserted in high grade mgo tube and compacted with mgo powder by filling and swaging assembly in s.s.310, inconel tube as per temperature requirement. Processing a superior heat transfer capability and physical strength, this heater ensures outstanding performance with maximum temperature and long life. applications: • hot runner bushing • packaging industry • shoe making machines • medical equipment • dies and moulds features: • sheath material s.s.316,310, inconal • maximum temperature 750°c • specially selected high purity mgo

We offer specially designed heating mentle made of top quality resistance helically coil, optimum quality glass sleeving and insulated with glass wool fitted with energy regulator and on/of switch with plug and cord. Applications: • Laboratories • Pharmaceuticals • Glass industries • Chemical industries Features: • Maximum temperature 350°C • Available size-250ml, 500ml, 1000ml, 2000ml, 3000ml, 5000ml • Efficient and economicalv • Work on 230VAC
