India Robotics & Automation Pvt Ltd Shivane, Pune, Maharashtra

C-Link manufactures state of the art testing machines. These testing machines are controlled using PLCs & CNC controllers. The data from the testing machines can be stored on servers for further analysis and decision making.

Driven Type : Electric

Motor Power : 10hp

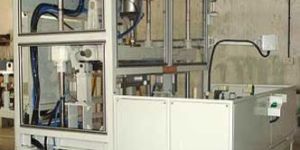

We offer different types of special purpose machines keeping the specific requirements of various industries. These are regarded best in the market because of their quality and performance. Quality materials are used in all these machineries to ensure maximum durability. The latest technology is used in all the special purpose machineries which make them able to compete with the products of international markets. During the time of manufacturing, special care has been taken to make them operation friendly. We are therefore, among the well-acclaimed controlled special purpose machines manufacturers in india. We also stand among the renowned suppliers of special purpose machines in india.

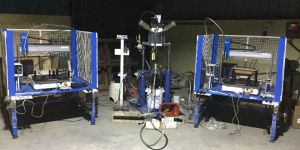

C-Link manufacturs sealant dispensing machines. The machines are used for dispending of hot melt, oil etc

Material : Mild Steal

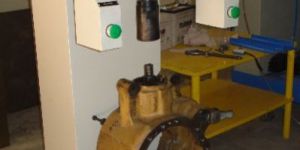

C-Link is leading manufacturer of Pneumatic Presses. These are custom designed low cost presses.

Driven Type : Pneumatic

Power : 1-3kw

Operating Type : Manual

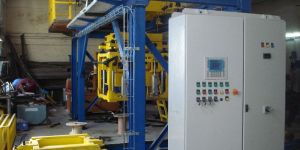

C-Link manufactures pick & place gantry systems. These are PLC, CNC controlled with combination of electric, hydraulic and pneumatic actuators C-Link has in house expertise in developing custom made pick & place solutions

Condition : New

C-Link manufacturers servo motorised, servo hydraulic, pneumatic gantry systems for pick and place applications with capacity ranging from 100 grams to 1 ton

Automation Grade : Electric

Type : Heavy Cranes

Power Source : Electric

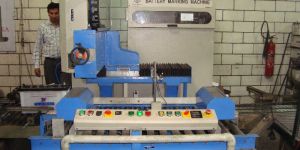

C-Link manufacturs number marking machines for marking on various components like shafts, cylinder head, cylinder block, axles, discs etc.

Usage : Industrial

As shown in adjacent photograph the object to be inspected is a shaft with a line marking on the end face. This presence & orientation of this marking during the assembly process of the shaft, when it is placed into a fixture is very important. The machine vision system checks the presence as well as the orientation of this line marking. By interlocking the Ok / Not Ok signal from the vision system with the fixture locking mechanism the assembled is either allowed or not allowed. Thus machine vision helps in incorrect subassembly of the shaft and prevents problems arising out of at a later stage of manufacturing a complete assembly.

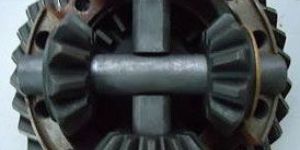

In this case a differential assembly is assembled with planetary gears & brass washers. As one can see in the photograph there are four such gears and a yellowish brass washer behind each gear. The machine vision systems checks the presence of each of these four washers online after the assembly and sounds alarm if any of the washers is found to be missing. The Ok or Not Ok signal is interlocked with a stopper which allows the assembly to move forward on a conveyor only when all the four washers are present.

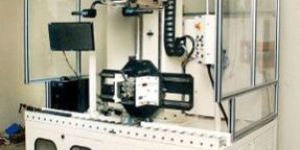

The Photograph besides show the use of Machine Vision in Industrial application. This is a special purpose machine developed for building an assembly of an hydraulic valve. The valve consists of seven elements stacked one over other. The operator starts the assembly process by placing the bottom most element first. He then assembled o-rings & spring with the element. After completing this the operator presses a button on pendant which initiates a vision test. During this test a camera which is mounted on a vertical side is brought besides each element. The camera captures the image of assembled element and confirms that the o-rings & spring is correctly assembled. After the confirmation the camera moves up again. This process continues till the last element is correctly assembled. Thus machine vision system ensures that all the elements are correctly assembled with o-rings & springs and allows the final torquing operation after the top most element is correctly assembled.

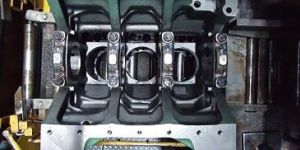

Machine vision is also used widely in industrial applications to measure the dimension and also to check if the part is assembled with correct orientation. As shown in the photograph besides a camera mounted on a horizontal slide is used for inspecting the bearing caps fitted on the cylinder block. The outer two bearings caps out of the four bearing caps fitted on the block are of higher width compared to the inner two bearing caps. Also the operator can fit the bearing caps upside down by mistake. The machine vision systems checks the cylinder block for these mistakes online. An alarm is sounded with fault message if any abnormality is detected.

We have leakage testing machines. Leakage testing machine is used to trace the escape of vacuum, gases or liquids from the sealed systems. Several processes are used to check the leakage and depending upon them different types of machineries are available. We offer premium quality leakage testing machines for various industrial uses. These are made using the latest sophisticated technology which ensures better performance. Each component of these machines is manufactured taking special care so as to ensure flawless service. These are highly accepted in different industries for the quality standard. Consequently, we are regarded among the renowned pressure leakage testing equipment suppliers in india.

We are enlisted itself among the prominent hydraulic press manufacturers in india. We provide all kinds of hydraulic press machine including the big hydraulic press and small hydraulic press. The latest technology is used in all types of hydraulic press machines to ensure high durability and enhanced performance. The engineers designed the hydraulic press in a manner so that these can withstand larger weights. Keeping in view the different uses in the different industries, the hydraulic presses are enabled with numerous features. Extra care has been taken to ensure that they become operation friendly. These produce low noise during the time of operation.
