Street Light Control Panel
This street lighting control panel can be used for automatic light control, street lighting control and industrial lighting controls. This Programmable Lighting Control Panel can again be used as an air conditioner control panel also. With this electricity energy saver product, four or more electrical circuits can be controlled simultaneously and independently. Each circuit can be turned ON / OFF four times in a day (for ON and four OFF) as per user defined time settings. User can have different ON / OFF timings from Monday to Sunday. The device can be connected to input devices such as motion sensors and day light sensors. Features : Out put is through 32 amps, 3phase 4 pole power contactors (4 Nos). 32Nos of terminal blocks for cable IN and OUT, Clock Display, battery back up. Panel size: 230mm (Depth)x 550mm (Width) x700mm (Height), made of 16SWG CRCA sheet, powder coated, double door with glass window and locking arrangement. Option for manual operation, Astronomical ON/OFF of circuits. 24 months warrantee. custom made units are also availableSpecification : Rated voltage : 440V AC, 3 phase, 50Hz. Application : The product finds application in controlling street lighting circuits, Garden lights, Shop floor lighting, outdoor lightings, Housing societies common lighting, car parking lighting, hoardings, sign boards, air conditioning circuits etc
Application : Control Panel
Power : 1-3kw, 3-6kw, 6-9kw, 9-12kw
Power Source : Electric
Phase : Double Phase, Single Phase, Three Phase
Autoamatic Grade : Automatic
...more

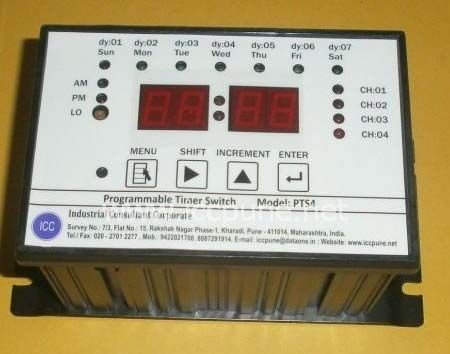

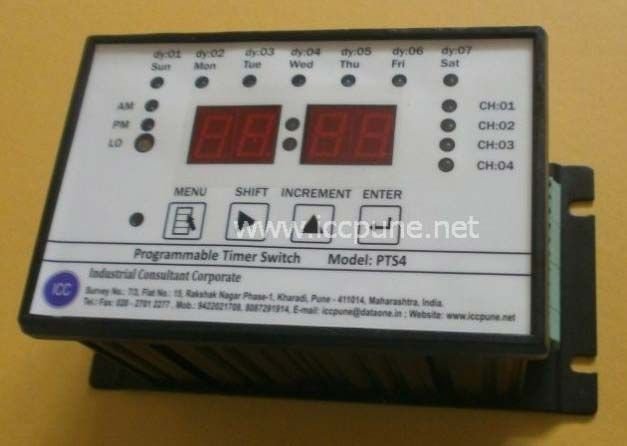

Programmable Time Switch
1 Piece(s) (MOQ)
This programmable Time Switch is a 24 hour timer switch with multiple inputs and outputs and can be used for automatic lighting control, street lights control, air conditioner controls etc. The device control different electrical circuits automatically as per user defined time settings. Four circuits can be controlled independently. Each circuit can be programmed with four different programmes in a day (four ON and four OFF) and in seven different ways in a week. The output can again be over ride with out put control programmes / menu. The device can be connected to input devices such as motion sensors and day light sensors. Application : The product finds application in controlling street lighting circuits, garden lights, shop floor lighting, outdoor lightings, housing societies common lighting, car parking lighting, hoardings, sign boards, air conditioning circuits etc. Specification : Rated voltage : 440V AC, 3 phase, 50Hz. For controlling higher loads the product can be used with power contactors.
Max. Voltage : 220V, 240V
...more

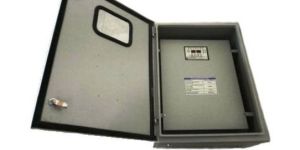

programmable panel
This programmable panel can be used for controlling differ-ent electrical circuits automatically as per user setting. Four circuits can be controlled independently. Each circuit can be programmed with four different programmes in a day (four ON and four OFF) and in seven different ways in a week. The output can again be over ride with out put con-trol programmes / menu. The device can be connected to input devices such as motion sensors and day light sensorsFeatures :Out put is through 32 amps, 3phase 4 pole power contactors (4 Nos). 32Nos of terminal blocks for cable IN and OUT, Clock Display, battery back up. Panel size: 230mm (Depth)x 550mm (Width) x700mm (Height), made of 16SWG CRCA sheet, powder coated, double door with glass window and locking arrangement. Option for manual operation, Astronomical ON/OFF of circuits. 24 months warrantee. custom made units are also available.ApplicationThe product finds application in controlling street lighting circuits, Garden lights, Shop floor lighting, outdoor lightings, Housing societies common lighting, car parking lighting, hoardings, sign boards, air conditioning circuits etc.
...more
PIR sensor
750 - 1,200 Per Each
We are offering sensor, sensor switch, pir, motion sensor, occupancy sensor, energy saving, energy saver. The pir sensor is used to curtail wastage of electrical energy. This passive infra-red sensor detects heat radiated from moving persons objects and uses this ability to automatically switch on or off lights, air conditioners etc these products can be used in all places where electrical energy is wasted in absence of human presence, like office cabin, back office area, lobby, conference room, changing room, recovery room, cloak room, corridor, staircase, storage places, warehouse, car parking, toilet, kitchen, pantry, garden, etc. to know more about the product please read the following, the sensors installed will detects when somebody or a moving object ( say a car in car parking area opening of a door ) enters in its detection range and will switches on the lights and will turned off the lights when person leaves out the movement stops. Clearly, the sensor is intended to operate lights at an area corresponds to movement occupancy. I.e. On the lights when there is movement occupancy and off the lights when there is no movement occupancy. Apart from this energy saving aspect, it also offers a convenience that it is not needed to often switch on or off the lights; it is in automatic operation. there are three knobs in the sensors, the lux knob, the time knob and the sensitivity knob. The lux knob is used to make the lights on at a desired lux level. The time knob is used to make the light lights off at a desired time period ( of 1 minute to 15mnts). Ex: if the time is set for 3minutes, the lights will turn off after 3 minutes, if there was a movement at the end of 2minutes, then the lights will be off only after 5minutes(=3+2). This way if there is an occupancy movement in the detection area distance the lights will remain on. The sensitivity knob is used to increase decrease the detection distance area. Every sensor has a detection distance,( for the ceiling mount sensor, when erected at a height of 3.00 mtrs, it covers a an area of 6mtr radius) it can be mounted on ceiling wall, the mounting height varies from 1.8 mtr to 3.8 mtrs. An electrician can easily install this device. Every sensor is attached with an installation manual showing connection diagram.
...more
PIR Motion Sensor Switch SM04
750 - 2,100 Per Piece
1 Set(s) (MOQ)
PIR Motion Sensor (Model : SM04) are energy saving devices used for home energy saving and industrial energy saving. This infrared motion sensor switch detects movement like human movement, opening of a door, movement of a car in a car parking area and keeps the lights, fans etc ON. IT turns OFF the appliances when itsdetection area is vacant, saving a considerable amount of energy. Features (dual sensor element) Top quality Fresnel lens, Relay Protection circuit Detection range: 360degree x12 mtrs ON time adjustable from 10 SEC. TO 15 MINUTES (10, 30, 90 second And 3, 7, 15 minute). Lux level adjustable from day mode to night mode - The unit can be set to work at a desired lux level.
Material : ABS PLASTIC
Voltage : 230VAC
Operating Temperature : 60-80deg C
Frequency : 50HZ
Power : 10-15Amp
Connector : Sensor Switches
Hole Diameter : Holes not required
Setting Range : Not applicable
Brand Name : PIR MOTION SENSOR SM04
Size : COMPACT
Application : ENERGY SAVING DEVICES
Max. Current : 16 AMPS
Max. Voltage : 220-240 VOLTS
Mechanical Life : 2 YRS
Color : WHITE
...more
PIR Motion Sensor (Model : SM04)
Features : Very attractive shape & compact size, White ABS plastic body, Good quality sensor element (dual sensor element) Top quality Fresnel lens, Relay Protection circuit Detection range: 360degree x 12 mtrs ON time adjustable from 10 SEC. TO 15 MINUTES (10, 30, 90 second And 3, 7, 15 minute). Lux level adjustable from day mode to night mode - The unit can be set to work at a desired lux level.
...more
PIR Motion Sensor (Model : SM02)
PIR Motion Sensor (Model : SM02) are energy saving devices used for home energy saving and industrial energy saving. This infrared motion sensor switch detects movement like human movement, opening of a door, movement of a car in a car parking area and keeps the lights, fans etc ON. IT turns OFF the appliances when its detection area is vacant, saving a considerable amount of energy.Features Very attractive shape & compact size, White ABS plastic body, Good quality sensor element (dual sensor element) Top quality Fresnel lens, Semi conductor re-settable fuse, Short circuit and supply surge protection, Zero cross switching, Ceiling / wall mounting option - Can be erected on ceiling or wall, Detection range : 360degree x 8 mtrs ON time adjustable from 70 seconds to 20 min, Lux level adjustable from day mode to night mode - The unit can be set to work at a desired lux level. Detection area adjustable from low to high 24 months warrenty. Specifications Supply voltage : 230 volts +/- 10%age Safe Load : 500watts Detectable motion speed : 0.5 to 1.5 mtr/sec
...more
Motion Sensor LED Luminaire
Features : Color rendering index greater than 75 Detection range 360degree x 8mtrs Installation height: 5 to 8 Mtrs Wattage at bright 15watts Wattage at dim 3watts Bright to dim time 1minute Power factor greater than 0.9
Warranty : 2years
...more
Air Conditioner Energy Saver
this is a pir motion sensor switch having dual output. it can handle the load of an air conditioner of capacity up to 2 tons without a contactor and a lighting load of 200 watts simultaneously and inde-pendently in six different user selectable operating modes. this is an ideal product for saving energy while using air conditioners. the device detects movement based occupancy and keep the connected appliance (like air conditioner, lights, fan etc) on. it turns off the connected load when its detection area is vacant. the lux level setting equipped with the device helps in turning on the lights only when day light / ambient lux level falls below a de-sired selectable level.in offices electricity consumption due to air conditioners plays a major role. a 2 ton ac consumes 3 units in one hour. considering electricity charges as rs 10 per unit, and a saving of 2 hours with the device, a monthly saving of rs 1800.00 is achieved, which results a pay back of 3 months approximatelyfeatures : dual output. motion based on / off for air conditioner motion & day light based on / off for lighting load over load protection surge protection huge energy saving very short payback period 24 months warranty. six different operating modes auto mode (default mode): output’s will be switched on based on occupancy, and remains on depending on the off-delay set by user after detecting last motion.manual mode : auto mode can be overridden to various operating modes by using override switch, performing number of switching operations prescribed in user manual within a span of six seconds. sensor will then switch on-off lamp once as an indication towards successful change in operating mode. if the unit is working in manual mode and is not overridden to auto mode, it will return to auto mode automatically after 2 hours
...more
Industrial Electrical Contractor
ICC is a reputed Electrical Contractors offering electrical turnkey projects, maintenance contracts, electrical contract services for the industrial and commercial sectors in India. We are a Pune based company having a wide clientele on a pan-India basis. Our success among stiff competition is a result of a robust infrastructure, which in turn is managed by a team of expert professionals. Understanding the ever-changing dynamics of the market, our objective is to change the face of electrical installations and support our client with the best quality and professional service. We ensure that clients always have an up-to-date system functioning through our services that are rendered at the best rates in the industry. Owing to vast technical expertise, we have been doing time bounded project & maintenance works in sugar factories, cement factories, power plants, chemical and other process industries, infrastructure projects, high-rise commercial buildings etc. Our experienced team has been playing a pivotal role in achieving the new heights of success. We have recruited the best talents in the organizations, who are well versed with every aspect of rendering effective services. All their industrious efforts lead to provide utmost level of satisfaction to the clients. We are backed by high technology equipment and tools that assist us in executing the projects effectively. Why Us? Rich industry experience Team of well qualified experts Timely completion Totally client centric approach Economical rates
...more
Electrical Works
ht industrial electrical works
lt industrial electrical works
