Industrial Microscope Dealers in Pune

• Application: Laboratory
• Brand Name: MATRIX TESTING MACHINE SERVICES
• Weight: 12 kg
• Magnification: 50 to 1000X Total Magnification
• Model Name/Number: MATRIX-200M
• Eyepiece: High eyepoint wild field plan eyepiece PL10X/18mm with reticle
• Focusing Range: Three layer mechanical stage, size: 180X155mm, low position control by right hand, moving range: 75X

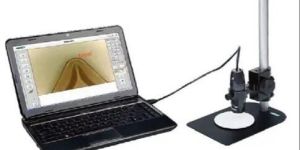

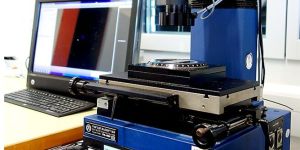

Digital measuring microscope Maximum measuring range: 150mm x 70mm Zoom position: 0.7 - 4.5 Measuring unvertanty: max. 0.05mm Field of vision (dependent on the zoom position): 21.3mm - 3.7mm Operationg distance: 92mm Smart evaluation software

We are a quality-centralized firm and make use of only high quality material for manufacturing the offered lot. Also, we ensure that the material is sourced from the reliable places. We are a purchaser's greatest bet if it comes to acquiring Measuring Microscope as our organization is a capable supplier.

Observation head - Binocular equipped with 45* inclined observation tube,Stage - Built in graduated mechanical stage of size 153 x 120mm, Bright field vertical illuminator 6 volt - 20 w halogen with aperture diaphragm, filter solts bulb centering machinism Objective - Flat Filed achromatics M4X-M 10x and M40 xsl .

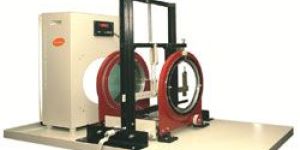

We specialize in manufacturing & exporting Diffused Light Research Polariscope  for Engineering Educational Experimental Stress Analysis Lab from Maharashtra, India. Our offered range of Diffused Light Polariscope is widely appreciated for its smooth functionality, precise design and less maintenance requirement. To ensure customer satisfaction, our quality auditors pass the Diffused Light Research Polariscope through stringent quality checks before approving for delivery.  We are also manufacturing other Engineering Educational Lab / Training Equipments.

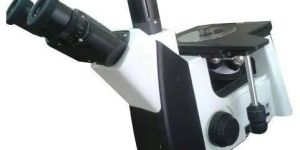

We supply all types of metallurgical microscopes including inverted / erect stage. Magnification: Max. up to 900 X Computer interface attachment to get instant photographs. Powerful image analyzer software can be supplied with above attachment.

• Color: White, Black
• Brand: METTECHNIK
• Magnification: 100X-1000X
• Usage/Application: Laboratory
• Model Name/Number: Mettechnik IHC
• Eyepiece: WF10x and 15x
• Material: Mild Steel, Plastic
• Polarizing Outfit: Analyzer Rotatable 360 Degree

• Floor space: 3m X 2m in dust proof dark room.

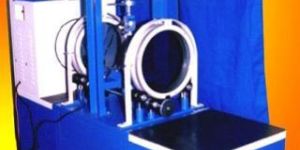

In the field of present engineering development, stress strain analysis by photoelastic methods plays an important role. This method provides a means for visualisation of stress patterns spread across the cross section of loaded specimen and determination of principle stress difference in the whole field. The magnitude of stress at every point can be determined in the simple way by using usual Principle Stress Separation Technique. TechnoLab PHOTOELASTIC POLARISCOPE is designed for plane as well as circular polariscope arrangements and can be used with a wide range of complicated shaped models under various loading arrangements. Specifications: This is the transmission type polariscope highly useful for two dimentional stress analysis. Major components of polariscope are- Optical Elements- Polariser Quarter wave plate No.1 Quarter wave plate No.2 Analyser Each optical element is snadwitched between two strain free acrylic sheets and mounted in metalic ring. These metalic rings are mounted in two separate housings. The quarter wave plates can be rotated to insert or remove optically to make plane or circular polariscope. Scale is fitted on analyser to read the angles and fractional fringe orders in tardy's method of compesation. Diameter of all optical elements is 300 mm approx. LightBox- Wel ventilated light box contains white light source and monochromatic light source with diffusing glass. White light is obtained from fluroscent tubes and sodium light is used to obtain monochromatic light. Small fan is provided for cooling. Light box also houses Digital Load Indicator for Load Cell. Universal Loading Frame- An universal Loading frame is provided along with polariscope so as model under observation can be loaded under tension, compression or bending load one at a time. Arrangement is provided for both transverse and vertical movements of frame so as to keep point of interest at the center of field. A universal load cell is provided to measure load on model. Necessary pins, links and shekels are provided along with unit. Capacity of loading frame is 200 Kg. All above components are mounted on sturdy table. Photoelastic models of Ring, Disc & Beam will be supplied along with unit- Service Required : 230 Volts, 50Hz stabilised power supply. Plate type camera for photography.

• Portable: Yes
• Magnification: 30x, 75x & 150x.

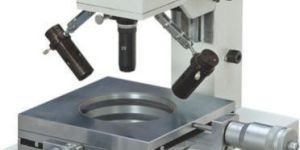

• Model: METZ - 1395A
• Brand Name: Metzer
• Condition: New
• Theory: Metzar Microscope
• Measuring Range: 50 mm X 50 mm X 70 mm
• Linear Accuracy: 3 + L/200 micron
• Drawtube: Binocular
• Objectives: 2x
• Field of View: 8mm Diameter
• Working Distance: 60mm (approx)

Model: SuXma-MOTO ™ QUICK OVERVIEW:   First fully automatic stage microscope entirely designed and manufactured in India Programmable Motorized XY stage for automatic scanning of entire sample – Stage size150 mm X 150mm, travel range 50mmX50mm Automatic focusing of sample (Motorized) through stage control software High end plan-achromatic optics having magnification range 50X to 1000X (dry) Specially designed sample holder Integrated Stage operating and Image Analysis System – With high Resolution Scientific camera, dedicated state of the art imaging software to analyze and compile results System specially designed for DIN and ASTM inclusion standards, for micro-analysis of large quantity of samples, weld profile analysis etc.

• Brand: Insize
• Magnification: 10X-200X
• Accuracy: 30um
• Pixel: 2M (resolution: 1600x1200)
• Power Supply: USB 2.0 Cable (Voltage Required: 5+-0.1V)
• Focus Distance: 21mm
• View Field: 8.1x6.4 mm
• Product Code: ISM-PM200SA

• Brand: Insize
• Product Code: ISM-PM200SA
• Accuracy: 30um
• Pixel: 2M (resolution: 1600x1200)
• Power Supply: USB 2.0 Cable (Voltage Required: 5+-0.1V)
• Focus Distance: 21mm
• View Field: 8.1x6.4 mm
•  :

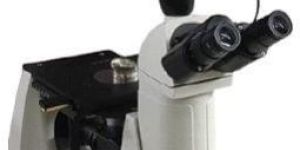

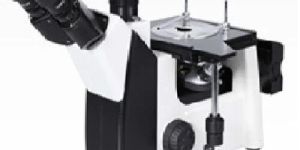

We are a significant Manufacturer and Supplier of Metallurgical Microscopes in Pune, Maharashtra, India. We manufacture is as per the predefined industrial standards and norms. We are well-capacitated to deliver them in bulk quantities, within the stipulated time frame. Our offered Metallurgical Microscopes are highly acknowledged for their great performance, robust structure, and long operational life. We supply all types of metallurgical microscopes, including the inverted / erect stage.Details : Magnification: Max. Up to 900 X Computer interface attachment to get instant photographs Powerful image analyser software can be supplied with above attachment

Industrial Microscope, Video Measuring Machine

Metallurgical Microscopes, abrasive cutting machines, Endoscopes

Metallurgical Microscopes Type SPM1M, Profile Projector Type M300
