Industrial Scrubbers Dealers in Pune

• Country of Origin: India
• Certification: CE Certified, ISO 9001:2008
• Brand Name: Stratgem
• Voltage: 380 - 415 V
• Material: Carbon Steel/ Stainless Steel/ Polypropylene (PP)/ Polypropylene + FRP (PP+FRP)/ HDPE
• Minimum Particle Size: 10 Microns
• Airflow (m3/h or CFM): 1000 - 200000 m3/h
• Efficiency (%): 99% And Above
• Usage: Steel Industry
• MOC: PP
• We Provide: Installation & Servicing, Consultation

• Application: Scrubbing
• Weight: 100-1000kg
• Voltage: 220V
• Automatic Grade: Automatic
• Warranty: 1yrs

Venture Scrubber with vertical separator is a perfect system for pollution control.   This unit can be installed before ID fan or after ID fan suitable as per the existing boiler layout,   In venture scrubber, the gas steam enters from the top side and passes down the converging section to the throat. The water is injected from the top of the throat in film format, dust particles of the gas caught in this section and deliver in the bottom section with water and come out as slurry from the bottom hopper of the vertical cyclone separator.   Gas enters in the vertical separator with a cyclonic entry this helps to separate gas and water particles in vertical vessels. Height of vertical vessel is designed in such a way that gas and water particles shall separate out and clean gas goes to ID Fan.   Please note as per our design more than 25 units are working in India for 20 TPH to 100 TPH Bagasse fired boiler. We can provide total engineering consultancy of this system to suit your requirement.   We provide total detail drawing of venture scrubber system with slurry piping/water piping / RCC tank details. All bought out specifications to reduce the cost.   The Schematic diagram and the General Arrangement Drawing are shown below for your ready reference

This is a low energy device that offers an advantage of particulate collection, cooling, condensing and gas absorption all in a single unit. Gases enter the unit from the bottom and flow upward through a series of trays, each containing perforations designed to achieve the highest efficiency with minimum pressure drop. Scrubbing liquid is introduced above the top tray and cascades downward to the lower trays. As the gases accelerate through the perforations, a fluidized zone of liquid and gas is created. The turbulent mixing in each of these zones provides intimate contact where gas scrubbing and cooling occurs. Units are furnished with a final demister section to minimize liquid carry over problems before the cleaned gases are exhausted via the top outlet. The type and number of trays is selected to meet the process requirements. Sieve or impingement or bubble cap type trays are incorporated with single or dual down comers to suit the application. The Impingement Wet Scrubber is particularly useful where particulate matter would foul a packed bed type scrubber, and on applications where gas absorption andor sub-cooling is required.

• Country of Origin: India
• Type: Air Scrubber pollution control system
• Usage: Scrubber pollution control systems
• Material: Stainless Steel
• Automation Grade: Semi Automatic
• Air Flow: 5000

• Type: Packed Bed Scrubber

This is a cross-flow design with scrubbing liquid flowing vertically downwards while the gas passes horizontally through the packing section. A DeGATECH Horizontal Packed Bed Scrubber is used when limited headroom is an issue at a customer’s facility or when low profile is desired for roof-top applications. Multiple stages can be easily provided in one housing with separate sumps and pumps if required. TYPES OF HORIZONTAL SCRUBBER 1)      DEG-WSPB-H  Series   (Packed Bed Wet Scrubber, Horizontal Flow) FEATURES -          Capacities: 1000 to 80,000 CFM with a single unit -          Efficiencies to 99.97% -          Vertical and horizontal configurations -          Counter-flow and cross-flow models -          Cylindrical and rectangular construction designs -          Pre-quench and DeGATECH Multi stages scrubbing options available -          Wide range of packing media including rings and saddles in various materials. Structured packing is also available.

• Type: Wet scrubber
• Material: MS SS
• Application: Pharma
• Color: Blue

Backed by a team of deft professionals, it has become easy for us to furnish divisive demands of the buyers and that too within shortest time possible. Our stringent quality procedures and analysis as per the guidelines help us in presenting reliable product range.

• Efficiency (%): 80%
• Power (hp/ kW): 1HP to 100hp
• Material: Stainless Steel
• Usage: Pharmaceutical Industry
• Airflow (m3/h or CFM): 1000cmh to 60000cmh
• Orientation: Vertical

• Type: Electric
• Application: Fume Extraction
• Weight: 0-100kg
• Color: Grey
• Voltage: 220V
• Power: 3-6kw
• Warranty: 1 Year
• Automatic Grade: Fully Automatic

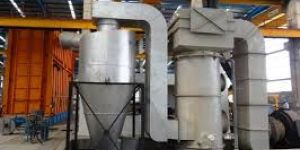

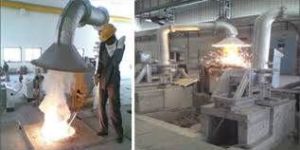

We are rated as the finest Manufacturer and Exporter of Fume Extraction System in India. Fume Extraction Systems are widely used in activities such as Arc Welding, MIG Welding and Gas Cutting, to mention a few. In fact, our Fume Extraction System is quite easy to clean and emits dust-free and clean fumes. For any enquiry to order Fume Extraction System in bulk, contact us without any hassle.

• Type: Industrial Scrubber, Scrubber
• Certification: ISO 9001:2008 Certified
• Country of Origin: India

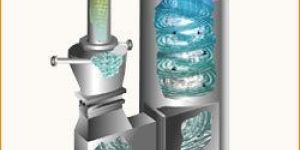

  With over 190+ installations Rieco scrubbers have served the particulate matter removal needs of various Flue-gas desulphurization (FGD), Gas Cleaning Plant, Fume treatment, and Gas treatment applications. Types of scrubbers we offer Venturi Scrubber Centrifugal Scrubber Multi-Venturi Scrubber Dynamic/ Wet Fan Scrubber Packed Bed Scrubber

• Country of Origin: India
• Type: Wet Scrubber
• Certification: ISO 9001:2008
• Voltage: 240 V
• Condition: New
• Automatic Grade: Automatic
• Brand Name: Rajdeep
• Material: Mild Steel
• Airflow (m3/h or CFM): 700 CFM

Rajdeep's in house scrubber range for Air Pollution Control is comprehensive,enabling selection of the most cost effective solution to any dust control or air cleaning problem, large or small. Systems are designed, manufactured and supplied as turnkey installations with the most widely used being the Dynamic scrubber. The Dynamic Scrubber offers >99.5% dust collection efficiency in the 1-2 micron range. It is ideally suited to general dust collection on medium to high dust loads. Fan Scrubber- Rajdeep also offer fan scrubbers for mineral applications. Advantages- -proven design. -very low cost for high efficiency. -high energy efficiency. -integral self cleaning fan. -low maintenance. -low water consumption.

This Wet & Dry Scrubber model is designed to clean the large area especially for Epoxy, Tremix Concrete and Tiles. Mostly useful in Large Workshops at Auto, Pharma, Food industries as well as in Mall, Hotels and Hospitals. After Wet Scrubbing immediately it sucks the dirty water to dry Surface . One person can easily clean the large area. Most useful to clean and maintain the Large industrial areas. Since it Scrub’s and Dries the path in a single Action, Floor is ready to use immediately.   APPLICATIONS : This is wet and Dry Scrubber model Suitable for Cleaning wide area like with Epoxy, Verified Tiles, Smooth Trimix Surface. It removes the Stain and Dirt and Dry the Surface Immediately.

• Voltage: 220V
• Automatic Grade: Automatic
• Driven Type: Electric
• Brand Name: Quality Tech
• Brand Name: Quality Tech
• Material: Mild Steel
• Power Source: Electric
• Surface Treatment: Powder Coated
• Phase: 1

• Type: Wet Scrubber
• Application: Scrubbing
• Weight: 4000-5000kg
• Voltage: 220V
• Condition: New
• Automatic Grade: Automatic,Fully Automatic
• Driven Type: Electric,Mechanical
• Warranty: 1yrs
• Country of Origin: India
• Brand Name: SAHYADRI
• Material: MS
• After-Sales Service Provided: Installation and Service

• Volume Range: 1000 – 10,00,000 m3/hr
• Temperature Range: 45-1200 Deg Celcius
• Outlet Emission: 10mg/Nm3 to 15 mg/Nm3
• MOC: M.S/S.S
• Efficiency: 99%

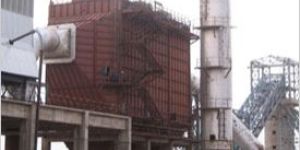

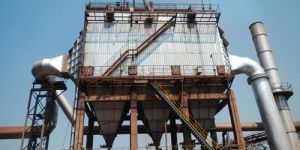

Transformer-rectifier systems apply voltages at a defined peak. Modern controls, such as an automatic voltage control minimize electric sparking and prevent arcing (sparks are quenched within 1/2 cycle of the TR set), avoiding damage to the components. Automatic plate-rapping systems and hopper-evacuation systems remove the collected particulate matter on line, theoretically allowing ESPs to stay in continuous operation till annual shutdown.   ECOMAK is capable for delivering Electrostatic Precipitators having gas flow upto 25, 00, 000 Am3/hr with round the clock emission level kept in check upto 30 mgm/Nm3. ECOMAK also provides engineering support and operator training to any project undertaken.

• Type: Precipitator
• Application: Industrial
• Power: 1 - 3 kw/1000 cfm
• Motor: 0.5 HP
• Capacity: 500m3-8000m3
• Volume handled: 1000 - 3500000 M3/hr

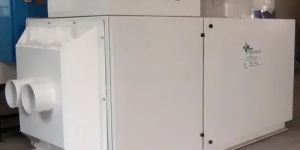

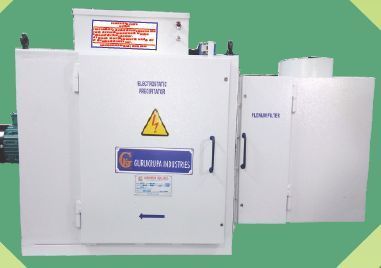

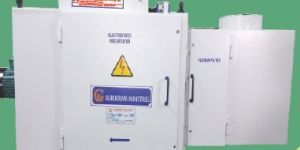

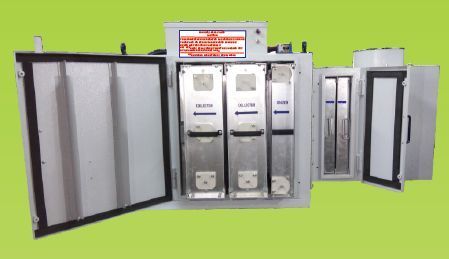

An electrostatic precipitator (ESP) is a filtration device which removes fine particles, like dust and smoke from a flowing gas using the force of an included electrostatic charge minimally impeding the flow of gases through the unit. In contrast to wet scrubbers which apply energy directly to the flowing fluid medium, an ESP applies energy only to the particulate matter being collected and therefore is very efficient in its consumption of energy (in the form of electricity).Applications : Collection of aerosol particles from wood combustion Petroleum Industry / Diesel Generator Ayurvedic Pharmaceutical School / College / Industrial Chemical Laboratories Fabrication Industries / Welding Shops Casting Industries / Forging Industries Laser Cutting & Plasma Industries For Hotel & Restaurant Smoking Zone

• Type: Wet Scrubber
• Certification: ISO 9001:2008
• Weight: 4000-5000kg
• Color: White, Blue
• Voltage: 220V
• Condition: New
• Automatic Grade: Automatic, Semi Automatic
• Driven Type: Electric, Mechanical, Pneumatic
• Warranty: 1yrs
• Country of Origin: India
• Brand Name: S.S.INSULATION
• Material: MS / SS
• After-Sales Service Provided: Yes
• Minimum Particle Size: 10 micron

• Type: Electric, Hydraulic, Pneumatic
• Application: Fume Extraction
• Weight: 0-100kg, 100-200kg
• Color: Brown, Grey, Light White, White
• Voltage: 110V, 220V, 380V, 440V, 580V
• Condition: New, Used
• Power: 1-3kw, 3-6kw, 6-9kw, 9-12kw
• Warranty: 1yrs, 2yrs
• Automatic Grade: Automatic, Fully Automatic, Manual

We are the main supplier of this product.
