INNOVATIVE SOLUTIONS INDIA PRIVATE LIMITED Bhosari Midc, Pune, Maharashtra

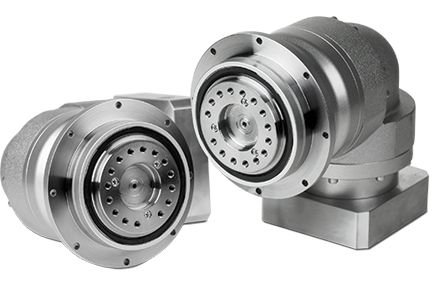

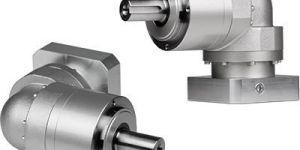

o expand the potential configurations and overall solutions that we could offer our customers, Nidec Shimpo has developed an impressive right-angle planetary gearbox offering. The core right-angle products are established from the base design of their inline equivalents. Similar to our Inline offering, our EV right-angle series have some differences in terms of internal bearing design, output mounting, among others that differentiate each series from the other. The different series are available in the same frame size variety and most of the ratios as offered with the inline.The EV right-angle product family is an excellent option when space is a key design constraint for the equipment manufacturer. With our rapidly growing customer base in the packaging, general material handling and machine tool industries, Nidec Shimpo is seeing accelerating demand for our right-angle planetary gearboxes.Product SeriesEVL Series EVB Series EVS Series EVT Series

Weight : 2 Kg

Packaging Type : Carton Box

Motor Power : 1-3hp

Input Speed : 2800rpm

Usage : Conveyor, Robotics, Pharmaceutical Machinery, Food Packaging Machinery

Specialities : Rust Proof, Long Life, High Performance, Easy To Operate

Type : Planetary Gearbox

Brand Name : NIDEC Shimpo

Material : Cast Iron

Gear Type : Bevel

Our hypoid product families — DynaGear, DynaGear Eco and EvoGear — were developed as a result of in-depth knowledge of different industry sectors and applications. We offer a wide range of frame sizes, ratios and mounting configurations to meet virtually any requirement. The success of our customers is the top priority for NIDEC-SHIMPO. Our product quality, reliability and availability give our customers a competitive advantage as they continue to improve their machine performance to compete globally. DynaGear was developed for highly dynamic servo applications requiring exceptional accuracy and efficiency in a compact footprint. DynaGear uses optimized hypoid gears for high, smooth torque transfer with backlash as low as < 2 arc-min. Tapered roller bearings on the input and output sides of the gearbox absorb high radial and axial loads, ensuring long service life. A planetary input is used to achieve higher ratios. DynaGear uses a weight efficient one-piece aluminum housing for high stability under load. Versatile output mounting options include solid shaft, hollow shaft, dual shaft and robot flange. The extremely compact design provides significant space savings for small installation envelopes. Lubricated for life, DynaGear is a reliable maintenance-free solution. Product Range DynaGear Series DynaGear Eco Series EvoGear Series

Weight : 2 Kg

Packaging Type : Carton Box

Motor Power : 1-3hp

Input Speed : 2800rpm

Application : Conveyor, Robotics, Pharmaceutical Machinery, Food Packaging Machinery

Specialities : Rust Proof, Long Life, High Performance, Easy To Operate

Type : Planetary Gearbox

Brand Name : NIDEC Shimpo

Material : Cast Iron

Gear Type : Hypoid

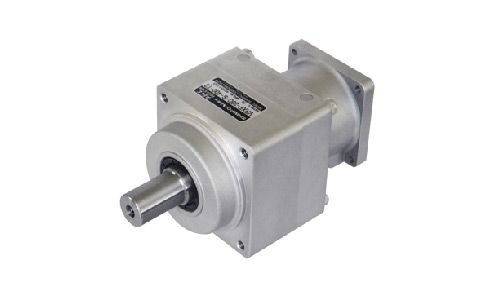

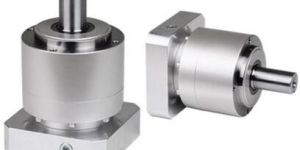

Nidec Shimpo expanded from its early roots in mechanical powertrains into higher precision gearing as the motion control market and servo motor technology started to rapidly evolve. Our initial planetary gearbox series were developed to specifically serve the needs of our major robotics customers in Japan and other areas of southeast Asia. During this product expansion, Nidec Shimpo was able to leverage our production engineering expertise and high volume manufacturing capabilities to become the dominant precision planetary gearbox supplier within the robotics segment and throughout the Asia-Pacific.Product Series: VRSF VRB  VRL VRS VRT

Type : Planetary Gearbox

Brand Name : NIDEC Shimpo

Material : Cast Iron

Weight : 1.5 Kg

Packaging Type : Carton Box

Motor Power : 1-3hp

Input Speed : 2800rpm

Orientation : Horizontal

Gear Type : Helical

Application : Conveyor,Robotics,Pharmaceutical Machinery,Food Packaging Machinery

Specialities : Rust Proof,High Performance,Easy To Operate

Gear Ratio : Minimum 3 to Maximum 100

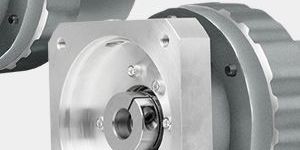

The ERH series is a compact, robust cycloidal reducer designed for servo applications. This product features high reduction ratios in a compact form factor. Its key advantage is exceptional shock load capacity, which eliminates the need to oversize the reducer for that requirement. The dual pin housing of the ERH cycloidal provides the ability to adjust one wheel against the other, allowing us to reduce the output shaft backlash to less than 6 arc-minutes. Rolling contact contributes to minimal friction and high efficiency. Torque transmission elements experience compression - they do not shear. The long output shaft bearing span provides solid overhung load capability.The ERH is ideal for applications operating in heavier industrial environments, but requiring servo motor mounting and good accuracy. Its compactness offers advantages against helical gearing, which requires additional stages to achieve higher reduction ratios. Its high efficiency against worm gears allows our customers to downsize and still enjoy larger output power. The end result is longer service life and tremendous energy saving.   Product Series ERH B Frame ERH C Frame ERH D Frame

Weight : 2 Kg

Packaging Type : Carton Box

Motor Power : 1-3hp

Input Speed : 2800rpm

Application : Conveyor, Robotics, Pharmaceutical Machinery, Food Packaging Machinery

Specialities : Rust Proof, High Performance, Easy To Operate

Type : Cycloidal Gearbox

Brand Name : NIDEC Shimpo

Material : Cast Iron

Gear Type : Helical

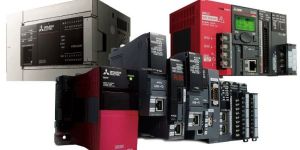

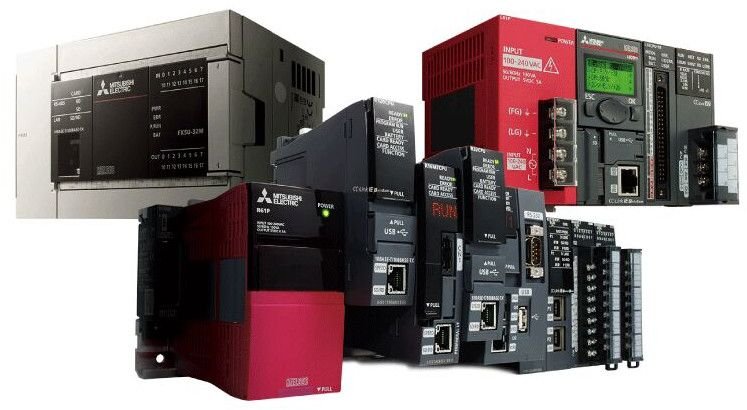

The Mitsubishi Melsec iQ-F Series has undergone many advancements, making way for the next generation Melsec iQ-F Series, with enhanced high speed bus, expanded built-in functions, advanced SSCNET III/H support, and improved engineering environment with parameter settings in GX Works3 engineering software. From standalone use to networked system application Melsec iQ-F takes your business to the next level.

Application : Automotive Industry, Electricals

Brand Name : Mitsubishi
