Instrumentation Equipment Dealers in Shivane, Pune

• Type: Automatic
• Material: Aluminum, Steel
• Certification: ISI Certified
• Application: Industries
• Color: Gray
• Phase: Double Phase, Single Phase
• Shape: Rectangle

Being a Supplier of Motor Starter Panel, we strive to deliver high quality and cost effective products in the market. In order to attain maximum client satisfaction, we strictly check the product quality on several counts prior to final dispatch. The Motor Starter Panel, we supply, is demanded by several industries due to the advanced features and optimum performance it offers.

We are offering fire pump panel. - diesel engine based fire pump panel - engine and pump protection - using microprcessor based controller - customization is possible

Jt-123 is paddle wheel type ss body with flameproof enclosure flow sensor suitable for high temperature liquid application. It is unique combination of robost design and easy to use type flow sensor.vats come out with flame proof connection flow sensor for chemical industry with important features like stainless steel rotar and high temparature application.with proper installations jt-123 sensor can be installed in wide range of pipe sizes. Variety of materials is available in installation fittings like, ms, and ss. These fittings include tees, with specific weld ends, thread ends or flange ends and weldon adaptor

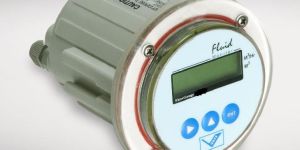

• Accuracy: ±0.25% of reading
• Power Supply: 24 VDC 230 VAC 50 Hz
• Maximum Flow Capacity: 200 LPM/12,000 LPH 500 LPM/30,000 LPH
• Output Options: 4-20 mA Email and SMS RS485/Modbus Long Range Wireless Short Range Wireless
• UI: Backlit LCD 8x2 Dot Matrix LCD
• Repeatability: ±0.1% of reading

When transferring liquids, delayed flow rates or erratic operation can stall processes and drive an entire day's timetable off-schedule. Lower the downtime and experience the extended hours of stable operation Fluidyne's tanker unloading system can provide.   These systems are extensively used in industries while unloading fuel from tankers as an improvement over traditional dip rod measurement standard. We present a wide range of liquid and solvents loading and unloading systems for preventing the wastage of fuel as well as accurate unloading for audits.   Assembled with positive displacement flowmeters, our systems ensure a high level of accuracy in their measurements. These oil and chemical tanker unloading systems are most suitable for liquid fuels like diesel, petrol, kerosene and other solvents.   Solvent and chemical batching-Fluidyne Fluidyne's dispensing and batching systems are flexible and highly dependable. As they come with a small footprint, they are also easy to integrate within existing systems. Our Series 6730 Preset Batching systems can function independently or can be used with existing machines. They completely substitute batch mixing and facilitate on-demand metering, giving a carefully mixed product and decreased waste. Each chemical batching system offers a customized turn-key engineering design, created for specific liquids and designed to handle shifting ratio mixing, varying viscosities, and many other scenarios.   The Configuration of Chemical Batching System: The Series 6730 Batching System is created for dispensing exact preset quantities of liquids into storage tanks, reactors, batch reactor vessels, etc. With the choice of pneumatically or electrically-activated ON/OFF valves, our weatherproof or flameproof batch controller presents a system ideal for solvent and chemical batching applications with automatic cut-off action coupled with high accuracy.   Benefits: Automated batch dispensing utilizing Fluidyns and platforms.   Application: The batch process is a manufacturing process that works in short bursts of time, in situations the size or scale of production does not warrant a continuous operation. Nearly all chemical and solvent production is carried out in batches, especially in the food and pharmaceutical industry. The system is also used at plants for batch solvent extraction.   Fluidyne's dispensing and batching systems can be employed for solvent and chemical batching and transferring, including in the production of: Stainless steel AISI 316 / Teflon wetted parts. High accuracy positive displacement flowmeter. Pneumatic / Electrically operated on/off valves. Weatherproof Batch Controller for nonhazardous areas. 100% CMRS Dhanbad certified Flameproof and Weatherproof batch controller for hazardous areas Zone IIA and IIB Batching accuracy better than ± 0.5% of reading. Stainless steel AISI 316 / Teflon wetted parts. Remote mounting of batch controller possible. Diagnostic alarm for empty pipeline condition. Flow Range Options 1" size - 2400 LPH 1.5" size - 6000 LPH 2" size - 12,000 LPH Fluidyne P.D. flowmeter with oscillating piston Rotary Piston - PEEK Wetted Parts - SS316 ON/OFF Valve Pneumatically Actuated - 1",1.5",2" size Audco Ball Valve threaded/ANSI 15O Flanged Avcon actuator Single or double acting Electrically Actuated Avcon pilot operated Diaphragm SS construction 230 VAC, 24 VDC coil voltage Batch Controller MCU based with 8x2 dot matrix backlight LCD Parameters displayed Preset batch qty in litres Delivered batch qty in litres Cumulative totalizer in litres Instantaneous flowrate in LPH/LPM Relay ouptuts for 3 phase pump motor control Enclosure Weatherproof to IP54 Flameproof/weatherproof to IS2148 1981 (suitable for Gr IIA and Gr IIB) Weatherproof to IP65 option available

• Material: Mild Steel
• Color: AS PER REQUIREMENT

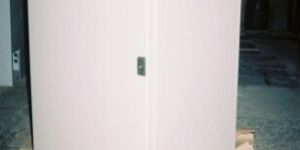

GENERAL SPECIFICATION OF CONTROL PANELS: Construction : Fixed / Draw Out / Single Front / Double Front Material Of Construction : MS CRCA, Load Bearing Member 14 Gauge Others 16 Gauge Finish : Powder Coated @ 80-100 Microns After 7 Tank Treatment Rated Voltage : LT Panels – 660 Vac. Rated Current : UPTO 40008. Short Circuit Level : LT Panels – 35/50/65 KA For 1 Sec. With Initial Peak Of 105 KA Busbar Support : SMC/DMC Busbar : Aluminium /Copper Electrolytic Grade. Earthing Bus In Copperls Provided Throughout Length Of The Panel Safety : Barriers Are Provided To Protect From Live Parts.

• Material: Sheet Metal
• Brand: PS
• Phase: Three Phase
• Degree of Protection: IP 52
• Usage/Application: Industrial Use
• Rated Current: 630 A
• Ambient Temperature: 50 Degree Celsius
• Cable Entry: Bottom
• Paint Shades: RAL 7035 / RAL 7032
• Min. Operating Height: 300 mm
• Max. Operating Height: 1800 mm

we offer amf panel. AMF with synchronization facility can be provided for Generator panels. Whenever main supply fails, its main device gets switched off & signal is given to a particular generator & is started. Load is transferred to that DG. If load is more than capacity of this generator then other generators are started one after the other as per load requirement, are synchronized & load sharing is done.

Auto mains failure (AMF), synchronizes DG set with each other automatically along with auto load sharing and load dependent startstop of DG set. On resumption of mains it operates respective breakers and switches off DG set.

Power Control Centre is used for distribution and control of various power source used in industry. Normally Power Control Centers is installed near power source hence fault level is high. Busbar system in Power Control Centers are designed to suit the fault level as well as temperature rise to 40°c above ambient. Ample space is provided for cable termination. Various protections viz short circuit, overload, earth fault, under voltage etc are provided to protect source and equipment.

• Voltage: 24 Vdc to 80vdc, 24vac to 110vac
• Current Ratings: 1amp to 8amp Max
• Sizes: In Different Size

Very easy to operate yet very powerful automation panel designed for continuous and rugged use. Built on branded PLC and in house SCADA with advanced .net platform, this model is always a choice of any quality user. This model incorporates inventory, schedule, production, quality and safety features of high end batching system.Very easy to operate yet very powerful automation panel designed for continuous and rugged use. Built on branded PLC and advanced .net platform, this model is always a choice of any quality user. This model incorporates inventory, schedule, production, quality and safety features of high end batching system. Application:1. Ready mix concrete plant Other features and highlights Well animated SCADA screen with enormous online information Improved productivity by parallel processing of three cycles at a time by the software Day plan and scheduling of production for the day in software Configurable fine and coarse operation Gate sequencing feature Strong feedback and safety monitoring features

• Brand Name: SEA
• Frequency: 50 Hz to 200 Hz
• Output Power: 900 / 1200 / 1800 / 2400 / 3000 Watt
• Input Phase: 1 Phase 220V AC or Solar DC
• Minimum Order Quantity: 1 Unit

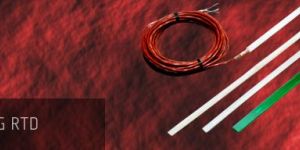

Many applications require continuous temperature monitoring of various devices. The Resistance Temperature Detectors (RTDs) and Bearing Temperature Detectors (BTDs), due to their linear resistance-temperature characteristic are used for temperature sensing, measurement and control of these devices. The output signal of RTD/ BTD is given to a temperature indicator or a temperature controller for achieving the desired measurement and control. Features: Various lead lengths and colour codes of wires can be supplied. Customized designs and enclosures. Ex-stock delivery of standard models. The RTDs are available in various dimensions right from small Bead type sensors to Plate type RTDs. The BTDs are manufactured as per customer requirements and design. Please contact us for readily available, standard designs and special designs. Applications: The RTDs and BTDs can be used for continuous temperature indication and monitoring for the following AC Motors. DC Motors. AC Generators (Alternators). Transformers

• Size: Multisizes
• Type: Control Panels
• Application: Control Panel
• Color: Brown, Grey, White
• Voltage: 110V, 220V, 380V, 440V
• Application: Boiler Control
• Material: ABS, Mild Steel, PVC
• Power: 1-3kw, 3-6kw, 6-9kw, 9-12kw
• Power Source: Battery, Electric, Solar
• Phase: Double Phase, Single Phase, Three Phase
• Autoamatic Grade: Automatic, Fully Automatic, Manual, Semi Automatic
• Warrenty: 1 Year, 2 Years

• Features: reliability & durability, These power distribution boards are built in a way so as to ensure maximum safety along with maximum space utilization & cost effictiveness, Excellent performance.
