Jinsha Machines Law College Road, Pune, Maharashtra

We are the main supplier of this product.

Type : Tapping Machine

Usage : Drilling

Certification : ISO 9001:2008

Condition : New

Operating Mode : Automatic

Power : 0-5Kw

Driven Type : Electric

Brand Name : Jin-Shaa

We are the main supplier of this product.

Type : Self Feed Drill Units

Application : Industrial

Certification : ISO 9001:2008

Weight : 100-500kg

Color : Black

Voltage : 110V, 220V

Finishing : Non Polished

Frequency : 50 Hz

Automatic Grade : Automatic

Power : 3-5kw

Driven Type : Electric

Warrenty : 1year

This tapping/threading  machine developed by us has a tapping/threading capacity of M-4 to M-12 in steel . Unit has a pneumatic feed with a stroke of 150 mm . Automatic reversable of tap takes place on position sensing by pneumatic limit switches. Machines come with taco make reversable tapping attachment, which reverses tap at double speed.Machines can be mounted in any position horizontal , vertical or inclined.Machine has a very small footprint of just 300 mm by 100 mm Technical Specifications Input Power  0.5 Hp three Phase Stroke    150mm Output Speed 100 rpm

We are the main supplier of this product.

Type : Self Feed Drill Units

Application : Industrial

Certification : ISO 9001:2008

Voltage : 110V, 220V

Condition : New

Finishing : Non Polished

Frequency : 40-50 Hz

Automatic Grade : Automatic

Power : 1-3kw, 3-5kw

Driven Type : Electric

Warrenty : 1year

Total stroke : 125mm

We are the supplier of this products.

We are the main supplier of this product.

Type : Pipe Beveling Machine

Weight : 100-1000kg

Voltage : 110V, 220V

Condition : New

Driven Type : Electric

Warranty : 1year

Certification : ISO 9001:2008

Rated Power : 1-3kw, 3-5kw, 5-7kw

Automation Grade : Automatic

We are the main supplier of this product.

Type : Portable Milling Machine

Certification : ISO 9001:2008

Color : Grey

Voltage : 110V, 220V

Condition : New

Power : 1-3kw, 3-6kw

Portable Keyway Milling Machine Jinshaa Machines Portable Keyway Milling Machine. The model JSM 404 Keyway Cutter is designed to mill (6mm) to (36mm ) wide by 200 mm long keyway slots in 110mm to 400 mm diameter shafts. The cutter may be used to mill new keyways ,recut keyways after being weld repaired or to mill a new keyway to replace a damaged keyway .The machine uses a two bar v guide block system to auto align and center the tool to the shaft .for larger size shafts a system of chain clamps are included . The tool incorporates a geaduated depth of cut system .Axial feed is provided for by a manual ratched system. The model uses standard 16 m shank mill cutters The machine comes with a standard storage case a selection of endmills from 6mm to 36 mm and clamping systems from 110 mm to 400mm diameter shafts and with a 50 mm cross stroke .The machine uses Hiwin make Linear Guideways and no Cast iron dovetails guides giving complete rigidity over the milling process Machines are now available with Auto Feed on longitudinal axis . Machines are now available with magnetic clamping also

Type : Portable Keyway Milling Machine

Certification : ISO 9001:2008

Weight : 70-200kg

Voltage : 110V, 220 V

Condition : New

Rated Power : 1-3kw, 3-5kw, 5-7kw, 9-12kw

Automatic Grade : Automatic, Fully Automatic, Manual

Driven Type : Electric

Warrenty : 1 Year

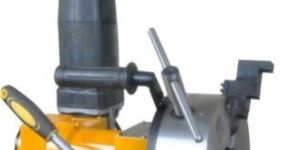

Center Drill Machine with 2.3KW Single Phase Motor and standard 12" Jaw capacity is a precision center drilling machine for bar stock. It will accurately center shafts from 2 1/4" to 12" diameter. You can increase holding diameter to 24" with our optional extension jaws. Our stocked center drill range in sizes up to mm , which all fit our ER 40 SPINDLE .Supplied to Dept of Atomic Energy HyderabadThe drill is carried to the work, clamped onto the stock and the center is automatically located. Rotate the handle, like any drill press, and the center drilling is completed - eliminating the tie-up of heavier equipment.Technical SpecificationsMax Centre Drill Size 26 MMInput Supply Voltage 220 V single phase AC Now capable of drilling a dia of 25 mm in 280 BHN hardened steel

Type : Centering Machine

Color : Black

Condition : New

Center Drill Machine with 2.3KW Single Phase Motor and standard 12" Jaw capacity is a precision center drilling machine for bar stock. It will accurately center shafts from 2 14" to 12" diameter. You can increase holding diameter to 24" with our optional extension jaws. Our stocked center drill range in sizes up to mm , which all fit our ER 40 SPINDLE .Supplied to Dept of Atomic Energy HyderabadThe drill is carried to the work, clamped onto the stock and the center is automatically located. Rotate the handle, like any drill press, and the center drilling is completed - eliminating the tie-up of heavier equipment.Technical SpecificationsMax Centre Drill Size 26 MMInput Supply Voltage 220 V single phase ACMax Stroke of Unit 50mmLooking for Dealers all oList Of CustomersList Of Customer1) Terryair Mumbai Thane 1 2011-20122) Eacher Equipments Pvt Ltd Thane 1 2012-20133) Eacher Equipments Pvt Ltd Thane 1 2012-201 34) Dept Of Atomic Energy Hyderabad 1 2013-20145) Actuant Engg Blgr ( Milwaukee. Cylinder USA) 1 2013-20146) Rotomrtrics Pty Ltd Australia 1 2013-20147) Eurogulf Machines Sharjah 1 2013-20148) RGN Industries Bangalore 1 2013-20149) Pro-Roll United Kingdom 1 2014-201510)GEF Technologies Sdn.Bhd Malaysia 1 2014-2015 11)HYDRO PROKAV PUMPS (INDIA) PVT. LTD1. 1. 2014-1512)Delta Hydraulics Thailand 1 2014-15 13) Dainelli India Ltd 1 2015-201614)14) Grand Valley Manufacturing Company USA 1 2015-16 15) Mahindra sanyo Khopoli 1 2015-16 16) Midhani Hyderabad 1 2016-1717) NDE Clarke Pitchline Ltd, NDE Buildings, Aldbourne Road Works, Coventry CV1 4EQ UNITED KINGDOM 18) Jakom BV Nederlands Feed back of Us CustomerHere is a testimonial that you can use on your website if you like. Thanks for your great service! The Centering Machine that we received from Jin Shaa Machines arrived very well packaged. Nothing was damaged during shipment. All parts were individually wrapped. The machine is very heavy-duty, well-build, clean and looks great. Customer service is excellent

Country of Origin : India

Voltage : 220V

Condition : New

Rated Power : 1-3kw

Automatic Grade : Manual

Driven Type : Electric

Warrenty : 1 Year

Brand Name : Jinsha

Voltage : 220v

We are the main supplier of this product.

Type : Gas Cutting Machines

Certification : ISO 9001:2008

Condition : New

Rated Power : 1-3kw, 3-5kw

Automatic Grade : Automatic

Warranty : 1 Year

Warrenty : 1 Year

Jin-Shaa Machines is now introducing a new concept of tapping machines ,namely the Hydraulic Bent Arm Tapping Machine. These machines are compact light weight, and have a massive reach . Model shown in above photo has a horizontal radial reach of 1250 mm in 360 degress, and a vertical reach of 600 mm from mounting face. These machines come readily supplied with quick change tap  holders For tapping machine is pressed downward on pressing forward switch tap rotates forward on  completion of  tapping  depth just press return switch to reverse motor will return tap starts to return at double speed.. These machines provide a cost effective solution to costly tapping operation on VMC where by Tapping operation is done on this machine thereby saving costly VMC machine hour rate. Also operator idle time during operation is utilized. Technical Specification Radial Horizontal Reach 1250mm Vertical Reach 600mm Tapping Capacity: Model 1) 4 to 24 mm in steel Electric Motor Rating =5 Hp M/s Jin-Shaa Machines 83/10 Rahul Apts Law College Road Erandwane Pune 411004 India Contact : Sudarshan Patil cell no +918975768613. Please visit us at http://jinshaa.en.ec21.com or at www.jinshaamachines.com

We are the main supplier of this product.

Type : Flex Arm Tapping Machine

Application : Cutting

Certification : ISO 9001:2008

Voltage : 110V, 220V

Condition : New

Automatic Grade : Automatic

Power : 0-5Kw

Driven Type : Electric

Warranty : 1year

We are the main supplier of this product.

Type : Tapping Machine

Usage : Drilling

Certification : ISO 9001:2008

Condition : New

Operating Mode : Automatic

Power : 0-5Kw

Driven Type : Electric

Brand Name : Jin-Shaa Machines

We are the main supplier of this product.

Type : Bench Milling Machine

Certification : ISO 9001:2008

Voltage : 110V, 220V

Condition : New

Automatic Grade : Automatic, Fully Automatic

Power : 1-3kw, 3-6kw

Warranty : 1year

Automatic twin spindle tapping machine for tap size M3 X 0.5 Tapping Depth 2mm material CRCA sheet tapping speed 1200rpm Manufactured by Jin-Shaa Machines

We are the main supplier of this product.

Type : Chamfering Machine

Application : Industrial

Weight : 100-200kg

Voltage : 220V, 380V

Automatic Grade : Automatic

Warranty : 1 Year

Certificaiton : Iso 9001:2008

Codition : New

Warranty : 1 year

Automatic Grade : Automatic

Drilling Speed : 3500 Rpm

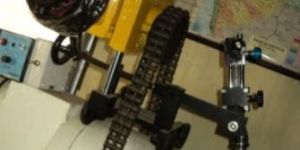

The pipe gas cutting machine is designed to tackle harsh site conditions ,so is made of all steel                      construction Accesibilty to the clamping chain is easyand straight forward also this machine does                     not need any special design chains, it uses chains which are readily available.The pipe gas cutting                   machine is designed to tackle harsh site conditions ,so is made of all steelconstruction.                   proper  clamping chain as per diameter now slide the machine along with chain on to the pipe,                   now tighten the nut on top to tighten the chain. Adjust cutting torch to requirement , start gas supply to ignite torch                   adjust flame length with the height adjustment knob.You are now ready to start cutting of the pipe .  As the machine                   rotates along the diameter the torch now cuts the pipe .You can also do bevelling by adjusting torch angle, bevel                   degree from 35degree to max 45 degree a engraved degree dial is provided for the same on the machine.                   Fixed length chains supplied readily with machine for standard pipe diameters.                   Machine mounts on Pipe OD and on rotating handle indexes around the pipe simultaneously cutting the pipe.                   Min OD 100mm to 2000mm OD(even more with bigger chains)                   Horizontal movement of the torch is 70mm.                   Vertical movement of torch  is 70mm.                     Weight of the machine is 13 kgs Motor Drive PMDC 80 Watts fully variable speed control

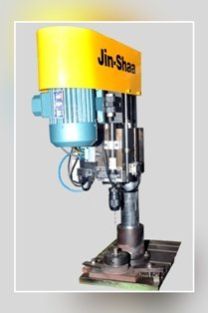

Auto Feed Drilling Machine We are counted amongst renowned manufacturers of Vertical Auto Feed Drilling Machine which is appreciated by our clients all across the nation for its high accuracy and durability. We offer this machine with foot mounting design for accurate unit alignment and high repeatability. Additionally, the unit has two bar LM guide system for stable and accurate drilling condition. Besides, the cone pulleys installed within the unit can operate in varied speeds, as per requirement. Noiseless operation and mounting in any position are other features of the machine. Spindle run out before drill chuck is below 10 microns. Technical Specifications • Drilling Capacity of 1`mm to 8mm • Max stroke of 100mm, including 40 mm regulated stroke • Available Thrust of 1200N at 6kg/cm2 • Speed varies from 640, 1090, 1900 to 3240 rpm.
