Kura Electronics And Electricals Bajirao Road, Pune, Maharashtra

Outline (L x W x H) : 21.4x 15.5 x 23.5 mm   Weight : 20 g   Features : • ZEM Series Relays are designed for switching capacity by 30A to comply with industrial control system use • Compatible fasten terminal arrangement with this kind of power relay • Simple magnetic circuit to meet mass production for low cost offer • Standard type contact form SPDT and SPST are available for customers’ selection • Operating ambient temperature range covers from - 400C to 850C   Dielectric Strength Between Coil & Contact (50/60 Hz for 1 minute) AC 500V Between Contact (50/60 Hz for 1 minute) AC 500V       Life Expectancy (Operations) Electrical 1 x 105 Mechanical 1 x 107   Safety Standard NIL

Color : Black

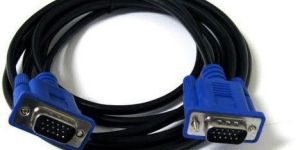

Connector Type : VGA

Size : Customized

We are the leading manufacturers, exporters and supplier of this products.

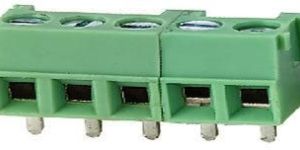

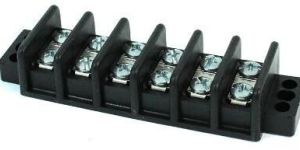

Mounting Options : PCB Terminal Block, Panel Mount, 15 mm DIN Rail

We are the main supplier of this product.

Material : Aluminium, Plastic, Polyester Film, Raw Aluminium

Certification : CE Certified, CQC Certified, IAF Certified, ISI Certified

Color : Blue, Grey, Light White, Metallic, Silver, White

Voltage : 11000V, 110V, 15000V, 220V, 25000V, 380V, 440V, 580V

Condition : New

Frequency : 50Hz, 60Hz

Warranty : 1Year, 2Years

Current Type : AC, DC

Telecom Relays are relatively small and designed to switch signal-level loads in communications systems, test gear, thermostats, instrumentation, consumer electronics and industrial equipment. Some switch maximum currents up to 2 amps, but they usually switch only milliamps in application. These relays typically have relatively low operate and release times compared to other general purpose relays. Most are sealed, and some offer surface mount terminals.

These SSR MOSFET output are used mainly to control the switch of output pole connection, which provides normally open 1A, normally close 1B, 2A,2B, normally open and normally close 1C and 1 photo coupler+1 MOS connectors. The various types of SSR MOSFET output we offer are, Normal Close Type Normal Open / low Current & ON Resistance Type Normal Close + Normal Open Type Normal Open Type The salient features are as follow:  High voltage Low impedance Compact package Ant vibration contactor-less or multiple connector combination and quick response to high frequency

As the name indicates, a solid state relay is an electrical switch comprising solid state or electronic components. Owing to their nature, solid state relays contain no moving parts. Because no mechanical contacts are opened or closed within the relay, there is no arcing or pitting of contact surfaces, thus no wear-out mechanism. As a result, solid state relays can operate for many millions of turn on/turn off cycles with no deterioration in performance. In addition, with no mechanical movement inside, acoustical noise is eliminated. A big advantage in power cabinets that can contain dozens of relays.

As the name indicates, a solid state relay is an electrical switch comprising solid state or electronic components. Owing to their nature, solid state relays contain no moving parts. Because no mechanical contacts are opened or closed within the relay, there is no arcing or pitting of contact surfaces, thus no wear-out mechanism. As a result, solid state relays can operate for many millions of turn onturn off cycles with no deterioration in performance. In addition, with no mechanical movement inside, acoustical noise is eliminated. A big advantage in power cabinets that can contain dozens of relays.

    We offer our clients with fast switching signal relays at highly competitive prices. These signal relays are used in applications like Telecom EPABX, Modem, Security system, Telecom, Vending Machine control, Domestic Application and Cooking Appliance The different models we offer are as follow: LSC-3 10 DS2ES DIL SIL LP5 LQ2

7-segment LED DISPLAYS SINGLE DIGIT, DUAL DIGIT, 4 DIGIT CA , CC , RED , GREEN , WHITE

Country of Origin : CHINA

Type : Seven Segment Display

Material : Plastic

Shape : Rectangle

Application : Electronic, Instrumantation, Lab

Color : Blue, Green, Red, White

Feature : Good Quality

Condition : New

Lighting Type : Led

Outline (L x W x H) : 19.0 x 15.4 x 15 mm   Weight : 9.0 g   Features : • The employment of suitable plastic and metal material is applied suitable to high temperature and various chemical solutions • Complete protective construction is designed from dust and soldering flux. Flow solder type is available for dust and soldering flux prevention. Plastic sealed type is also available for simple washing procedure • The employment of suitable metal material and design is suitable for DC application Dielectric Strength Between Coil & Contact (50/60 Hz for 1 minute) AC 1,000V Between Contact (50/60 Hz for 1 minute) AC 500V       Life Expectancy (Operations) Electrical 1 x 105 Mechanical 1 x 107   Safety Standard NIL

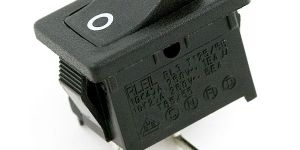

Type : Rocker Switches

Certification : CE Certified, ISO 9001:2008

Condition : New

Max. Voltage : 120V, 220V, 250V

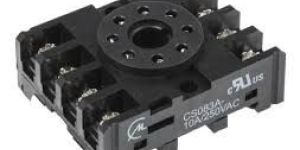

Relay Sockets - The relay plugs into the relay socket. Relay sockets are available in a wide range of sizes, materials, shapes and colors. While all relay sockets perform the same function, the specific application determines the type of relay socket needed. Specific applications have requirements for the relay socket's rating, dielectric strength, insulation resistance and temperature range.

Relay Sockets - The relay plugs into the relay socket. Relay sockets are available in a wide range of sizes, materials, shapes and colors. While all relay sockets perform the same function, the specific application determines the type of relay socket needed. Specific applications have requirements for the relay socket's rating, dielectric strength, insulation resistance and temperature range.

Relay Sockets - The relay plugs into the relay socket. Relay sockets are available in a wide range of sizes, materials, shapes and colors. While all relay sockets perform the same function, the specific application determines the type of relay socket needed. Specific applications have requirements for the relay socket's rating, dielectric strength, insulation resistance and temperature range.

Our reed relays are a mechanical switch operation which controls output pole connection. The contactors may include 1A, 1B, 1C, 2A, or 2C. The main features are as follow:  Integrated mounting packing Compact resistant to high voltage Long usable life and high isolation The areas where these can be applied are computer peripheral, telecom, instrument, security and automation equipment. The various types we offer are as follow:  D Type M Type CG Type DH Type S Type SS Type G Type VH Type V Type C Type F Type

Color : Black

Condition : New

Phase : Single Phase

Current Type : DC

Mounting Type : PCB Mount

Number of Poles : 4 Pole

Relay Type : REED

Brand Name : GOODSKY , COSMO

Shape : Rectangular

Relay Length : 20mm

Power Relays are large type of relay, usually used to switch current to an electric motor or other high-power load. Power relays typically have multiple contacts, and those are usually (but not always) normally-open, so that power to the load is shut off when the coil is de-energized. Perhaps the most common industrial use for Power relay is the control of electric motors.

Voltage : 300V

Current Rating : 12A

    We supply high quality range of PCB solid state and photomos relays at highly competitive prices. These photomos relays are being offered in various models such as L2R LDH LDA / LAA LDP

We offer KW Series photo interrupter which consists of a high radiant power Gas infrared LED and a Si photo transistor. This photo interrupter is housed in a short lead package and is ideal for automatic mounting. The specifications are as follow:

A photo coupler is ensures total electronic isolation, including potential isolation (as in the case of transformer) in an electrical circuit. It comprises of Photo Transistor, Photo Darlington Transistor High speed Photo coupler and OPIC. Ideally used for microelectronics, data processing and telecommunication system, these photo coupler can also be used in switching mode power supply units because of their high safety features. The features are as follow:  Excellent isolation High CTR Compact package High-speed operation Low decay Unit control function not being influenced by field effects The various types we offer are as follow: •  Transistor Output type IC Output Type Mini Flat Type Low Input Current Transistor output High Forward Current Transistor output High Speed Function Resistor output (SSOP Type)

PCB Power Relays are most popular in Power industries as it carries maximum currents from 10 AMP to 40 AMP. Popular applications are UPS, Inverter, heating, ventilating & conditioning systems etc. Sugarcube relays are used for general purpose & mainly fits in small applications. It carries maximum currents from 5AMP to 12AMP. Popular applications are home appliances, control units etc.

Packaging Type : Carton Box

Overall Weight : 10KG

Usage : Factories, Power Plants

Specialities : Stable Performance

Size (Inches) : 2-4INCHES

Overall Dimension : 275x90x285mm

Witdh : 50-80mm

Relay Height : 30mm

Relay Length : 20mm

Brand Name : LEONE

Material : Plastic

Shape : T

Color : Black

Voltage : 12V

Condition : New

Finishing : Polished

Phase : Single Phase

Current Type : AC

Mounting Type : PCB Mount

Power Consumption : 2W-5W

Number of Poles : 3 Pole

Terminals : 6 Terminal

Panel mount relays are typically rated to carry maximum currents from 5 amps to 20 amps in a variety of industrial applications. They are designed to be plugged into a socket or mounted to a panel.
