Liquid Level Switches Dealers in Pune

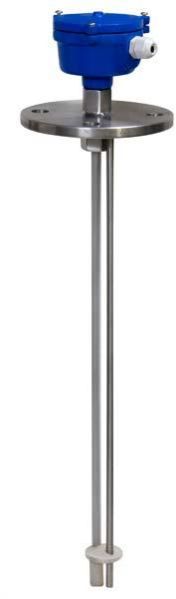

We are the largest manufacturer, exporter and suppliers of Capacitance Type Level Liquid Switch in Maharashtra, India. This is a cost-effective product which can be installed easily with field adjustable switch points. Our team of experts ensures that the product passes through the quality parameters before delivering to the clients. The switch is used in hydraulic/lubrication systems, water /fuel tanks, gensets, dairy & food & ETP.   Details : Cost effective with no moving parts, easy to install with field adjustable switch points Range - 300mm - 5 mtrs Dielectric Constant - ≥1.8 Wtd Parts - SS304/316 Max Temp - 60°C Max Pressure - 5 Kg/cm2 Contacts - 5A, 250VAC x SPDT Enclosure - Cast Al  x IP65 Applications : Hydraulic/Lubrication Systems, Water /Fuel Tanks, Gensets, Dairy & Food & ETP

• Packaging Type: Box
• Cable Length: Connectors
• Usage: Industrial
• Specialities: High Quality
• Switch Size: 2 Module
• Material: SS316L
• Shape: Rounded
• Design: Standard
• Mechanical Life: 5 Year
• Surface Finishing: Power Coated
• Media Type: Liquid
• Phase: Single Phase
• Country of Origin: India
• Current Rating: 100mA
• Switch Type: Regular
• Mounting Options: Top Mount
• Pole And Throw Specification: DPDT
• AC & DC Voltage: 20 to 275 V AC DC
• Operating Temperature: up to 150 degree centigrade
• Temperature Range: -20 to 150
• Measuring Range: 70MM to 2 mtrs
• Process Temperature: Up to 250 degree centigrade,
• Working Pressure: up to 100PSI
• Automation Grade: Manual
• Frequency (Hertz): 50Hz
• Switch Positions: 2
• Electrical Approvals: IP68

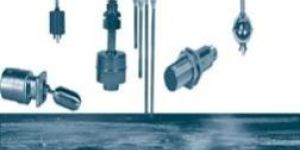

We are offering liquid level float switches specifications :: 1] temperature : 50-150 (Degree C.) 2] contact rating-5 va 3] switching voltage/current-220v AC/ 2 Amp. 4] length as per customer requirement. 5] float : nylon, s.s. , p.u. 6] s.s. Guide tube 7] mounting flange nylon/ss 8] connector-weather proof connector, aluminum diecasting. 9] available up-to 1 mtr level. 10] flange mounting of the float switch will be one to one replacement, as per your requirement.

We are offering ss miniature type side mounted liquid level switch. applications: measuring level of liquid, use in process, food industry. operating principle : the permanent magnet is housed inside the float rod and reed switch is housed inside the stationary stem. When the float gets lifted, the magnet is moved into the proximity of the reed switch; the reed switch contact gets actuated. features: easy to install. low hysterics and high repetition switching accuracy. economical. operation is independent of liquid characteristic.

• Current Rating: 0.5 AMP
• Media Type: Liquid, Dry Material
• Switch Type: SPST
• Material: Brass
• Level Measurement Type: Point Level
• Switching Voltage: 220/240 V
• Mounting Option: Top Mount, Bottom Mount
• Minimum Order Quantity: 1 Unit

Liquid level switches of cable end float switches are designed for controlling levels in large tanks, cisterns or reservoirs and can be directly installed on submersible pumps. The casing is manufactured in blow moulded Polyethylene (PEHD), with 5m PVC cable with protective earth conductor as standard. The switching element is a microswitch, with UL, VDE and CENELEC approvals, activated by a moving stainless steel ball and having an electrical life of 200,000 operations. Non hygroscopic closed cell expanded polyurethane is injected around the switch housing within the outer casing, hermetically sealing the unit. These switches are capable of working down to 100 metres depth in water.
