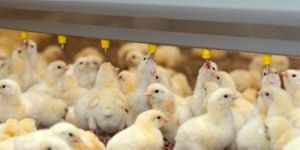

The drinking water in the TwinClean Line is continuously circulated inside the drinking line. In addition a pump is installed in the circulation unit, which pumps the water with defined pressure to the upper line of the drinking line profile. The water runs to the end and flows back again in the lower nipple pipe to the pump. A float switch regulates automatically the pump unit. It ensures that the pump do not run without water. As with other LUBING drinking systems, the height of the water column is set at the pressure regulator. The correct height adjustment is measured at the breather at the pressure regulator. The flow rate of the pump can be adjusted with the flow rate controller. The adjustment depends of the installed drinking line length and is only made once with start-up. The balls in the two front breathers indicate the difference of pressure between upper and lower line. The drinking line principle is laidout in such a way that the pressure at the end of drinking line is always higher as in front at the pressure regulator. Therefore drinking line lengths up to 120 m with only one front connected pressure regulator can be realized.

The tubes and tube bends are easy, reliable and flexible components for the auger conveying. Your feed will be transported to the target without quality losses.   The Advantages at a glance: universal usable for each type of stable for high conveying capacity fast and easy assembling high class Plastic (very high impact and UV-resistance rigid-PVC)

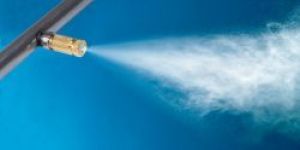

The LUBING Top-Climate-System was developed for effective humidifying, cooling and dust binding of the house air. It works according to the principle of the direct evaporative cooling. Through high pressure nozzles water is injected into the house air with a pressure of 70 bar as fog. The fog evaporates immediately and causes the cooling of the house air by extracting heat. This cooling effect saves energy because the ventilation rate can be throttled. During heating periods and after the arrival of young animals the LUBING Top-Climate-System is used for the rise of the humidity to optimum value. The world-wide approved LUBING Top-Climate-System operates successfully with any kind of ventilation system. Even in open houses with only low compulsory ventilation, a considerable improvement of the house climate is achieved. The LUBING Top-Climate-System contributes substantially to the animals’ health and activities with laying hens as well as fattening poultry and rearing. So the medicine application may be reduced.

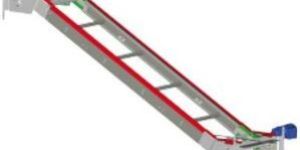

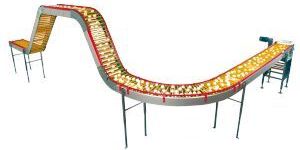

The LUBING Steep conveyor “Climber” works with two outer guided roundlink chains with welded cross bars. This guarantees high performance of function. Together with the plastic tab elements it is the key point of the conveyor and allows to have inclines or declines up to 60° (possible with cover caps only). In the center of the conveyor no supports or guide elements are needed for dividing or diverting the egg flow. All parts are according to the LUBING curve conveyor system but especially designed for farms with floor management as breeder egg farms as well as conveyors for dirty egg return a.s.o. The system consists of proven standard parts as drives, bends, pivots, telescopes for lift systems and intermediate drives for long conveyors without transfers are parts of this concept. Steep inclines or declines are accomplished on short distances. Trouble free level changes of 67 inch (1,7 m) height by 39,5 inch (1 m) length are possible.

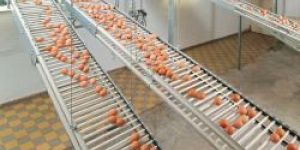

The LUBING rod-conveyer was designed to be easily and therefore inexpensively installed. The design makes it easy to adapt the conveyor to any given situation. The heart of the system is the mounted conveyor belt which due to arrangement minimizes the number of damaged eggs. It is made out of stabilized plastic pipes which are connected by chains on both sides. The belt is guided by profiles made from galvanized steel which are connected to each other by floor supports theat can be changed in heigth. Due to the distance between the pipes smaller eggs will not fall through the belt even at a gradient of 20°.

We are Agra(India) based organization, involved in providing high quality array of products at competitively low prices. With our years of experience and expertise, we strive to make available high quality Poultry Equipment at competitively low prices.

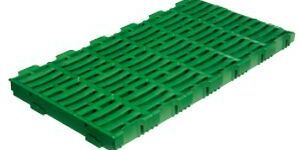

These high quality floorings are suitable for using in flat decks and farrowing pen.An individual layout is made possible by the offered variety of types and sizes. The LUBING evaporative cooling pad system is used in systems where highly efficient cooling is required. It can be used for many different cooling purposes but is particularly suitable for evaporative cooling in poultry houses.

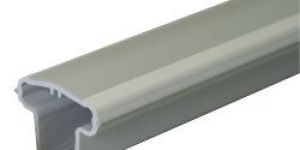

With the alternative animal keeping (barn management, aviary management and the furnished cages) perches are required for the animals. Lubing Peches meets all the requirements which are put to a perch: The broad, only a little bit arched surface ensures a better hold of the animals on the perch and prevents deformations and illnesses. Moreover the perches are are co-extruded of 2 materials. In the fields important for the throats, a tender slide hampering material is inserted into the perch. Smooth surfaces, the absence of sharp rims and special bondings facilitate cleaning and ensure hygiene in the house.

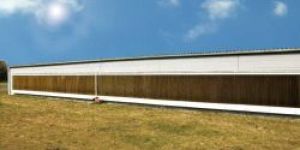

The LUBING evaporative cooling pad system is used in systems where highly efficient cooling is required. It can be used for many different cooling purposes but is particularly suitable for evaporative cooling in poultry houses. Water is circulated through the system by a pump station and supplied to the top of the cooling pad via a water distribution pipe ant the deflector. The water flows down the corrugated surface of the evaporative cooling pad.

The LUBING nipples for piglets and pigs guarantee always fresh drinking water. The robust design provides high working reliability with smallest maintenance. The high quality ma- terials provide for all nipples made complete of stainless steel a high acid resistance. This construction provides a long service life of the nipples and sprayers.

Powdered and thick medicines can lead to deposits in the valve and pipes and causes blockages or leakages if not mixed sufficiently.

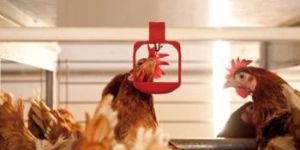

The LUBING drinking system for layers is designed in such a way that it can adapted individually to every layer system. Always hold the optimum water supply of the birds in high regard. Additionally pay attention that the environment affect is less as possible. Splash-water should not lead to corrosion or dampen the manure additionally. Our million times approved LUBING nipples and the extensive accessories, e.g. the perches, air channels and drip cups, underlines LUBING as your most competent partner.

Especially for the floor keeping, space saving and competitive Conveyor systems are requested. LUBING has responded to this demand and developed a conveyor that complies with these requirements. Of course we keep the LUBING quality. The components are: Mini Drive with integrated pivoting unit , chain tensible at the mini drive or at the idling unit, deflection with integrated pivoting unit, gear motor with torque support can be fitted directly on the drive shaft, conveyor chain made of untreated chain links together with pre-galvanized rods. Slopes up to 28° are possible

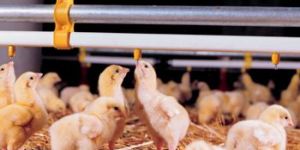

The central element of the floorwatering system is the TOP-Combinipple, reduced. By the reduced flow rate this nipple ensures a dry litter without a drip cup. The right height depends on the size of the animals: They should have to stretch slightly to reach the nipples. Every delivered system includes a height-table, making it easy to find the right height of the drinking line from the first day on. The LUBING Floor-watering system without cups consists of the following elements: Water supply, Drinking elements, Breather unit, Suspension   Water supply: The Main water supply secures an optimum water quality for a long service life of the nipple drinkers. The water should have the quality of drinking water. At any case the water must be filtered. The water runs from the Main water supply through the Pressure regulator with integrated flush system into the drinking lines. The Pressure regulator is available for front or middle-installations.   Drinking Elements: The drinking lines are supplied in assembled elements of 3m length. These elements are to be coupled to the length of the house.   Breather Unit: At the end of each drinking line a flush breather unit is installed. All valves of the breather units close during the flushing, which could be started by hand or alternatively by the automatic flush system.   Suspension: The drinking lines are suspended by hangers, which are stuck on the aluminium profiles every 3 m. These hangers are connected via ceiling pulleys with the central hoisting cable. The drinking line can be adjusted to the desired height by Hand winch or Ceiling winch and can be winched up easily to the ceiling for emptying or cleaning.

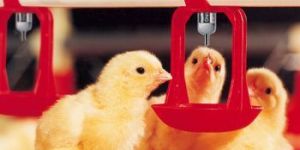

The central element of the floorwatering system is the TOP-Nipple or TOP-Combinipple, ensuring an optimum water flow for every animal age. The combination of nipple and Drip cup ensures a dry manure. The right height depends on the size of the animals: They should have to stretch slightly to reach the nipples. Every delivered system includes a height-table, making it easy to find the right height of the drinking line from the first day on. The LUBING Floor-watering system for broilers consists of the following elements: Water supply, Drinking elements, Breather unit, Suspension Water supply: The Main water supply secures an optimum water quality for a long service life of the nipple drinkers. The water should have the quality of drinking water. At any case the water must be filtered. The water runs from the Main water supply through the Pressure regulator or the Ball tank with integrated flush system into the drinking lines. Both versions are available for front or middle- installations.   Drinking Elements: The drinking lines are supplied in assembled elements of 3m length. These elements are to be coupled to the length of the house.   Breather Unit: At the end of each drinking line a flush breather unit is installed. All valves of the breather units close during the flushing, which could be started by hand or alternatively by the automatic flush system. Suspension: The drinking lines are suspended by hangers, which are stuck on the aluminium profiles every 3 m. These hangers are connected via ceiling pulleys with the central hoisting cable. The drinking line can be adjusted to the desired height by Hand winch or Ceiling winch and can be winched up easily to the ceiling for emptying or cleaning.

Precise dosage during the desired period Adjustable dosing relationship from 0,01 to 15 % (in dependence of the flow rate) Measurement and dosage with highest accuracy All assigned parameters are constantly controlled Very easy to handle Additional information: included water counter, works like a water meter including a daily counter indicates the water consumption/day High consistent against many acids Long-livinga

LUBING drinking nipples are made of high-alloy stainless steel. All plastic components are also made of high-quality materials. LUBING drinking nipples and automatic drinkers for rearing chicks are sturdy and precise. They contain no fragile mechanisms. These designs guarantee long life and minimal maintenance. The valve components and large cross-section arrangement provide optimal protection against contamination.   Therefore, LUBING drinking nipples can offer you: A simple, reliable water supply Consistently fresh and clean drinking water Minimum maintenance, care, and cleaning Improved rearing results Problem-free raising for all animal breeds.

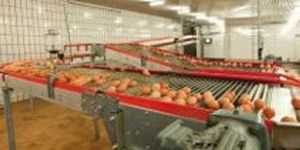

The conveyor system is of crucial importance for egg farms of all sizes. Variations in buildings arrangement always require a tailor-made individual solution. Therefore we based our LUBING curve conveyor on the following concept: Maximum operational safety and minimum maintenance. A unit construction system with elements designed to cope with any imaginable spot requirements, all kinds of curves, heights and distances. Conveyor chain widths of between 200 and 750 mm (8 in. - 30 in.). Capacities ranging from 20,000 to over 90,000 eggs per hour at a conveying speed of 7 m/min. Optimum rentability. Many years of experience with LUBING conveyor-Systems confirm our worldwide leading position.   The conveyor chain runs backwards and forwards on stable plastic sliding profiles. The straight sections of the conveyor belt consist of connecting elements either 2 m or 3 m long. The side profiles and cross-struts are made of anodised aluminium. All plastic sliding profiles and guide elements are wear and tear-resistant and can be easily replaced on the system.

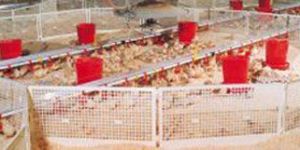

The LUBING brooder guard, Art. 4510-09, made of plastic, will be put together to rings for rearing. With the connecting hings, Art. No. 4512-09, the single brooder guards will be joined together at the top and at the botton for easy steady stand- ing and dismantling. The light plastic sections (800 x 400 mm) can easily be assembled and dismantled by one person. The complete ring can be transported with the handle. Slots for floor-watering-lines can be easily cut with a knife at the perforated sepa-ration-marks.    For tightening up and stabilization, the stabilizer, Art. No. 4511-09, will be moved to the upper edge. Therefore, the brooder guard will be stabilized at the slots. The size of the brooder guard rings can be extended without problems. The limited views calm the animals down and the gripshape guarantees air circulation. After cleaning, the brooder guard is nearly unlimited reusable.

With the automatic flushing-system your drinking system is flushed by itself. With the LUBING controller LCW-8 you can flush up to 8 drinking lines separately. This system can be easily retrofitted into existing drinking systems.   Needed components: With the LUBING controller (1) the duration and timing of flushing can be adjusted to individual needs. With that you can adjust the time required for a sufficient flushing depending on the length of the drinking lines and thus avoid water waste also during the flushing. Each drinking line is flushed separately, but it is also possible to flush several drinking lines at the same time by clamping them to the same contact. The solenoid valve of the flush kit (2) is also attached to the supply line of the pressure regulator. The entire unit between the water supply hose and the pressure regulator is delivered pre-assembled.   3. The flush breather unit art. 4255-00

Aviary system Barn system with several tiers Free range system with several tiers Ecological production system with several tiers   The Drinking-Systems for the alternative systems for layers with several tiers do not differ in principle of the Drinking-Systems for a one tier system. These Drinking-Systems are not comparable with those for the cages or the enriched cages! Under possible uneven distribution of the animals in this system, different values for the birds/nipple must be used. Also with the drinking line length at increased number of nipples other data must be considered. To determine the necessary number of the drinking lines with the maximum lengths and the necessary number of nipples we need the following data: Management type, Number of tiers, Number of birds, House length, House width, Usable area

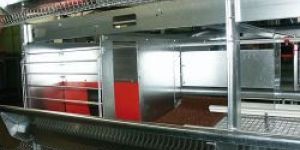

  The air channel for optimum dry manure.The air channel are differenced about the position and funktion in the cage. First the position under the cage and second the position as partition in the cages.
