Magnetic Meter Dealers in Pune

• Mounting Type: Top / Side
• Indicator System: Bi-colour Roller/Follower Capsule
• Housing for Indicator: Bi-colour Roller –SS Housing Follower Capsule – Glass Tube in Aluminium / SS Housing
• MOC of Indicator: SS 304
• Float Chamber: 50NB Non Magnetic Standard pipe
• MOC of Float Chamber: SS 304, SS 316, SS 316L, PP, PVDF, Others on request
• Scale: Aluminium / SS / Acrylic engraved in mm
• Process Connection: Flanged in various Sizes
• Vent: 1/2 INCH Plugged / 1/2 INCH Ball Valve
• Drain: 1/2 INCH Plugged / 1/2 INCH Ball Valve

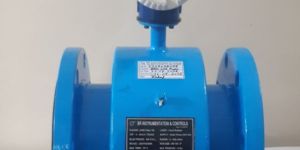

Electro Magnetic Flow Meters MS FL 0117 - HDPE Body   FEATURE : Full Bore Type Simple & cost effective construction Provides wide flow ranges Outstanding accuracy Operates over wide ranges of temperature & pressure Easy maintenance as no moving parts Pulsed DC coil excitation Integral grounding Remote Electronics Specification Media : Liquids Viscosity : 200 cp max Conductivity : Minimum 10 μS/cm Line Size : 25~ 150 mm NB Excitation : Pulsed DC coil Type of Output : 4~20 mA DC Isolated Calibration Range : As per requirement (Factory Calibrated) Accuracy : ±0.5% FS Linearity : ±0.5% Repeatability : ±1% Process Temperature : 60°C max Process Pressure : 5 kg/cm2 Material of Construction of Sensor : Hastelloy C / SS 316L Body : HDPE Wetted Parts : HDPE Power Supply : 230 VAC, 50Hz ±10% Power Consumption :

• Accuracy: : ±0.5% FS
• Power Supply: : 24VDC-230 VAC, 50Hz ±10%
• Media: : Liquids (Excluding Solvents, alcohol etc.)
• Viscosity  : : 200 cp max
• Conductivity: : Minimum 10 μS/cm
• Line Size: : 15
• Excitation: : Pulsed DC coil
• Type of Output: : 4
• Calibration Range: : As per requirement (Factory Calibrated)
• Linearity: : ±0.5%
• Repeatability: : ±1%
• Process Temperature: : 100°C max
• Process Pressure: : 10 kg/cm2
• Material of Construction of Sensor: : Hastelloy C / SS 316L / pl. specify
• Body: : Micro/CS SS / PLASTIC
• Wetted Parts: : TEFLON (PTFE), RUBBER, EBONITE, UPVC
• Power Consumption: : <10 VA
• Response Time: : <100 micro
• Temperature Coefficient: : ±0.01% /ºC
• Transmitter Enclosure: : IP 65
• Process Connections: : Flanged ASA #150
• Operating Conditions: : Temp 0

The working of these meters is based on Faraday’s Second Law of Electromagnetic Induction. It states that, a conductor moving in a magnetic field with the direction of its motion perpendicular to the magnetic field generates an EMF across it and the direction of the EMF is perpendicular to both, the magnetic field and the direction of motion. The generated EMF is proportional to the magnetic flux density, B, the velocity of conductor v and the length of the conductor l. In the flow meter the magnetic field is generated by exciting the coils and the conductor is the liquid itself, under measurement with the length equal to the diameter of pipe.

• Display: Digital
• Voltage: 110 VAC,230 VAC,240 VDC
• Size: 15 mm to 450 MM
• Material: SS316L
• Usage/Application: ETP
• Frequency: 50 Hz
• Protection Class for Sensor: IP65

Made in conformation with ASTM Standard, Magnetic Field Indicator that we offer is an effective gadget to set the current parameters essential for testing a component. Magnetic Field Indicator quickly indicates the current’s adequacy and direction passing through the component. This indicator is offered with a Test Certificate including excellent traceability. Moreover, the Magnetic Field Indicator, we offer, comes packaged in a wooden box.

Good accuracy also when confronted with unfavourable installation conditions.No point or single beam measurement = never a one point measurement can represent the total flow in a pipe.Excellent averaging of the flow profile allover the complete pipe section.The magnetic field is present throughout the flowmeter.

• Type: Digital Epstein Tester
• Application: Epstein Testing
• Condition: New
• Automation Grade: Automatic
• Country of Origin: India
• Brand Name: Ferrites India

Incoming material inspection can be very useful where strict quality standards are maintained. It saves a lot of processing cost since lossy material is inspected at the entry level before it goes to production level. Epstein Stack testing is one of the oldest and widely used method for electrical sheet testing. Ferrites India Make Epstein Square Tester adhere to ASTM, IEC and IS standards and provide accurate results. S21series Hysteresis Loop Tracer for Electrical Steel. Series: BHLT-S21

• Brand Name: DMS
• Usage: Water
• Display: Digital

In order to pace with the technology, we have developed a payment procedure that allows us to make safe and secure transactions. Also, our system is verified by authority. Packaging of products is what we equally focus on. Our industry experts follow all the quality parameters while wrapping the products, we only use exceptional packaging material. Approx Price : Rs 18,000 / Piece

The Ferrites India make Gaussmeters with the help of Hall Probe as a detector are capable of giving direct reading of magnetic field values. These gaussmeters are very good for Laboratory, Industry and field studies. They are made handy, sturdy and are capable of giving correct results under hostile conditions. As the inherent property of digital readout, the instrument has quick response to varying fields, good readability and good accuracy of measurement. It therefore can make visible small and fast variations in magnetic fields which are not possible on an Analog Gaussmeter. Ferrites India make gaussmeters have traceability to NABL accredited laboratory.   Industries : Compressors, CT Manufactures, Educational Institutes, Forging Industry, Geology Study, Magnet Manufacturers, Metal Wire Industry, Motor Industry, Oil Industry, Relay Manufacturers, Research and Development, Special Material Development, Transformer Industry

• Material: Stainless Steel
• Application Media: Any Liquid
• Model Name/Number: PF75H
• Brand: Baumer
• Usage/Application: Chemical
• Connection: DIN//Triclamp

Size: 1 inch to 14 inch Type of flow element: Differential flow element Accuracy: ±2.5% to 3% of actual reading Typical turndown: 10:3 Density compensation: Online monitoring and compensation of density Communication protocol: MODBUS, RTU. Communication port: RS485, RS232 (optional)

• Country of Origin: Made in India
• Model Name/Number: DGM-102
• Brand Name: Dyechem
• Measurement Range: 0 to 20000 Gauss

Magnetic Flow Meter To have complete control of the utilities in the plant, it is very important to measure & monitor their consumptions. Steam being the one of the costly utilities in the process plant a proper measuring system must be in place. Unless & until we monitor, we cannot optimize its usage. We offer Vortex type flow meters for the steam measurement, Electromagnetic flow meters for the flow measurement of water, milk etc. Electro-Magnetic Flow Meter A magnetic flow meter (Mag flow meter) is a volumetric flow meter which does not have any moving parts and is ideal for wastewater applications or any liquid which is conductive or water based. Magnetic flow meters will generally not work with hydrocarbons, distilled water and many non-aqueous solutions. Magnetic flow meters are also ideal for applications where low pressure drop and low maintenance are required. Principle of Operation The operation of a magnetic flow meter or Mag meter is based upon Faraday's Law, which states that the voltage induced across any conductor as it moves at right angles through a magnetic field is proportional to the velocity of that conductor.   Benefits Electromagnetic Flow Measuring devices offer you cost-effective flow measurement with a high degree of accuracy for a wide range of process conditions. The uniform Proline transmitter concept comprises:   High degree of reliability and measuring stability Uniform operating concept The tried-and-tested Mag sensors offer:   No pressure loss Not sensitive to vibrations Simple installation and commissioning

FLOMID FX series is an advanced magnetic flow meter that is suitable for measuring conductive liquids with great accuracy and repeatability. Because of no moving parts or obstruction in the meter body the flow meter offers very low pressure drop and high durability. It comes in compact (integral) as well as remote (separated) mounted versions.   Features • Flow rate measurement is independent of the flow profile • Readings are independent of density, temperature, viscosity and pressure• Absence of obstructing elements gives zero pressure loss and will allow the pass of solids • Can be installed with short straight pipe sections (5 x DN / 3 x DN) • Suitable for corrosive liquids

FEATURES MAG3110 3-axis magnetometer UEXT connector Cable Size: 29 x 18 mm (1.1 x 0.7")

• Accuracy: Upto ±0.5%
• Size Range: 15 NB to 900 NB
• Temperature Range: Upto 100 Deg.C
• Case Protection: IP 65/IP 66/IP 67
• Materials: Stainless Steel
• Process Connection: Flanged as per ASME B16.5

• Display Type: Digital
• Power Source: Battery
• Model Name/Number: PPPLD20 B
• Brand: Permag Products
• Measurement Range: 19.99 Kilo Gauss

• Length: 111 mm
• Width: 64 mm
• Height: 34 mm
• Range: 200/2000
• Resolution: 0.1/1 milli Gauss
• Number of Axis: Single axis
• Frequency: 50-60 Hz
