Magnetic Separators Dealers in Pune

We are staffed with the most up to date machines and cutting-edge technology for the testing of raw material and thus, with without fail we carry out stern quality examinations of the same at the initial stages. Our organization assures distribution of wholesale as well as retail consignments of the goods as per the jointly decided period.

• Belts Length: 4, 5 , 6, 7, 8
• Dia (inch.): 1"

MAGNETIC SEPARATOR Used for removing or collecting fine ferrous or ferromagnetic contaminants from oil tank or coolant tank. Powerful magnet allows large collection of particles. Stainless steel body for rust prevention.

The present methods of Filtration include Paper Band, Magnetic Chip Separator on a conveyor etc. These units encounter problems of paper clogging, dirty coolant escaping from side of paper Band and over Conveyor and cost of paper replacement. Oilmax OMF 100 has been developed for effective filtration without above problems. The coolant passes over powerful rare earth magnets and finest particles of metal and abrasive are collected by magnets and clean coolant is returned back to the machine.

We manufacture drum type magnetic separators which has a magnetic drum with close dense magnetic field which is assembled on non-magnetic SS shaft. Magnetic pole shoes are projected out to form “fins”, for better magnetic field alignment around the drum. The drum is rotated very slowly by a geared motor drive. A non-magnetic SS trough holds the dirty fluid close to drum. Magnetic dirt is picked-up by magnetic field & is attached to the finned drum. Slow rotary motion dumps the dirt collected on closely contoured scrapers. Extended scraper dumps the dirt collected to a bin. Size & number of fins is selected depending on the flow of fluid, viscosity of fluid & quantum of dirt to be handled. Positive rake scraper is selected for volatile fluid like water based emulsion while negative rake scraping is selected for oils. Negative rake scraper keeps the fluid away from bin.

We are offering candle type magnetic separator. Magnetic separation depends on size of the particle, viscosity of fluid, magnetic field density and time in contact with the magnetic field. When particles to be separated are fine, increasing contact time is necessary. Candle type magnetic separator achieves this. Candle type magnetic separator comprises of endless belts of magnetic candles, mounted between two sprockets, mounted vertically. These are revolved slowly to move the magnetic candles through the scrapers. This assembly is installed in dirty fluid tank. In the tank, the fluid movement is very slow, resulting longer contact time between fluid and the magnetic candles. Magnetic dirt is attracted to the magnetic candle surface and is pulled out of fluid with their movement. The dirt collected is scraped off on the scrapers placed above the fluid surface. A conveyer under the scrapers (or a chute in smaller models) collects the dirt and lets it to the bin outside the tank. technical specification: range: 100 lpm to 7500 lpm clarity level: up to 150 ppm

• Material: Stainless Steel
• Thickness: Up to 35 mm
• Brand: Techno Mac Systems
• Usage/Application: Filtration
• Material Grade: SS-304

We are one-step ahead in manufacturing and supplying a wide range of Vessel type Magnetic Separator which are designed to remove micron sized ferrous and per-magnetic contamination from various types of liquids. This range of products offered by us is utilized in varied industries for separating or sorting the contaminants or impurities from the main product.

DETAILED DESCRIPTION Bhaigora Enterprises is an eminent Non Magnetic Tools Dealers in India. Manufactured in accordance with the industrial standards of efficiency and quality, the products are fabricated using the premium quality raw materials. The products are highly appreciated for their flawless function and user friendly operations.

A magnetic drum with close dense magnetic field is assembled on non-magnetic SS shaft. Magnetic pole shoes are projected out to form “fins”, for better magnetic field alignment around the drum. The drum is rotated very slowly by a geared motor drive. A non-magnetic SS trough holds the dirty fluid close to drum. Magnetic dirt is picked-up by magnetic field & is attached to the finned drum. Slow rotary motion dumps the dirt collected on closely contoured scrapers. Extended scraper dumps the dirt collected to a bin. Size & number of fins is selected depending on the flow of fluid, viscosity of fluid & quantum of dirt to be handled. Positive rake scraper is selected for volatile fluid like water based emulsion while negative rake scraping is selected for oils. Negative rake scraper keeps the fluid away from bin. Advantages: • This is very simple separation device to separate magnetic dirt from metal working fluids. • Absence of consumables makes it more attractive for a verity of uses.

Wet Drum Separator are mainly used for the recovery of magnetic / ferrosilicon in dense media plants and iron ores. Wet drum separators work on a similar principle to our other existing drum separators. A stationery magnet system with several radial poles attracts the magnetic material to the drum face. The rotating cover them carries the magnetic from one pole to another, at the same time rotating the magnetic particle to allow trapped non magnetic to free fall.

Magnetic Seperator as the name suggest  are used to remove magnetic dirt from fluids. Based on the removal capacity and the process application, Veeraja has developed 2 series : MC Series – for high flow / high dirt contamination MD Series – for smaller flows

• Type: Magnetic Separators
• Usage: Removing Iron Chips And Ferrous Particles
• Warranty: one year
• Condition: New

We Provide Coolant Magnetic Separator,Which Separate dirt particles from Coolant & reverse the clean coolant to machine. Additional Information: Delivery Time: 1-2 weeks Packaging Details: Crete Packing

A powerful permanent magnetic field uniformly covers the entire drum width to ensure maximum tramp iron removal.   FEATURES Indpro classifier removes coarse and fine impurities from the grain by sieving. The smooth stainless-steel shell with single wiper strip assures positive tramp iron discharge and a minimum of product carryover on powdery or cohesive materials They are available in 12-36" (305-915 mm) diameters Replaceable auxiliary shells are available are recommended where highly abrasive materials are being handled

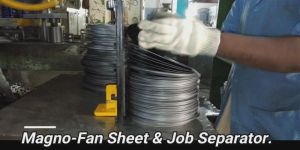

The highest separating capacity is ensured by two rails on the magnetic polar surface. You can separate press blanks or material with irregular shapes in certain intervals. Suitable for separating oil stuck sheets or heavily piledup sheets which are difficult to separate manually. Compact type with highly efficient Ferrite Magnet.

• Capacity: 1 Ton/Hr
• Material: Mild Steel
• Power Source: Electric

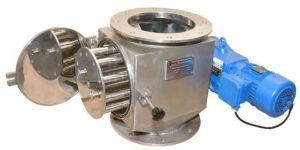

We are offering hopper magnets. hopper with / wothout abrasive resistant lining

High power magnets for hoppers, food industry etc

Magnetic Drums, Coalser Type Oil Skimmers, Customized Paper Band Filter
