Maniks Navi Peth, Pune, Maharashtra

Spare Diaphragm: Maniks manufactures all kind of spares for reverse-jet pulse valves used in bag filters for dust collection, used typically in cement and steel plants. These spares are compatible with valves of various makes like Maniks, etc. The diaphragms are made application-specific by manufacturing in various materials like special Imported polyester, neoprene and viton( for high temperature).

Sequential controller: The Maniks Sequential Controller has been designed to operate the MANIKS pilot valves used on dust collector Equipment. Light emitting diodes (LEDs) provide visual indication of which pilot valve is being energized as well as "Power On" indication. The number of sequenced steps is adjustable from 2 through 10.Controls are provided to adjust the length of time between valves being de-energized (Pulse Frequency / Off time) and the length of time that the valve is energized (Pulse Duration / On time). Silicon semiconductor components control all timing and logic Functions.

pulse jet valve for reverse pulse jet bag filters developed by maniks offers precisely engineered product of market need. Pilot operated pulse valve has just one moving part, the diaphragm. The unique spring less construction provides fast opening & closing of valve. The high speed operation of the valves besides saving of compressed air, helps to provide shock air wave for dislodging of dust from the filter bags. High flow, long life and fast diaphragm action produce reliable & economical operation of the pulse valve. Operation maniks pulse valves are operated by integral solenoid pilot operator. When the valve is energized, the trapped air above pulse valve diaphragm is quickly exhausted causing fast opening of main diaphragm valve, air escapes through bleed hole of main pulse valve to balance the diaphragm pressure and instantly closes the valve. Duty cycle the relative duty time cycle for ac voltage is 20% and for dc 10% . This implies energized time is maximum 15 th of de-energised time for ac and 110 th for dc. Installation mounting in any position will not affect operation of the pulse valve. However good engineering practice is to avoid scale and condensed water entering the valve body for trouble free performance. Standard end connections of bsp are provided. Specifications electrical standard voltage ac 50 hz …….24110220 volts dc ………24110 volts fluctuation …± 10 % power consumption 31 w dc current 14 va ac current temperature range maximum medium temperature …… 85°c maximum ambient temperature …… 55°c special service we offer special service for your existing system components for pneumatic pulse application, to recondition your inoperative valves and assure operating reliability as good as new one. Do not scrap your valves (only imported) unless inspected by our experts.

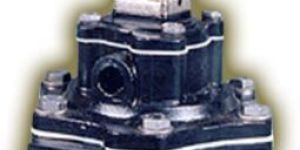

Pulse Valve: • Specially designed for reverse jet-type dust collector systems • High flow Cv(s) to 140 for effective bag cleaning • High cycle life of Diaphragms • High flow factor for effective cleaning • Fast openingclosing • Stainless Steel Fasteners • Valve can be mounted in any position We are a well-known manufacturer, Exporter and Supplier of Pulse Valves. Pulse Valves, that we provide, are precision engineered and highly functional. Owing to their excellence, these Pulse Valves are suitable for varied applications. Pulse Valves available with us are designed to perfection.

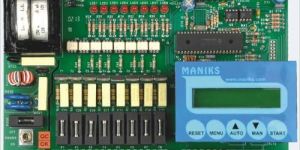

Description : the maniks controllers of this series are micro controller based units which can be programmed to suit clients actual requirements. There are two basic modes of operation : a)program mode b)manual mode in "program mode" the unit can be programmed to follow desired set of instructions and in “manual mode “we can operate out put ( pilot valves ) sequentially. This controller has been designed to operate the pulse solenoid valves used on dust collector equipments. The controller has been provided with seeprom to retain programmed values of various parameters in case of power failure. The programmed values automatically get stored in seeprom. This seeprom will last up to 1million readwrite operations and the stored data will be retained up to many years. Operation : the micro controller provides timed sequential energization of connected loads. When power is applied to the controller, pilot valve will remain energized for the length of time as indicated by the setting of the “on”control. By keeping menu key on key board pressed for approx 3 sec.we can select “program mode” for modification in values of various parameters.

Brand Name : Maniks

Usage : reverse Jet Bag Filter
