VIN marking is one the most critical operation in a vehicle roll out line, & we have supplied n number of machine for the very application. It is a 17 digit number marked on the vehicle for registration. Car cabins, truck cowls, LCV/HCV extruded chassis, Fabricated box chassis you name it we have a installation. In most of the cases our machine is connected to the assembly line PC which sends the VIN for marking. Depending up on the profile of the chassis we design the clamping structure (some them are shown in the pictures). It could be done by neumatic/electromagnetic or simply manual clamping (if cycle time is not crucial).

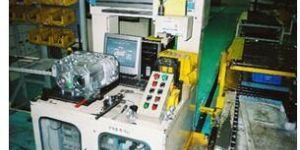

This is another application in which we specialize. Gearbox is marked with running serial number in addition to this a nameplate is riveted on the body which has other information like gear ratio, type, plant code etc. The machine you see in the picture marks gearbox number & nameplate in single setup. As you can see gearbox & nameplate are clamped on two separate fixtures, marking data is received in to the machine PC & given to machine. Marking head is mounted on rodless pneumatic cylinders for up down & horizontal motion. When marking command is given gear is marked first, then the marking head moves to second position & marks nameplate.This machine requires custom software interface which is developed in house.

What you see are special tooling’s developed for marking head which is hanged on a spring balancer. Operator positions the head on the component & gives mark command. Clamping & other operations are done automatically. Such kinds of machines are generally used for marking automobile axles, engine blocks, heavy castings etc.

Scribing technology generates high quality continuous line marking with very low noise level operations. Heavy duty models are perfectly well suited to Vehicle Identification Marking - VIN marking – with deep and reliable indent permanent marks. Other models are preferred to identify flat component surfaces with fine characters of the highest legibility.

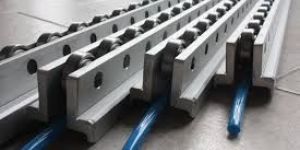

Roll marking is suitable for high output continuous processes by powered machines. Rolling an inscription into a component lessens the marking load because only a fraction of the inscription is in contact at any one time. Many components can be marked without distortion by the rolling method which could not be marked successfully by pressing methods.

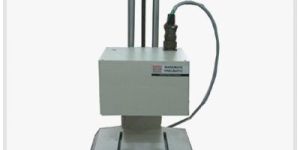

Rigid column, high accuracy, fully programmable electromagnetic dot peen marking machine. Features Rigid column and robust mechanism (twin linear rails on each axis) guarantees dot precision required for the most demanding industrial part identification applications. Pneumatically operated for getting deep marking. Capable of marking all engineering materials up to 62HRc (800Hv) 100 - 220v single phase supply. Low running costs and virtually no consumable costs.

Rigid column and robust mechanism (twin linear rails on each axis) guarantees dot precision required for the most demanding industrial part identification applications.Pneumatically operated for getting deep marking. Capable of marking all engineering materials up to 62HRc (800Hv),Separate controller protects electronics from shock loading of mechanical marking operation.

Dot marking technology also called dot peen marking, stylus pin system or micro-percussion marking consists in indenting series of dots into materials to form human readable alphanumeric identification, logos and 2D Data Matrix codes. Our systems are well known in the aerospace industry for extremely high quality of marks but also appreciated by many other industrial customers for their robustness and reliability. The marking depth can reach 1.5 mm in mild steel on flat of uneven surface (pneumatic “D” versions)

VIN marking is one the most critical operation in a vehicle roll out line, & we have supplied n number of machine for the very application. It is a 17 digit number marked on the vehicle for registration. Car cabins, truck cowls, LCVHCV extruded chassis, Fabricated box chassis you name it we have a installation. In most of the cases our machine is connected to the assembly line PC which sends the VIN for marking. Depending up on the profile of the chassis we design the clamping structure (some them are shown in the pictures). It could be done by neumaticelectromagnetic or simply manual clamping (if cycle time is not crucial).

A flat or contoured die for use in a range of presses from the simple hand operated flypress through to hydraulic and pneumatic presses. Typically utilised to indent fixed or variable information with lowstress options also available for stress critical components:

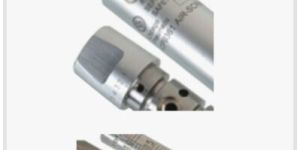

Pulsed Fibre Laser Marking Systems: Pulsed fibre laser can permanently mark a wide range of materials such as carbide, titanium, stainless steel, aluminium, plastics, (…). Pryor offers the most advanced pulsed fibre laser marking product line available:

Pulsed Fibre Laser Marking Systems: Pulsed fibre laser can permanently mark a wide range of materials such as carbide, titanium, stainless steel, aluminium, plastics, (…). Pryor offers the most advanced pulsed fibre laser marking product line available:   Highest specs:  Average power up to 50 W Pulse rate up to 1000 KHz Peak power up to 15,000 W Selectable pulse duration available Reliable:  Diode life exceeds 50,000 hours Pryor pulsed fiber lasers are backed by 2 years warranties Cost effective: High energy efficiency Fit and forget, maintenance free, no consumable costs Diode life exceeds 50,000 hours Small footprint and easy to install:  Compact marking head Small air cooled electronic controller Remote access possible thanks to fibre design       YF10 & YF20 Powerful permanent metal and plastic marking Capable of indent marks Suitable to most traceability applications Cost effective

Pulsed Fibre Laser Marking Systems: Pulsed fibre laser can permanently mark a wide range of materials such as carbide, titanium, stainless steel, aluminium, plastics, (…). Pryor offers the most advanced pulsed fibre laser marking product line available

Lot of machines have been supplied to Wipro Bangalore & Chennai for marking on hydraulic cylinder & some of other hydraulic components. All machines have been designed keeping in mind the verity of components to be fixtures. For example the picture on righ shows marking head mounted on pneumatic slide for up down movement used for marking only on cylinders. The one on left shows three separate fixtures & marking head which can be moved in 3 different directions by providing manual slides. This can be auto missed by providing servo motors. This particular workstation is used for flat, round & axial marking of hydraulic components.

In most of the cases VIN marking is done on line, for this we generally suspend the marking head along with tooling by using any of the above shown methods. We supply total solution like machine could be suspended through a spring balancer which in turn would be travelling on X/y KBK type steel rails. If Very rigid clamping is desired & weight of the unit is more, we supply pneumatic manipulator arms which are mounted overhead. As the marking machine is traveling with the vehicle when the VIN is being marked, special data transfer cable are required which we import from Europe.

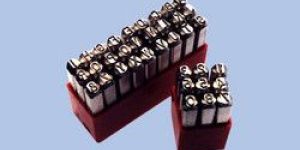

Marks Pryor are master engravers of steel and offer a wide range of dies to suit most industrial applications and the many different materials that require marking, Features:   High precision, durable dies to provide clear marking on your product. In house expertise and experience in inscription design, application engineering, and the selection and heat treatment of appropriate tool steels. Marks Pryor guarantee all our customers commercial confidentiality to ensure that branding and product launch information remains secure. Die design approval if required and 3D visualisation of complex marks capability. Ongoing database maintenance and the retrieval of previous masters ordered. Inscription sizes down to 0.25mm and low stress options available for critical component marking. CAD/CAM and CNC capability.

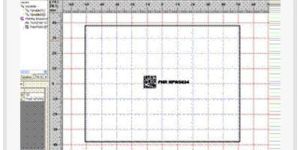

Windows based EtchMaster-Pro™ layout creation software Graphical and textual interfaces provide ease of use Support for all windows based printers Support for Visual Basic scripting Direct control over EtchMaster USB hardware and other third party devices Barcode and Data Matrix including support for UID specification Graphical CAD file imports Flexible variable modes including serial numbering and timedate All True Type fonts supported as well as several vector formats

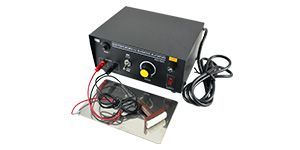

Low capital investment, High contrast and quality Can mark the hardest materials (carbides), Compatible with Data Matrix technology, Small to medium production, Can be fully programmable.DC & AC in one operation, USB Connectivity allowing download of settings from PC to unit, Quality mark without work piece distortion, Compatible with Data Matrix technology,M Quality mark without work piece distortion.

Windows based EtchMaster-Pro™ layout creation software Graphical and textual interfaces provide ease of use Support for all windows based printers Support for Visual Basic scripting Direct control over EtchMaster USB hardware and other third party devices Barcode and Data Matrix including support for UID specification Graphical CAD file imports Flexible variable modes including serial numbering and timedate All True Type fonts supported as well as several vector formats

Windows based EtchMaster-Pro™ layout creation software, Graphical and textual interfaces provide ease of use, Support for all windows based printers Support for Visual Basic scripting, Support for all windows based printers Support for Visual Basic scripting, Barcode and Data Matrix including support for UID specification, Graphical CAD file imports, Flexible variable modes including serial numbering and timedate, All True Type fonts supported as well as several vector formats.

With a modular design these dot peen marking machines are aimed to be integrated on production lines or installed in turnkey design to order stations. This product line ranges from medium production to 247 capable systems.ie Our 3000 controller offers a wide range of communication and IO possibilities with user friendly embedded interface. Most of our stylus pin marking machines are based on electromagnetic marking pin technology (no need for air supply). We also offer very deep marking equipment using pneumatic dot peen system.

Dot marking technology also called dot peen marking, stylus pin system or micro-percussion marking consists in indenting series of dots into materials to form human readable alphanumeric identification, logos and 2D Data Matrix codes.

Dot marking technology also called dot peen marking, stylus pin system or micro-percussion marking consists in indenting series of dots into materials to form human readable alphanumeric identification, logos and 2D Data Matrix codes. Our systems are well known in the aerospace industry for extremely high quality of marks but also appreciated by many other industrial customers for their robustness and reliability. The marking depth can reach 1.5 mm in mild steel on flat of uneven surface (pneumatic “D” versions)

Roll marking is suitable for high output continuous processes by powered machines. Rolling an inscription into a component lessens the marking load because only a fraction of the inscription is in contact at any one time. Many components can be marked without distortion by the rolling method which could not be marked successfully by pressing methods.
