Metal Cutting Machine Dealers in Shukrawar Peth, Pune

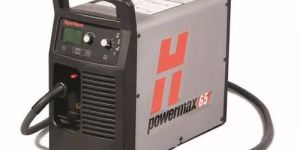

Plasma cutting is a process that is used to cut steel and other metals of different thicknesses (or sometimes other materials) using a plasma torch. In this process, an inert gas (in some units, compressed air) is blown at high speed out of a nozzle; at the same time an electrical arc is formed through that gas from the nozzle to the surface being cut, turning some of that gas to plasma. The plasma is sufficiently hot to melt the metal being cut and moves sufficiently fast to blow molten metal away from the cut.

• Model Number: CUT-120 Plus
• Brand Name: SH Electronics Co
• Max Cutting Thickness: 25mm
• Automatic Grade: Semi Automatic
• Voltage: 380V
• Gas Supply: Inbuilt Air Pump
• Frequency: 50 Hz
• Output Current: 120A

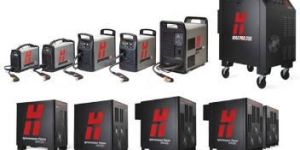

Plasma cutting is a process that is used to cut steel and other metals of different thicknesses (or sometimes other materials) using a plasma torch. In this process, an inert gas (in some units, compressed air) is blown at high speed out of a nozzle; at the same time an electrical arc is formed through that gas from the nozzle to the surface being cut, turning some of that gas to plasma. The plasma is sufficiently hot to melt the metal being cut and moves sufficiently fast to blow molten metal away from the cut. WHAT MUST A CNC BE EQUIPPED WITH TO BE ABLE TO CONTROL A HIGH DEFINITION PLASMA CUTTING PROCESS? Such a CNC should be similar to the ones controlling Laser Cutting processes. A modern CNC should have Response time less than 0.5 msec servo loop because it must be in a position to respond faster than the cutting process it controls. It should also have linear control over the current of the Source for it to be adjustable to the Feed Rate recommended.   WHAT IS HIGH DEFINITION PLASMA? High Definition Plasma is the same process as plasma cutting but the plasma beam is delivered through a much smaller nozzle orifice at higher velocity and results in more accurate profile cutting. A shield gas is also used to swirl around the plasma beam to constrict the beam and keep the cutting beam straight resulting in a square edge on the cut parts and better cut surface quality. WHAT IS PULSE PIERCING? The cutting energy is controlled by being delivered in high-and-low-current pulses, enabling the reduction of the volume of metal melted. This way we avoid risking molten metal spattering over the nozzle and sensors and destroying them. Pulse piercing is an important tell-tale trial for CNC suitability for High Definition Plasma cutting. WHAT MATERIALS CAN BE CUT ON A PLASMA CUTTER? Plasma Cutters are able to cut many conductive materials including Mild Steel, Aluminum, Copper and Stainless Steel. The most popular material cut in the industry is mild steel which also gives the best cutting results.

The Quick IN offers other benefits too: your current core drills and accessories with M 18 x 6 or Weldon fittings can still be used via an adapter.   Benefits: For instant tool changes. Small, extremely lightweight core drilling unit with superb ease of use for vertical and overhead use. Quick IN rapid change system for fast, keyless tool changes. Continuously adjustable double dove-tail guide enables use of long drilling tools without removing the machine from the work piece. Powerful motor. Powerful electromagnet. Magnets monitor system. Integrated cooling lubricant unit. Electronic overload protection. Restart protection. Superb service life. Wide range of accessories.

Gear Hobbing Machine, Sheet Rolling Machine, Shearing Machine
