Metal Studs Dealers in Pune

For studs that are not completely threaded, there are two types of studs: full-bodied studs, and undercut studs. Full-bodied studs have a shank equal to the major diameter of the thread. Undercut studs have a shank equal to the pitch diameter of the screw thread. Undercut studs are designed to better distribute axial stresses. In a full-bodied stud the stresses are greater in the threads than in the shank. Undercut studs (rolled thread) are also stronger because the metal is "rolled" up to the major diameter, not removed. This preserves the grain of the steel, and in some cases even enhances it. Full bodied studs (cut thread) are weaker because metal is removed to create the thread, disturbing the grain of the steel.

• Brand Name: Planet Automation Systems

We offer Shear Beam load cell Mounting Stud. We are manufacturing accessories of Load Cell & Weight Indicators and Controllers.

• Material: Mild Steel
• Surface Treatment: Polished
• Packing Type: Box
• Diameter: 12mm, 16mm, 18mm, 20mm and 24mm
• Application: Fittings
• Color: Silver

• Size: AS PER CUSTOMIZED
• Material: MS,SS,Carbon Steel
• Surface Treatment: Black Thermal, Zinc Plated, Chrome Plated, Electro Plated
• Usage/Application: Industrial
• Pack Type: Packet
• Brand: PRIME

• Material: Mild Steel
• Condition: New
• Application: Industrial

We offer Shear Connector.. Used in Building Composite Structures, Rail Girders, Bridges,etc

We have engaged ourselves in manufacturing a precision range of Steel Studs for our esteemed customers. Furthermore, available in standard as well as in custom-made designs, these Steel Studs are used for diversified applications in different industries. Manufactured with the use of quality assured steel and brass, our Steel Studs are favored for their extended functional life, precision engineering and fine finishing. Our studs are suitable to be used in the following industries : Automobile Electrical Engineering Automotive

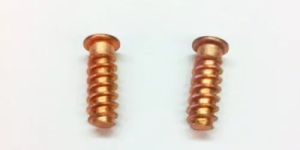

• Material: MS
• Size: 3 x 10 mm
• Application: Industrial
• Corrosion Resistance: Yes
• Head Shape: Round
• Coating: Copper Plated

• Sizes: M5 - 1.6 Pitch

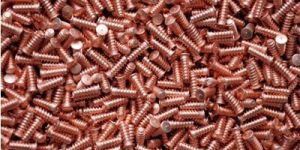

Offering you a complete choice of products which include Threaded Studs such as Down ARC Reduced Threaded Studs, Drawn ARC Threaded Studs and Coarse Threaded Studs.

Shear Studs, also called as Shear Connectors, are the latest technology products used in construction of building and bridges for forming a composite RCC structure. With the help of our Shear Studs, construction time gets reduced considerably. Also, Shear Studs that we offer enhances the strength of the structure more than the RCC structure. Our Shear Studs are manufactured according to international ISO 13918 standards. Diameter : 13, 16, 19, 22, 25 Minimum Order Quatity : 20000 Pieces Packaging Details : Wooden Box / Steel Barrel

• Country of Origin: India
• Type: Metal Stud
• Material: Metal
• Feature: Shiny Look, Unique Color
• Features: Corrosion and impact resistance ,High performance ,Efficiency, Reliability ,Durability

Double end studs of Threaded Studs like Single and Double Ended Threaded Studs. These Threaded Studs-are used in numerous mechanical and industrial applications.

Our clients can avail from us, a range of high quality full threaded studs. These full threaded studs are made from quality steel and other alloys and find applications in various industries. Various industrial automotive studs provided by us can be availed in various sizes and shapes. These studs are highly durable and precisely designed.

Under the brand name TVS; we make available in the market Stainless Steel Studs. These Stainless Steel Studs are manufactured using finest quality metal and used in different industrial segments. Furthermore, our range of Stainless Steel Studs is made available in different shapes and dimensions. Types NaturalPlatedGalvanizedHotdiped Attributes Fine finishLow maintenance cost Anti-corrosive natureLess wear and tear

• Diameter: 13, 16, 19, 22 and 25 mm

The latest technology used in construction of buildings and bridges. They are used as a major element in the composite structure. Excellent quality, high load bearing capacity, durability, faster speed of construction, etc. are some of the reasons why it is gaining popularity in the construction industry. "Shear connector means headed steel studs. These are welded to a structural member for achieving composite action with concrete. Shear connector is one of the major elements in the composite structure."

• Features: Durability,Dimensional accuracy,Seamless finishing

• Features: Sturdiness, Corrosion-resistance , Light-weight.

Using IS-2062 Grade A, En-8, En-19, SS-410, SS-304, SS-316 or any other material as per the specification of the customer. As per IS-1367 Class 5.6, Class 8.8, Class 10.9, Class12.9, ASTM A193 B7, ASTM A193 B8, B8M, B16, ASTM A563 L7, L7M. Surface Treatment: Blackodised, Phosphated, Zinc Plated with yellow, blue, olive green passivation. Threading sizes from M6 to M100 ISO Metric 6g as per IS-4218 or equivalent in BSW / UNC, of following types Full Thread Studs as per DIN 975. Rods with Threading on one side as per DIN 524. Studs with Threading on two sides as per DIN 939, DIN 940, IS 1862 Type A, B & C. Tip-Welding Studs. Tie Rod Studs for Plate Type Heat Exchangers. Square / ACME Thread Studs (Lead Screws). Other Studs as per your specific requirement and drawing.

Ours is a name to settle upon, when looking for Internal Threaded Studs. Based in Delhi, we are the notable Manufacturer, Exporter and Supplier of Internal Threaded Studs. The Internal Threaded Studs we make available are developed in adherence with the international quality norms & standards. Customers can obtain the Internal Threaded Studs in different specifications & sizes as per their requirements. We quote nominal prices and promise timely delivery of medium as well as bulk orders.

• Grade: As per customer spec.
• Range: M5 to M10
• Class: 4.6, 8.8, 10.9

We manufacture fully cold forged dowel pins, double ended studs, one side pin and other side thread with hex shape in between. These items can be cold forged as per clients specification in property class 8.8 / 10.9

• Brand Name: Primet
• Material: MS HT SS
• Size: M3-M110
• Material Grade: MS, HT, SS
• Finishing: Plated
• Finishing Type: Black Thermal
• Product Type: Fasteners
• Condition: New

• Both end Threaded Studs as per DIN938 / DIN 939

We provide a comprehensive range of double ended studs that is manufactured from quality tested raw materials. The double ended studs have been manufactured using sophisticated and highly accurate equipment. Available in an array of dimensions, the double ended studs are offered to the clients at market leading rates. attributes rust resistant longer service lifehigh performanceheat resistant used for fastening applications

• Material: MS & High Tensile
• Country of Origin: Made in India
• Usage/Application: Industrial
• Threaded Type: Full Square Threaded
• Brand: DEPL
• Quantity Per Pack: 50Kg/Bag

• Application: Industrial
• Material: Mild Steel
• Color: Silver
• Product Type: Threaded
• Condition: New
• Threaded: Yes

It consists of only a cylindrical shank threaded at both ends. The nut-end is threaded for a length slightly more than the thickness of a nut or nuts to be used. The other end called the metal-end is threaded for a length at least equal to the diameter of the stud. The length of the plain part between the two ends, depends upon the thickness of the piece adjoining the nut. The stud is used in place of a bolt, when there is insufficient

We have developed & manufacturing special type of force fit stud & presently supplying to Tier 1 customers for carburetor support assembly.
