Microcontroller Development Board Dealers in Pune

• Brand Name: VSOFT
• Packaging Type: Wooden Box
• Weight: 1 Kg
• Surface Finishing: Wooden
• Phase: Single

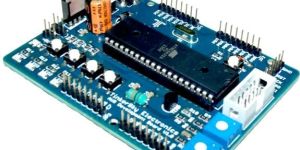

Avr development board v1.0 integrates atmega32a microcontroller which uses risc core. Atmega32a is low-power cmos 8-bit microcontroller based on avr family of microcontroller. This board specially designed for beginners by keeping hardware complexity as minimum as possible and its a real value for money.

• Voltage: 5 V
• External Power Supply Range: 7 V to 20 V
• Layout: Professional Glass PCB Layout
• Boards Support: AVR ATMEGA16, ATMEGA32, ATMEGA8535 Microcontrollers
• Display Type: Two Line LCD Display (2x16), Two multiplexed 7-Segment LED Display

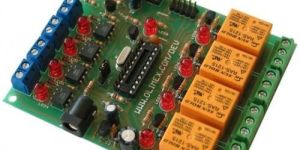

DEVELOPMENT BOARD FOR 20 PIN AVR MICROCONTROLLER WITH STKXXX COMPATIBLE 10 PIN ICSP FEATURES ICSP 5x2 pin connector for in-circuit programming with AVR-PG1 or AVR-PG2 DIL20 microcontroller socket status LED connected to PB4 reset IC ZM33064 Quartz crystal oscillator circuit 10MHz Voltage regulator +5V, 7805 and filtering capacitors Power plug-in jack RS232 DB9 female connector , simple level shifter with transistors and diodes 4 opto-coupler isolated inputs with screw terminals input status LEDs 4 relay outputs with 5A/250VAC contacts with screw terminals output status LEDs four mounting holes 3.3 mm (0.13") FR-4, 1.5 mm (0.062"), green solder mask, white silkscreen component print dimensions 80x100 mm (3.9 x 3.15")

Microcontroller Development Board, arduino board

Avr Development Board, USB ASP Programmer for AVR, 8051 and ATMEGA Series
