Micron Instruments Co. Kothrud, Pune, Maharashtra

These are used as comparator samples having different patterns of flatness such as Optical Flat, Convex, Concave etc and mainly required for technical institutes and colleges and are used with monochromatic light unit. measuring faces, this micrometer is basically used as comparator.

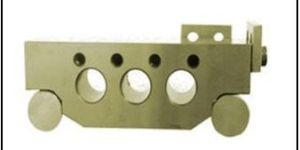

A special type of sine bar is sine center which is used for conical objects having male and female parts. It cannot measure the angle more than 45 degrees In the advanced type some holes are drilled in the body of the bar to reduce the weight and facilitate handling. It is available in the range of 0-100; 0-200; 0-300mm

We manufacture a high quality range of Sine Bars that are used to measure small angles off of plumb. These products have garnered a reputation in the market owing to their high quality and reliability. This is made possible owing to the use of premium grade raw material in the manufacturing process that also makes these products highly durable. Due to these features, this range proves to be extremely cost effective and consequently, much appreciated by our clients from India as well as abroad. The high precision micrometer adjustments measure the angle, which corresponds to 0.087 inch for 1 degree. This is especially useful while tilting canter vertically press rolls forwards ½ or 1 degree.   These are used with monochromatic light unit for checking the flatness. Available sizes: 25mm 50mm and 100mm having lambda/4 to lambda/6 accuracy. (Checked with master with lambda/20 accuracy flat)

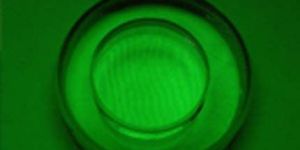

Micron" Green sorce Monochromativ Light Unit is an "Echo Friendly" constant frequency light sorce to check Flatness.Normally yellow orange light from a sodium vapour lamp light sorce is used to check the flatness. The work experience shows this light takes much time to get constant light and working in this light sorse id tiresome to eyes. We have developed a green monochrometic light which have a power saving light sorce and ir ready instantantly when swithc on. The fringes in green monochromatic gives no fatiuge to eyes. Flatness calculations and checking is same.

effective diameter measuring micrometer (edmm) is also commonly known as fcm or floating carriage micrometer. This instrument is used for accurate measurement of 'thread plug gauges'. Gauge dimensions such as outside diameter, pitch diameter, and root diameter are measured with the help of this instrument. All these dimensions have a vital role in the thread plug gauges, since the accuracy and interchangeability of the component depends on the gauges used. To reduce the effect of slight errors in the micrometer screws and measuring faces, this micrometer is basically used as comparator.robust graded cast iron body. Seasoned for dimensional stability. Integrated “v” guide ways ground to finest accuracy. Micrometer least count - 0.0002 mm or 0.001 / 0.002 / 0.005 with non rotary spindle. Micrometer & fiducial have 8 mm dia spindle. Instrument accuracy maintained in accordance with npl uk specifications the instrument is very useful for thread plug gauge manufacturers, gauge calibration laboratories, established under nabl accreditation and in standard room where inhouse gauge calibration is carried out standard accessories male and female centers, micrometer 0 - 25 mm (non rotary spindle), least count 0.0002 or 0.001 sensitive fiducial indicator ( 375x ) npl uk design patent no. 541308 or dial type indicator (optional) set of required allen - keys / other tools. odd flute attachment hook and pillars for holding measuring wires packed in wooden box.

Micron" Green sorce Monochromativ Light Unit is an "Echo Friendly" constant frequency light sorce to check Flatness.Normally yellow orange light from a sodium vapour lamp light sorce is used to check the flatness. The work experience shows this light takes much time to get constant light and working in this light sorse id tiresome to eyes. We have developed a green monochrometic light which have a power saving light sorce and ir ready instantantly when swithc on. The fringes in green monochromatic gives no fatiuge to eyes. Flatness calculations and checking is same.

Material : Aluminium

Brand Name : micron

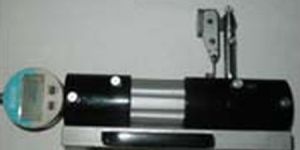

t's universal design enables it to calibrate both plunger and lever DTI's (Dial Test Indicators). It can also be used for calibration of bore gauges. The unit also determines gauge hyteresis which is not possible using conventional gauge blocks. This dial gauge calibrator can be used in calibration laboratories and also be used for roaming shop floor gauge calibration checks as it is a portable device. The test is performed by comparison with the master gauge. The calibrator uses the Abbe's principle. SPECIFICATIONS : 25 mm travel covering the majority of common indicators Accepts lever indicators with stylus up to 40 mm long Computer interface for efficient calibration reports. Plunger dials with 8mm or 38” shank can be tested. Bore gauges up to 150 mm can be checked. The standard Kit incorporates, Cary case ModelDGC-25 calibrator Master gauge (Baker Electronic Dial Gauge ED1) RS 232 cable to transfer output to computer with software Magnifying glass 38” to 8 mm stem mounting sleeve. Bore Gauge holding bracket and extension rod. For more details and enquiry please contact.

it's universal design enables it to calibrate both plunger and lever dti's (dial test indicators). It can also be used for calibration of bore gauges. The unit also determines gauge hyteresis which is not possible using conventional gauge blocks. This dial gauge calibrator can be used in calibration laboratories and also be used for roaming shop floor gauge calibration checks as it is a portable device. The test is performed by comparison with the master gauge. The calibrator uses the abbe's principle. specifications :25 mm travel covering the majority of common indicators accepts lever indicators with stylus up to 40 mm long computer interface for efficient calibration reports. Plunger dials with 8mm or 3/8” shank can be tested. Bore gauges up to 150 mm can be checked. The standard kit incorporates, cary case modeldgc-25 calibrator master gauge (baker electronic dial gauge ed1) rs 232 cable to transfer output to computer with software magnifying glass 3/8” to 8 mm stem mounting sleeve. Bore gauge holding bracket and extension rod. For more details and enquiry please contact.
