MICROSET CONTROLS Sangamvadi, Pune, Maharashtra

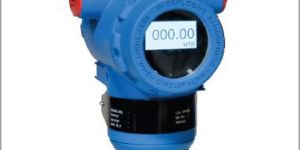

MicroSet series MS ULT - 311 is a 4 wire Ultrasonic Level Transmitters specially designed for non contact type level measurement. Ultrasonic level measurement is based on the time required by ultrasonic pulses to travel from sensor & surface of liquid & back to sensor. Ultrasonic level transmitters are the best for applications such as slurries, corrosive liquids & waste water. The transmitter provides 4-20 mA DC continuous output with local indication through LCD. The measuring range is available from 0.6 to 8 meter.

Weight : 1.5 kg

SALIENT FEATURES Non contact type level measurement. 2 wire operation. Integral LCD Display Self diagnostic function i.e. Error message are displayed. Automatic temperature compensation. Instrument configuration settings are password protected. Accuracy 0.25% of F. S. Compact size & easy maintenance. Reliable & cost effective system. Software calibration.   DESCRIPTION MicroSet series MS ULT - 311 is a 4 wire Ultrasonic Level Transmitters specially designed for non contact type level measurement. Ultrasonic level measurement is based on the time required by ultrasonic pulses to travel from sensor & surface of liquid & back to sensor. Ultrasonic level transmitters are the best for applications such as slurries, corrosive liquids & waste water. The transmitter provides 4-20 mA DC continuous output with local indication through LCD. The measuring range is available from 0.6 to 8 meter.   TECHNICAL SPECIFICATIONS Measuring Range : 0.6 to 8 mtr Type of Output : 4 - 20 mA DC, 2 wire Power Supply : 24 V DC, External Power Consumption : < 500 mW Dead Band : 0.6 mtr Display : 8 x 1 LCD (4 digit for Level) Accuracy : +/- 0.25% of F. S. Operating Temperature : -30 to 80°C Operating Pressure : Atmospheric Beam Angle : < 7° Response Time : < 500 mSec Measuring Frequency : 25 Khz Temperature Coefficient : +/- 0.01% per°C Enclosure : Weather-proof, IP-65 Process Connection : 2” BSP Threaded Mounting : Top of the tank Weight : 1.5 kg Operating Conditions : Temperature 0 to 55 C / Humidity 5 to 95% non condensing NOTE : Process temperature & pressure exceeding specified limits, kindly consult with factory.

Non contact type level measurement. 2 wire operation. Integral LCD Display Self diagnostic function i.e. Error message are displayed. Automatic temperature compensation. Instrument configuration settings are password protected. Accuracy 0.25% of F. S. Compact size & easy maintenance. Reliable & cost effective system. Software calibration.

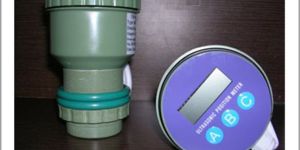

Ultrasonic Level Indicating Transmitter 2-Wire - MS LL 18   INTRODUCTION 2-Wire display system with Ultrasonic Level Transmitter is developed by MicroSet with advantages of a variety of similar products, using the latest energy-saving components, the whole current is less than 3.5 mA, it can work in the 9~32 V dc power supply voltage reliably. With LCD display for setting the scene easily. APPLICATION Water and Sewage Treatment, Pumping Stations, Collection Wells, Chemical and Biological Reaction Tanks, Sedimentation Tanks, etc. Power, Mining, Slurry pool, Coal Slurry Ponds, Water Treatment, etc. Specification Performance Indicators     Range : 0~5 m Blind Spot :

Table Top pH Meter Microprocessor based design MS pH 644   MicroSet pH meter is highly precision Instrument using latest art of technology. It Displays three function constantly on 16x 2 LCD i.e. Temp., pH & mill volt on selection. It has the facility for Auto Temp. compensation as well as manually using keys. In mVs mode the instrument can be used for Redox Potential measurement. Automatic standardization using buffers & keys is made by selecting 7.00,4.00 & 9.20 pH value. Buffers / Electrode slope error are indicated on screen.Optinal printer interface is available for pH & Temp.The Instrument is housed in a very compact ABS plastic cabinet with attractive finish & light weight for handling.pH & Temp. Sensor if open or contact problem is displayed as “OPEN” Specifications     pH Mode mV Mode Range : 0 to 14 pH 0 to ±1900 mV Resolution : 0.01 pH ±1 mV Accuracy : 0.01 pH ±1 digit 1 mV ±1 digit Buffer calibration : 7.00, 4.00, 9.20 pH   Temp. Range : 0 to 100°C with continuous display   Resolution : 0.1°C   Temp.Compensation : Automatic & Manual   Display : 16 characters x 2 Line LCD Backlit   Polarity & Decimal : Automatic   Supply : 230 VAC   Dimensions : 180 mm x 130 mm   Weight : 750 gm

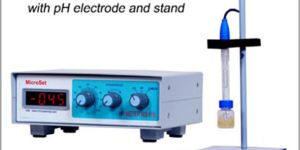

table top ph meter ms ph 616 it is a high-precision ph meter for continuous 0-14 ph reading & milivolts. The ph meter is easy to operate as it has the least number of controls. Check facility saves time from every day buffer standardization and hence is most suitable for quick analysis. It is a very sleek attractive finished instrument. specification     ph mode mv mode range : 0.00 to 14.00 ph 0 to ±1999 mv resolution : 0.01 ph ± 1 mv accuracy : 0.01 ph ± 1 digit 1 mv ± 1 digit input impedance : 1012ohms   temperature control : 0 to 100°c manual   display : 3.5 digit led display with auto polarity & decimal   calibration : two buffers calibration (manually) 7ph & 4ph or 9.2ph   power requirement : 230v a.c ± 10%, 50hz single phase   environment : 5 to 50°c   dimensions : 205 x 65 x 130mm ( aluminum powder coated cabinet )   weight : 1.5kgs (approx) including accessories

Accuracy : 0.01 PH ± 1 Digit

Top Performance in a Sleek, Lightweight Design The MS 9535 portable pH meter is one of the most popular pH meters on the market. By utilizing an advanced, custom microprocessor, MS 9535 is able to perform pH, ORP and temperature measurements with high accuracy and fast response. The mV measurements auto-range and change resolution from 0.1 to 1 mV when readings reach ±699.9 mV. pH slope changes due to temperature variation are automatically or manually compensated for, from -20 to 120°C (-4.0 to 248.0°F). The meter has 3 standard buffer values (pH 4.01, 7.01, 10.01), and automatic buffer recognition to avoid errors during calibration. When powered on, the percentage of remaining battery life is indicated on the display pannel. The HOLD function can freeze the reading on the display to be manually recorded at a more convenient time. Choose from °C or °F. Users can enable ordisable the Auto-off feature, the acousticsignal and the back-lit display. In addition, MS 9535 indicates the buffer values used for the most recent calibration. Features : Small form and lightweight Battery life displayed on LCD Auto shut-off   Specifications : Range: pH : -2.00 to 16.00 pH mV : ±699.9 mV; ±1999 mV Temperature : -20.0 to 120.0°C / -4.0 to 248.0°F Resolution pH : 0.01 mV : 0.1 mV; 1 mV Temperature : 0.1°C / 0.1°F Accuracy (@20°C) pH : ±0.01 mV : ±0.2 mV; ±1 mV Temperature : ±0.4°C / ±0.8°F pH Calibration : automatic, 1 or 2 point with 3 memorized buffer values (pH 4.01, 7.01, 10.01) Offset Calibration : ±1 pH Slope Calibration : 75 to 110% Input Impedance : 1012 Ohm Temperature Comp. : automatic, -20 to 120°C (-4 to 248°F) or manual without temperature probe pH Electrode : MS 2341B, double junction, gel filled PEI body, BNC connector, 1 m cable (included) Temperature Probe : MS 8773 with 1 m cable (included) Battery Type / Life : 9V / approx. 150 hours of continuous use; auto-off after 20 minutes of non-use or disabled (user- selectable) Environment : 0 to 50°C (32 to 122°F); RH max 100% Dimensions / Weight : 164 x 76 x 45 mm (6.5 x 3.0 x 1.8’’) / 180 g (6.3 oz.) ORDERING INFORMATION MS 9535 is supplied with, pH Sensor, temperature probe, battery, and instructions.

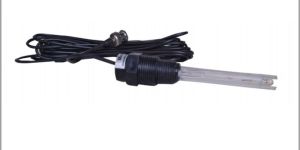

Range:0~14 pH, Body:Epoxy with Glass Bulb, Type :Combination, Pressure:5 Bar,Junction:Double Junction Ceramic, Process Connection:½” & ¾” BSP Male. Mounting :Pipeline mounting. Cable Length:5 Meter with BNC connector.

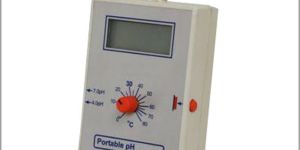

Portable pH Meter - MS pH 816   MS pH 816 is a compact Handy highly precision pH meter for continuous 0-14 pH reading & is easy to operate as it is having least number of controls. Auto Bat. Low Indication is displayed as BAT when battery voltage falls to 7.6 volts dc.   Specification Range : 0.00 to 14.00 pH Resolution : 0.01 pH Accuracy : 0.05 pH ± 1 digit Input Impedance : 5 x 10 11 Ohms Temperature Control : 0 - 80°c Manual Display : 3.5 digit LCD display Calibration : Two buffers calibration (manually) 7pH & 4pH Or 9.2pH Power Requirement : 9V dry cell flat pack Battery Environment : 5 to 50c Dimension : 78x105x40mm ( ABS Cabinet ) Weight : 500gms (Approx) Note : Due to Continues improvement in Product the Specifications may vary

Portable Dissolved Oxygen Meter - MS DO 6610 Specification Range : 0 to 20 mg/L ATC : Yes Resolution : 0.1 mg/L Size : Pocket Size Display : LCD 13 mm Size : 131 x 70 x 25 mm

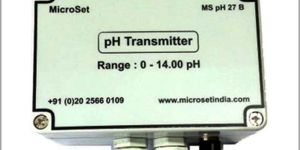

These reliable transmitters provide a simple solution for monitoring or as part of an advanced control solution. The MicroSet pH transmitter offers a simple yet effective solution to your fluid monitoring needs and can also be used as a component within a more advanced system.   Specification Range : 0.00 to 14.00 pH Input : pH Combination Sensor with BNC Connector Female Accuracy : ±0.05 pH Calibration : 2 points Manual ( 4.00 & 7.00 pH Buffers) Output : 4 to 20 mA DC Isolated Load : 600 Ohm Mounting : Wall Mounted Enclosure : ABS Weatherproof IP 65 Dimensions : 80 x 120 x 55 mm Glands : PVC PG 9 – 02 Nos. Power : 240 VAC Note : Due Continues improvement in Product the Specifications may vary

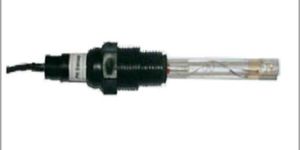

Range:0~14 pH, Body: Epoxy with Glass Bulb, Type : Combination, Sensor Output : mV, Pressure : 5 Bar, Junction : Double Junction Ceramic, Process Connection

pH Sensor Housing For Fermentors Model 330   SPECIFICATION Body : S 316 L Pressure : 6 Bar Temperature : 0~150°C Process Connection : DN 25 ( Ingold)

Technical Specification MOC : HDPE Temp Range : 0-80°C Process Connection for Sensor : ½” BSP Female Process Connection for Sensor : ¼” BSP Female

It is an economical meter for online measurement of specific TDS of solution using a TDS cell for R.O plant or D.M plant applications. It enables to measure the TDS without manual balancing and specific TDS is read directly on a digital panel. This is available in panel mounting facility in compact size.

pH Electrode Sensor MS pH 07   Specification Range : 0 to 14pH Body : Glass Type : Combination Sensor Output : mV (± 59.4 mV/pH change at 25°C) Pressure : 2 Bar Temperature : 0~100°C Junction : Ceramic Cable Length : 1 Meter with BNC connector

Multi parameter display Simultaneously shows – pH, Temp, mV & Relay Status on Single screen, Advanced Embedded Microcontroller based design, Isolated 4 to 20 mA retransmission output, Two Programmable isolated relay outputs.

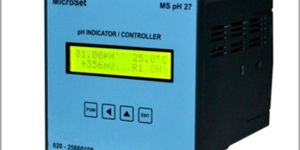

pH Controller MS pH 27 Panel Mounted   FEATURE : Advanced Embedded Microcontroller based design Easy front key calibration Multi parameter display Simultaneously shows – pH, Temp, mV & Relay Status on Single screen Two Programmable isolated relay outputs Isolated 4 to 20 mA retransmission output Sensor Slope display   Specification Range : 0 -14 pH Accuracy : ±0.01 pH Display : 2 x 16 LCD Multi parameter Display Backlit Calibration : Three Point Keypad Output : Two isolated relays Retransmission Output : Isolated 4 - 20 mA Temperature Compensation : Auto / Man Selectable (PT-100) Repeatability : ± 1 LSB Power Supply : 220-240 VAC, 50/60 Hz Enclosure : ABS Mounting : Panel Mounted Dimensions : 96 x 96 x 120 mm Note : Due to Continues improvement in Product the Specifications may vary

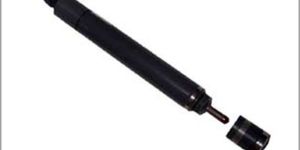

Ozone Amperometric Sensors MS OZ 2   Amperometirc Dual Electrode System with Replacement Membranes. Gold Cathode, Silver/Silver Halogenid Anode. Temperature Range 45ºC SPECIFICATION Type : 2 pole Sensor, Gold Cathode, Silver/Silver Halogenid Anode Range : 0.00 – 2.00 ppm Resolution : 0.01 ppm pH Range : 2 – 11 pH Temp Range : 0-45°C Output : 4-20 mA No of Electrodes : 2 Membrane Cap : M20

Oxygen Indicating Analyser flame proof / weatherproof 4-20mA output Specification Display : LED Range : 0 to 21% Resolution : 0.1% Accuracy : 2% of FS Response Time : 14 ± 2 Seconds Linearity : 0.21 ± 0.02 Operating Temperature : 5 to 40°C Operating Pressure : 811hPa to 1216 hPa Operating Humidity Range : 10 to 90% RH ( Non condensation) Output : 4 to 20 mA Supply : 24 VDC Enclosure : Flameproof ( Gas Group IIA / IIB Mounting : Wall Mounted

Oxygen Indicating Analyser flame proof weatherproof 4-20mA output. Display:LED, Operating Humidity Range :10 to 90% RH ( Non condensation), Enclosure:Flameproof ( Gas Group IIA IIB, Mounting:Wall Mounted. Operating Pressure:811hPa to 1216 hPa.

Using the latest technology, these products are highly essential for various automation and Instrumentation operations and processes and are widely used by our clients. Our state-of-the-art manufacturing facility is equipped with the latest machines and equipment and thus, we are able to provide our clients with a range of advanced and durable products that address their automation and instrumentation product requirements and specifications with performance assurance.
