MIRACLE POWER Talawade, Pune, Maharashtra

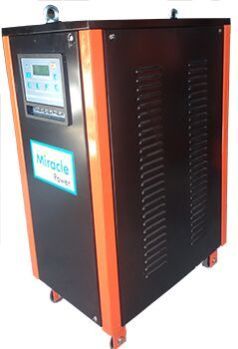

  The static stabilizer offers a reasonable improvement on slow servo controlled stabilizer as well as other static tap changing stabilizers. This technology does not cause di/dt problems as it does not switch the power path. The basic topology is with buck-boost transformer with high primary to secondary ratio for voltage correction of ± 25%. The control voltage is imposed on the primary of this buck-boost transformer. The voltage regulation with help of buck and boost topology is achieved electronically without the step changes in voltage that occur when the system regulates. This task is accomplished through a feedback and a control system implemented by using a microcontroller. The significant voltage fluctuations that occur on the electrical network simulates the premature ageing of the critical machines and even damages them in most cases. The solution to this type of problem is the use of voltage stabilizers which guarantee that the connected loads will always operate within safe limits at a better efficiency thereby avoiding energy loss.

The Significant voltage fluctuations that occur on the electrical network simulates the premature ageing of the critical machines and even damages them in most cases. The solution to this type of problem is the use of voltage stabilizers which guarantee that the connected loads will always operate within safe limits that will not damage them and the regulated voltage enables the machines to operate at a better efficiency thereby avoiding energy loss.

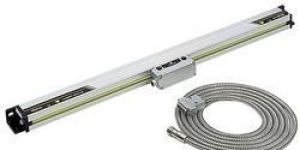

We can repair your linear scale back to working condition.  We thoroughly clean each unit, inspect and replace lipseals, check functioning with our software. We repair: Heidenhain ​Anilam Mitutoyo Sony A highly functioning linear scale is very important in your process to produce the products that you are known for.  Give us a call and we can help keep your equipment on track.

ADVANTAGES Isolate primary winding and secondary windings. Provides isolated neutral. It protects micro processor based equipment from dangerous noises and reduces drive failures. It can be useful where machine earth can’t be used. By Providing Delta star isolation transformer, where there is problem of earth or neutral in the input side is taken care for the safety operation of the load by this Isolation transformer. It arrest the noises of high frequency and noises generated by the usage of high current MCB,ACB, Induction furnace or other electromagnetic noises.

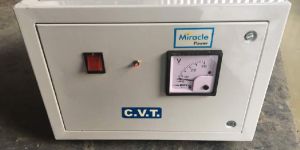

The very best power protection comes from a special type of transformer known as a Constant Voltage Transformer ( CVT). Providing unparalleled reliability and conditioning performance, spikes and electrical noise are neutralised with attenuation as high as 75dB.Constant Voltage transformer or CVT use a tank circuit composed of a high-voltage resonant winding and a capacitor to produce a nearly constant average output with a varying input. The ferroresonant approach is attractive due to its lack of active components, relying on the square loop saturation characteristics of the tank circuit to absorb variations in average input voltage.

Country of Origin : India

Type : Constant Voltage Transformer

Mounting Type : Ground Mounted

Corrosion Resistance : Yes

Operating Type : Semi Automatic

Secondary Voltage : 220 V

Cooling Type : Air Cooled

Material : Copper

Shape : Rectangle

Certification : CE Certified

Finishing : Coated

Power : 10 KW

Driven Type : Electric

Phase : Single Phase

Warranty : 1 Year

Packaging Type : Carton Box

Speciality : Reliable

Usage : Industrial

Based on advanced technology, our Three Phase Air Cooled Voltage Stabilizers are of impeccable quality. Our company’s name figures in the list of reliable Manufacturers and Suppliers of Three Phase Air Cooled Voltage Stabilizer in Pune. The entire range of the Three Phase Air Cooled Voltage Stabilizer is quality tested on various parameters by our experts before the final dispatch. Bulk orders of the Air Cooled Voltage Stabilizers are catered by us.
