Molded Case Circuit Breakers Dealers in Pune

We deals all types electrical control accseries schnieder,l&t,abb,siemens,legrand,etc. Skkt,polybab,finolex.

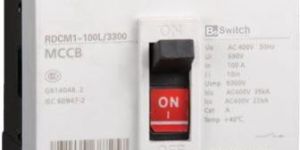

Molded case circuit breakers are a type of electrical protection device that is commonly used when load currents exceed the capabilities of miniature circuit breakers. They are also used in applications of any current rating that require adjustable trip settings, which are not available in plug-in circuit breakers and MCBs.BeSwitch molded case circuit breakers are used to provide circuit protection in alternative energy, commercial, industrial, mining, and military applications, where they protect against overloads and short circuits in conductors. These circuit breakers are applied in panelboards, switchboards, motor control centers, control panels, combination starters, individual enclosures, and bus duct plug-in units.

• Two Frame Sizes up to 200A    • 3P up to 200A    • 4P up to 100A • Easypact MCCBs may be mounted  at any orientation without derating • Easypact MCCBs can be connected either from top or the bottom • Easypact Busbar    • Whole bus bar system is tested for 30KA up to 250A &  40KA up to 400 & 630A for 1s    • Main Incomer 250 / 400 /630A    • Outgoing 100A 3P MCCBs   Functions & Characteristics : The EasyPact CVS range is the Designed to meet the requirements of the majority of the applications, the new EasyPact CVS circuit breakers deliver a level of performance and cost-saving functionality that is unusual in their price range. Features : Rated current from 100 to 800 A Breaking capacity from 25 to 50 kA at 400/415 V 3- and 4-pole versions 3 frame sizes (100-250 A, 400-630 A and 800 A) Thermal-magnetic and electronic protection available for the entire range Extended, adjustable thermal protection from 0,7 to 1 times (TMD) or 0,5 to 1 times (electronic) the rating of the trip unit Common accessories and auxiliaries with other Schneider Electric MCCB offers (up to 630A) Suitable for isolation Earth-leakage protection achieved by installing a Vigi module or a Vigirex relay Earth Fault Protection through GFP modules to protect electrical distribution network against fireCompliance with IEC 60947-2 Certifications: GOST, CCC, CCS

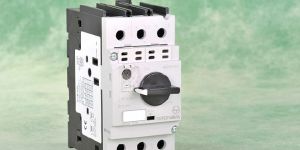

L&T’s Supernova series motor protection circuit breaker (MPCB) integrates functions of a MCCB and thermal overload relay into a highly compact single unit. Equipped with a wide range current adjustment dial (with maximum/minimum ratio of 1.4 to 1.6), the MPCB easily adjusts to match the rated current of the motor, for optimum protection. MPCB provides protection against short circuit & overload. Also the compact size of the MPCB, including overload relay functions, enables a smaller installation area with less wiring space, for a reduction in panel size. Features: Compactness High Breaking Capacity Short circuit protective coordination Reduction in wiring work Ecological design standards Standard accessories for all frames of MPCB Wide range of accessories which suits your requirements IP20 terminal cover prevents accidental contact to electrically charged part Accessories: Auxiliary contact blocks Alarm contact blocks Auxiliary and alarm contact blocks Short-circuit alarm contact block Shunt trip devices Undervoltage trip devices External operating handles

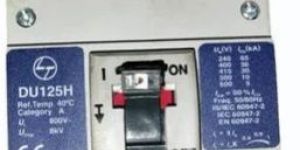

We offer wide range of MCCBs which are called as "Molded Case Circuit Breakers". These are used to protecting damage of Costly Equipment in case of excess current flowing through the circuit. These are used in heavy duty application where higher breaking capacity is required such as 16KA, 35KA etc & higher Amp rating is required such as 160A, 200A, 400A etc. The normal running range is 63A to 800Amp x 3/4 Pole. MPCBs which are called as "Motor Protection Circuit Breaker" are used for tripping the circuit when leakage current starts flowing or in case of Earth fault. These are used especially in rooms where people are working, to avoid getting shocked. The normal running range is 0.6A to 10Amp.

pneumatic systems, Circuit Breakers

Ac Drives, starters, Switchgears, Temperature Controllers, Timers, Wires

Moulded Case Circuit Breakers, Terminal Blocks, Enclosures, Limit Switches

Circuit Breakers, Distribution Boards, RCCB

Cables, Solvents, panel board, digital multi meters, Wires

contacter relays, Switch Gears, Wire

merlin gerin mccb, tibcon capacitor, industrial tibcon capacitor
