Mooney Viscometer Dealers in Pune (3 products available)

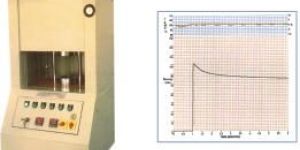

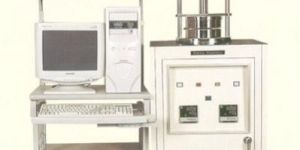

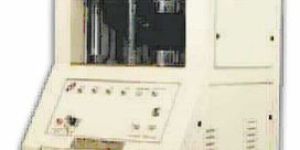

It is an instrument consisting of a motor driven disk within a die cavity formed by two dies maintained at specified conditions of temperature and die closure force. It measures the effect of temperature and time on viscosity of rubber or compound. Mooney Measuring range 0 to 200MU, Pre Heat Time 0-60Sec, Rotor size large and small, Rotor speed 2.0 +/- 0.2 rpm, Synchronous geared motor, Temperature PT 100 Platinum resistors Microprocessor controlled. Calibrated rage 5 Deg to 200 Deg, Independent upper and lower platen control, Temp. Control Accuracy +/-0.5 C PID Temp Control, Torque transducer reaction torque sensor, Computer Controlled testing, Directly on line display on VGA monitor. Req. Air Pressure 60PSI Minimum operating pressure controlled by external regulator with gauge.
