Mounting Press Dealers in Pune

• Mould cylinder Diameter: 1â��
• Mould heating: By band heater of 1000 watts, Thermocouple
• Mould cooling arrangement: By water circulation around band heater assembly, operated through solenoid valve
• Control Panel: Temp. Controller to feed exact required current, Avoiding the temperature overshooting leading to heat treating of the sample, Setting of Temperature
• Standard Accessories: Powder pouring spoon, Bakelite Powder, Required Spanners
• Power Supply: 230 V AC 50 Hz

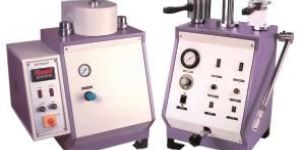

Model: CMP-P Automatic Specimen Mounting press is pneaumatically operated user friendly, automatically operated with rigid construction, with interchangeable mould capability and complete enclosed body. QUICK OVERVIEW:     Optional Spares and Consumables Mould cylinder 1", 1.1/4", 1.1/2, 2”, Band heater element, Bakelite moulding powder, Mould release spray

• Voltage: 220 - 380 V
• Automation Grade: Automatic
• Brand: Vision Enterprises
• Material: Mild Steel
• Phase: Single Phase
• Mould Diameter: 45 mm
• Temperature Range: 0 - 200 Degree Celsius
• Frequency: 50 - 60 Hz
• Usage: Industrial grinding, polishing
• Pressure: 300 Bar

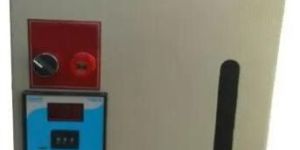

Mounting press for metallurgical specimen mounting. Models – manual, semiautomatic & fully automatic.

We are offering metallurgical mounting press. After cutting the specimen, the next step is mounting. The aim of mounting is to handle small or odd shaped specimens and to protect fragile materials, thin layers or coating during preparation as well as to provide good edge retention. Mounting produces specimens with uniform size so that it is easier to handle in automatic holders for further preparation steps. Basically, two methods are available: hot mounting, cold mounting in hot mounting, the specimen is mounted under heat and pressure with a hot mounting press. Cold mounting is preferred for samples which are sensitive to damage from heat and pressure (like coatings, pcb, etc.) cold mounting resins are easy to use and require mixing which is then poured into a mould and allowed to set.

• Country of Origin: India
• Application: Laboratory
• Condition: New
• Warranty: 1year

Just Press a button and get the mould. Dual mould capability Pneumatically operated. Reliable microcontroller based technology offering complete automation like pressing, heating, holding, cooling ( water circulation ). Transparent mould capability enabling seeing identification mark. Easy mould interchangeability Fast mould production. Moulds produced - 1 " , 1 1/4 " , 1 1/2 ". Heater - 1000 Watts Cooling - Automatic water circulation. Air pressure required - 150 PSI Electrical supply - Single phase.
